Поз.
Артикул
Описание
5

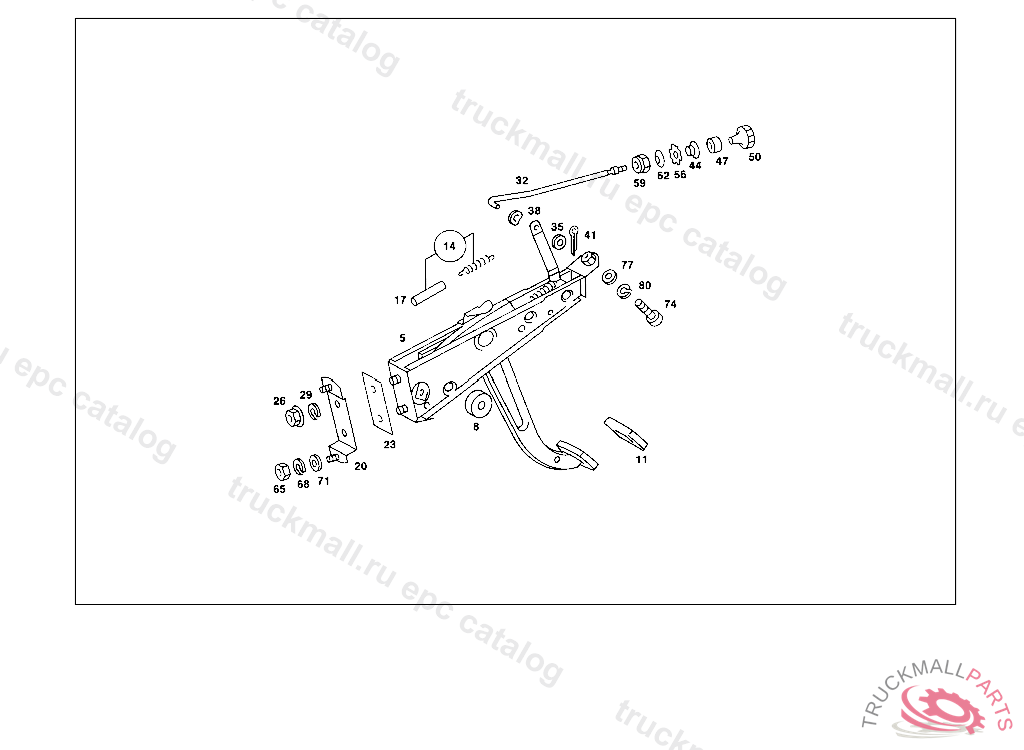

PARKING BRAKE
8
DAMPING RING
11
PAD
14
SPRING
17
HOSE25 MM, ORDER BY THE METER
20
SHACKLE
23
GASKET FOOT OPERATED PARKING BRAKE TO FIRE WALL
26
NUT CLAMP TO BRACKET
26
NUT , Replaced By: N913012006001
26
NUT , Replaced By: N913019006000
29
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
32
ROD
35
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
COTTER PIN
44
GUIDE , FROM CHASSIS: 010 106042 110 279860
47
DAMPING RING
50
KNOB , FROM CHASSIS: 023 009981 072 004629 073 001470
62
LOCK
65
NUT CYLINDER TO BRACKET TO0002902112
65
NUT BATTERY MOUNTING
68
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
71
RUBBER RING SIGNAL LAMP TO ROOF
74
SCREW BEARING BRACKET TO TRANSMISSION
77
WASHER COVER PLATE TO FIRE WALL, 042 #AF001818 ALSO INSTALLED ON 001813, 001816
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
