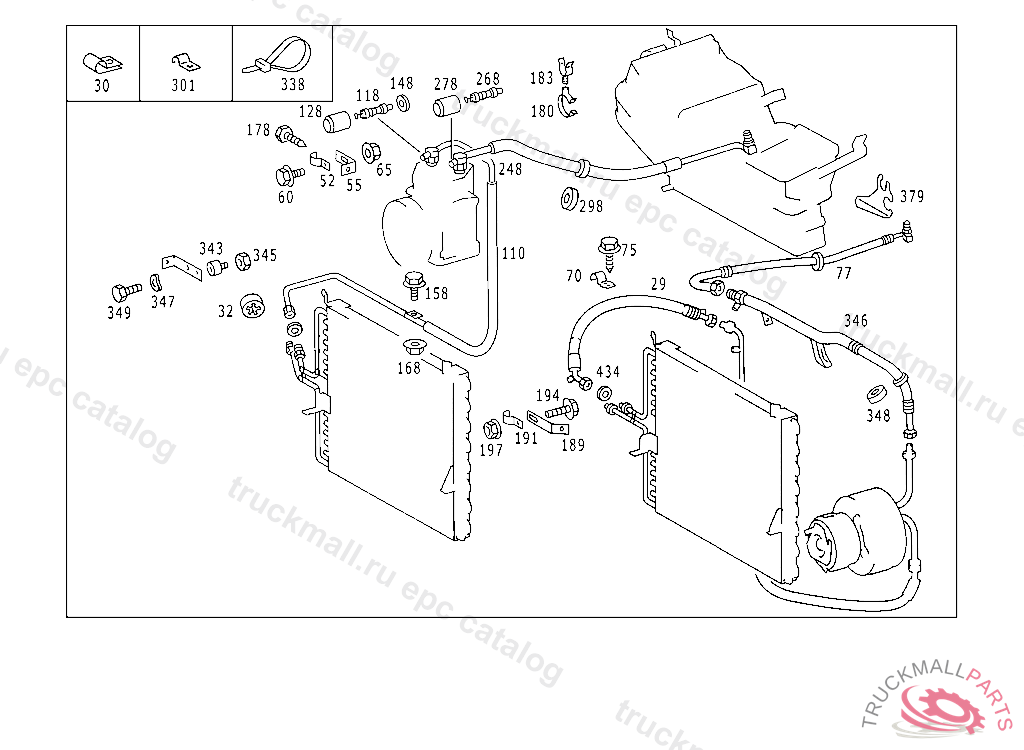

Поз.
Артикул
Описание
29
PIPE LINE FROM COMPRESSOR TO CONDENSER
30
CLAMP
32
RUBBER RING
52
CLAMP TO MOUNT MAIN CABLE HARNESS
55
BRACKET
60
SCREW
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
70
CLAMP COMPRESSOR-TO-CONDENSER REFRIGERANT LINE TO SIDE MEMBER
75
SHEET METAL SCREW
77
PIPE LINE FROM EXPANSION VALVE TO FUEL COOLER
77
PIPE LINE FROM EXPANSION VALVE TO FUEL COOLER
110
PIPE LINE FROM COMPRESSOR TO CONDENSER
118
VALVE INSERT , NOT USED
118
VALVE , ONLY FOR 123.220,223,243,283, FOR 123.020,023,043,083 SEE SA.56180
128
CAP (PARTS KIT),CAP
148
SEAL RING HOSE TO RESERVOIR 10.6 MM
158
HEXAGON HEAD BOLT
168
NUT CLAMP TO BRACKET
178
SHEET METAL SCREW BRACKET TO CAB FLOOR
180
CLAMP HOSE TO HOSE 20 MM
183
CLAMP , Replaced By: A0005465143
189
BRACKET FROM COMPRESSOR TO CONDENSER
191
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
194
HEXAGON HEAD BOLT
197
NUT CLAMP TO BRACKET
248
PIPE LINE EXPANSION-VALVE-TO-COMPRESSOR REFRIGERANT LINE
248
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
248
PIPE LINE FROM FUEL COOLER TO COMPRESSOR
248
PIPE LINE FROM EXPANSION VALVE TO FUEL COOLER
268
VALVE INSERT , NOT USED
278
CAP (PARTS KIT),CAP
298
RUBBER RING
301
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
338
LOOM TIE TO MOUNT PLASTIC PIPING
343
BUFFER FROM EXPANSION VALVE TO COMPRESSOR
345
NUT L.H. THREAD
346
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
347
SPRING WASHER LICENSE PLATE TO BRACKET
348
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
349
SCREW CONNECTOR TO CAB M6X8
379
BRACKET AT LIQUID TANK, UP TO CHASSIS123.130,132 257362 123.190 023925 123.193 006028
434
RUBBER RING EXPANSION-VALVE-TO-COMPRESSOR REFRIGERANT LINE
