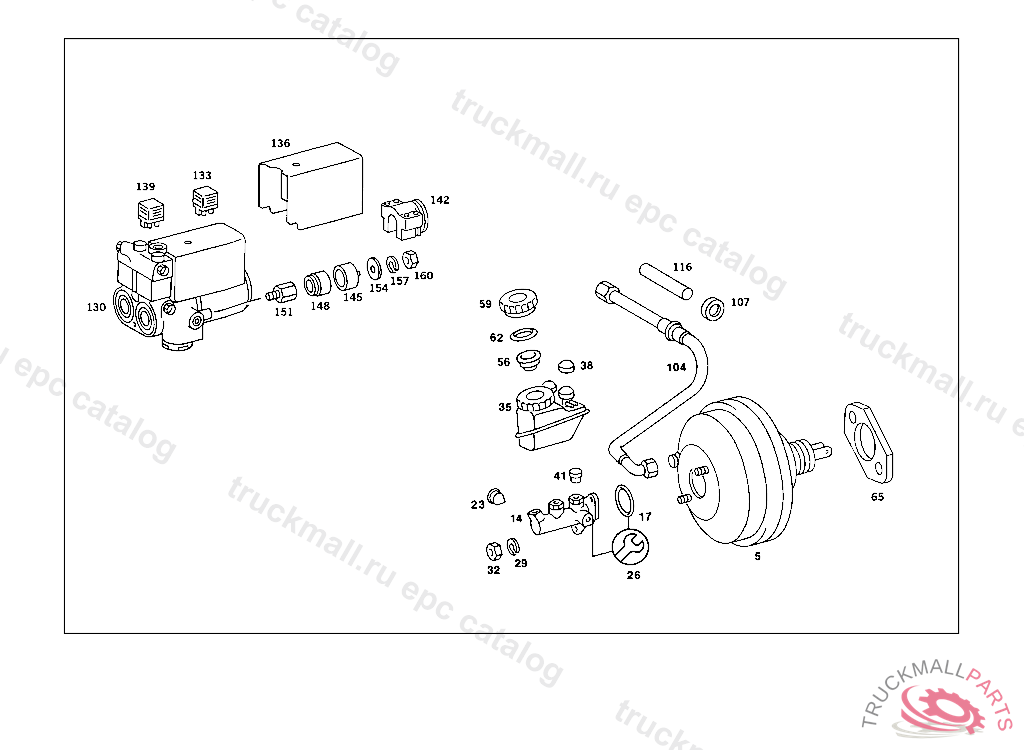

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY
14
BRAKE MASTER CYLINDER , DELIVER ADDITIONALLY: SCREW PLUG 126 997 02 32
17
SEAL RING
23
SCREW PLUG BRAKE MASTER CYLINDER
26
REPAIR KIT BRAKE MASTER CYLINDER
29
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
32
NUT
35
RESERVOIR BRAKE MASTER CYLINDER
38
PROTECTIVE CAPGIRLING
38
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
41
BUSHING
56
STRAINER
59
FILLER CAP BUTTRESS THREAD
62
SEAL RINGBENDIX
62
SEAL RING
65
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
104
LINE ,026 001628
104
LINE ,026 001628
107
RUBBER RING
130
BRAKE PRESSURE REGULATOR (HYDRAULIC UNIT)
133
RELAY (ENGINE RELAY) TO 001 431 80 12
133
RELAY (ENGINE RELAY)
136
PROTECTIVE CAPTO 001 431 80 12
136
PROTECTIVE CAP TO 001 431 66 12,001 431 67 12, 001 431 68 12
139
RELAY , 123.003,028 105805 123.026 106004 123.030 032306 123.033 090757 123.053 023337 123.086 007202 123.093 009553 123.120 262872 123.102,103,125 255626 123.123 254722 123.105,132 240923 123.130 240457 123.183 016222 123.190 022642 123.200 040194 123.220 031448 123.223 040309 123.243 006912 123.280 001558 123.283 005502
139
RELAY SOLENOID VALVE TO 001 431 80 12
142
CLAMPTO 001 431 80 12
142
CLAMPTO 001 431 68 12
145
BRACKET HYDRAULIC UNIT TO BRACKET
148
RUBBER BUFFER BRAKE POWER REGULATOR TO BRACKET
151
THREADED UNION BRAKE POWER REGULATOR TO BRACKET
154
WASHER COMPRESSED AIR LINE TO BRACKET
157
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
160
NUT BATTERY MOUNTING
