Поз.
Артикул
Описание

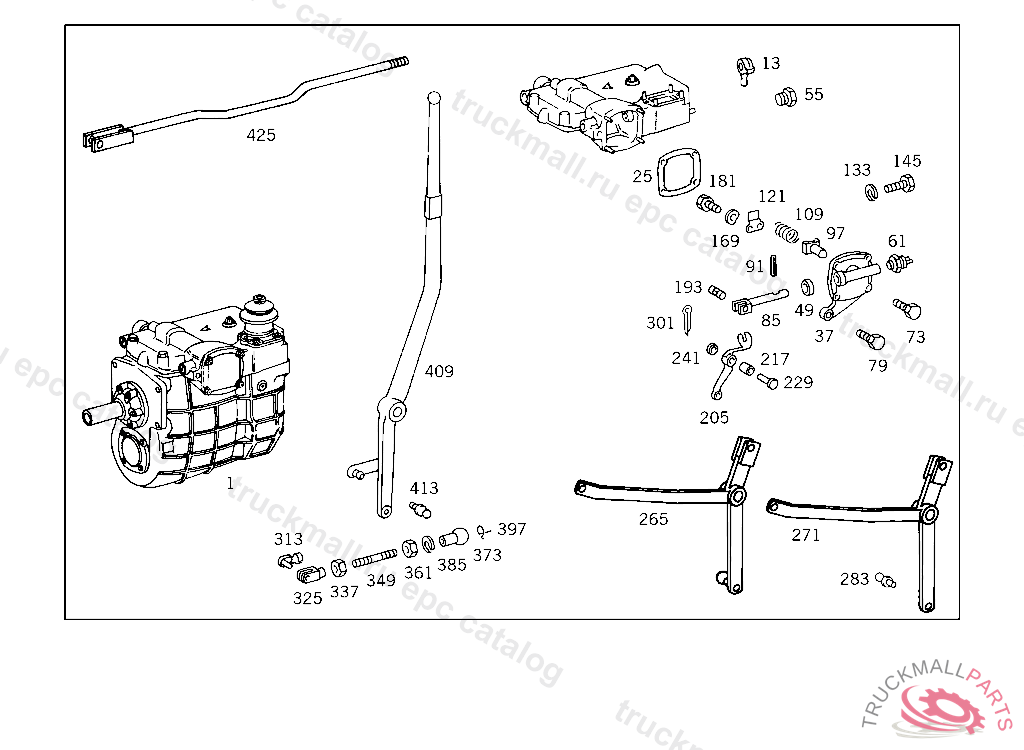

1
TRANSMISSION , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A3522600900
1
TRANSMISSION , Replaced By: A3602601200
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3602601200
1
TRANSMISSION , Replaced By: A3582600500
1
TRANSMISSION ,4 473926 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
1
TRANSMISSION ,4 473927
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3182600300
1
TRANSMISSION , Replaced By: A3532600500
1
TRANSMISSION ,4 473927 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3522609200
1
TRANSMISSION , Replaced By: A3522609900
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3522609900
1
TRANSMISSION , Replaced By: A3582605800
1
TRANSMISSION ,4 473926
1
TRANSMISSION , Replaced By: A3802603600
1
TRANSMISSION ,4 473927
1
TRANSMISSION , Replaced By: A3582606500
1
TRANSMISSION , Replaced By: A3582606500
1
TRANSMISSION ,4 473926
1
TRANSMISSION , Replaced By: A3802603700
1
TRANSMISSION ,4 473927
1
TRANSMISSION , Replaced By: A3542600800
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3522605500
1
TRANSMISSION
1
TRANSMISSION , Replaced By: A3522607300
1
TRANSMISSION , Replaced By: A3522600001
1
TRANSMISSION , Replaced By: A3582606600
1
TRANSMISSION , Replaced By: A3582606600
13
SELECTOR LEVER
13
SELECTOR LEVER
13
SELECTOR LEVER
13
SELECTOR LEVER
13
SELECTOR LEVER , WITH G3/50-5/8,5 TRANSMISSION
25
GASKET
25
GASKET , Replaced By: A3522610079
25
GASKET
37
COVER , WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898, Replaced By: A3602610033, +001A3602640086, +002N000137008207, +002N000933008014
37
COVER , WITH G32 TRANSMISSION,FROM TRANSMISSION 393899,WITH G3/50-5/8,5 TRANSMISSION FROM TRANSMISSION 000001
37
COVER , WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898, Replaced By: A3602610033, +001A3602640086, +002N000137008207, +002N000933008014
49
RADIAL SEAL RING SHIFTING ROD
55
SCREW PLUG
61
SWITCH SOLENOID VALVE
73
SCREW BRACKET TO CROSS CONNECTION STRUT
73
SCREW , Replaced By: N304017008034
79
SCREW CAB FLOOR COVERING M 6X25
85
SHIFTING ROD SIDE COVER TO TRANSMISSION
85
SHIFTING ROD SIDE COVER TO TRANSMISSION
91
CYLINDRICAL PIN
97
PAWL
97
PAWL
109
SPRING
121
STOP RING (DETENT PLATE), WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898
121
STOP RING (DETENT PLATE), WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898
121
STOP RING (DETENT PLATE)
121
STOP RING (DETENT PLATE), WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898
121
STOP RING (DETENT PLATE), WITH G32 TRANSMISSION,UP TO TRANSMISSION 393898
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
133
LOCK WASHER
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
145
SCREW , Replaced By: N304017008021
145
SCREW PIPE CLAMP
145
SCREW PIPE CLAMP
145
SCREW
169
SPRING WASHER , Replaced By: N000137008212
169
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
181
SCREW , Replaced By: N304017008016
181
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
193
PIN
193
PIN
205
LEVER OPERATING ROD
205
LEVER OPERATING ROD
205
LEVER ACTUATING PART TO BEARING
205
LEVER ACTUATING PART TO BEARING
205
LEVER OPERATING ROD
205
LEVER ACTUATING PART TO BEARING
217
BUSHING ACTUATING PART TO BEARING
229
PIN ACTUATING PART TO BEARING
241
WASHER , Replaced By: N000433013010
241
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
265
LEVER , Replaced By: A3182602037, +001N071803013207
265
LEVER GEARSHIFT MECHANISM,4 611166
265
LEVER GEARSHIFT MECHANISM
265
LEVER GEARSHIFT MECHANISM,4 611166
271
LEVER GEARSHIFT MECHANISM
283
BALL PIVOT
301
COTTER PIN CYLINDER TO BRACKET
313
PINM 8 X 16
325
YOKE OPERATING ROD
337
NUT
349
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
349
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
361
NUT
373
BALL SOCKET ROD TO BALL PIVOT
385
SNAP RING
385
SNAP RING
397
SECURING CLIP. CIRCLIP
409
SHIFT LEVER P.T.O.
409
SHIFT LEVER P.T.O.
409
SHIFT LEVER , Replaced By: A3222603039, +001A3222600662
413
BALL PIVOT
425
TRANSMISSION ,4 473926 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
LEVER SHIFTING TRANSFER,LEFT,4 611167
999
TRANSMISSION CASE COVER
999
TRANSMISSION
999
LEVER GEARSHIFT MECHANISM
999
COVER
999
PIN LEVER TO LEVER
999
SELECTOR LEVER
999
LEVER GEARSHIFT MECHANISM
999
TRANSMISSION
999
TRANSMISSION
999
COTTER PIN STRAP TO SUPPORT
999
WASHER , Replaced By: N000433010510
999
WASHER VIBRATION ABSORBER TO BRACKET
