Поз.
Артикул
Описание

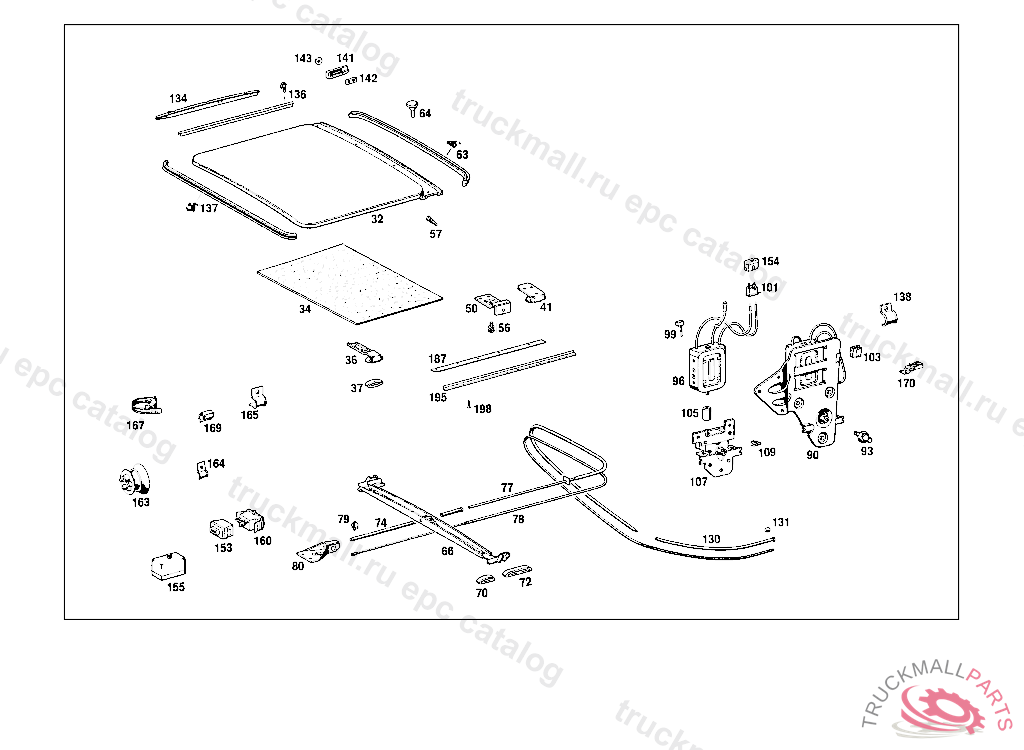

32
SLIDING ROOF PLATE
34
FOAM PLASTICS FRONT ROOF RAIL
36
ANGLE FRONT
37
SLIDING JAW , Replaced By: A1157800083
41
ANGLE REAR
50
ANGLE
56
SCREW
57
SCREW
63
SEAL
64
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159870240
66
BRIDGE
66
TUBE , Replaced By: A1087801035
66
TUBE , Replaced By: A1087801035
66
BRIDGE , Replaced By: A1087801035
70
SLIDING JAW , Replaced By: A1157800083
70
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
72
SLIDING JAW
74
TUBE
74
TUBE , Replaced By: A1087800217
77
TUBE
78
CABLE
79
CLIP PULL TO SLIDING ROOF PLATE,FRONT
80
PLATE
90
BRACKET , UP TO CHASSIS: 108.016 10/50,12/52 070753 108.016 20/60,22/62 067794 108.018 10/50,12/52 077372 108.018 20/60,22/62 074243
93
LINK EMERGENCY CRANK, UP TO CHASSIS126.021 004328 022,023 014559 032,033 006153 036,037 005335 120 000195
96
ELECTRIC MOTOR
99
CARBON BRUSH SET
101
PLUG HOUSING
101
PLUG , Replaced By: A0095454028, +002A0015453826, +001A0095454128
103
CLIP
105
CONNECTOR
107
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
109
CLIP
130
TUBE
131
CAP
134
MOUNTING RAIL RIGHT, UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441
134
RAIL , Replaced By: A1087800261
136
SEAL480 MM
137
SEAL BOTTOM FRAME,FRONT
138
CLAMP , Replaced By: A3449957120
141
LOCK RIGHT
142
PLATE
143
SEAL RING
153
CONNECTOR 4-POLE
154
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
154
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
155
FUSE BOX , Replaced By: A0005456301
155
FUSE BOX
160
SWITCH
163
GROMMET , Replaced By: A0089971781
163
GROMMET
164
CLAMP FLEXIBLE SHAFT
164
CLAMP
165
CLAMP , 000,001,010 FROM CHASSIS 130558, 100,101,110 FROM CHASSIS 225648
167
LOOM TIE
167
LOOM TIE , Replaced By: A1149970590
167
LOOM TIE , Replaced By: A1149970290
169
CLIP CABLE HARNESS TO ROOF RAIL
170
SCREW
170
NUT RETAINER , Replaced By: A0009903931
187
SLIDING RAIL FRONT LEFT, UP TO CHASSIS: 108.012,014,015 UNTIL PRODUCTION STOP 108.016 069012, ALSO INSTALLED ON: 069566-069600 108.018 075461, ALSO INSTALLED ON: 076136-076188
195
SLIDING RAIL LEFT
198
SCREW
198
SCREW , Replaced By: A1409900436
999
FUSE , Replaced By: A0005458334
999
PLUG , Replaced By: A0025452428
999
FUSEA16
999
ELECTRIC MOTOR , Replaced By: A0008201142
999
ELECTRIC MOTOR , Replaced By: A0008201142
999
ELECTRIC MOTOR
999
GEARING , Replaced By: A0008203207
999
CARBON BRUSH SET , Replaced By: A0008352575
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009831298
999
FOAM PLASTICS 10 MM, ORDER BY THE METER
999
FELT60X20X2 MM, ORDER BY THE METER
999
FELT , Replaced By: A0009830198
999
WASHER FOLDING TOP LOCK TO FOLDING TOP CASE, CENTER
999
METAL SECTION , ORDER BY THE METER, Replaced By: A1087820198
999
RUBBER PAD , Replaced By: A1107841597
999
RUBBER SECTION , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0019877625
999
RUBBER SEAL , Replaced By: A0019876052
999
FASTENER BUTTON
999
SCREW
999
NUT RETAINER , FROM CHASSIS:111.021 088365 111.024 000001 112.021 009718
999
BUSHING MOTOR TO BRACKET
999
LOCK FRAME TO REINFORCEMENT FRAME
999
LOCK
999
LOOM TIE , Replaced By: A0009974390
999
LOOM TIE FOR LINES, 10 FROM IDENT NO.631934 20 FROM IDENT NO.671517 ALSO INSTALLED ON 500001-5999994 495577
999
LOOM TIE , Replaced By: A0019974190
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
GROMMET GEARING TO BRACKET
999
LOOM TIE , Replaced By: A0019974190
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
CLIP , Replaced By: A1089880978
999
HOSEWASSERABLAUF HINTEN 250 MM
999
HOSE , 012 UP TO CHASSIS 026894,014 UP TO CHASSIS 022358, Replaced By: A1088300296
999
ROOF PANELLING , UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441, Replaced By: A1086500409, +001A1087800321, +001A1087800161, +001A1087800261, +002A1089900222, +002A0009909091, +002N009021005203
999
TUBE , Replaced By: A1087800477
999
SLIDING JAW , Replaced By: A1157800083
999
SLIDING ROOF PLATE , UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441, Replaced By: A1087800321, +002A1089900222, +002A0009909091, +002N009021005203
999
MOUNTING RAIL LEFT, FROM CHASSIS:108.012 045399 108.014 036219 108.015 002442 108.016,018,057,067 000001
999
BRACKET , FROM CHASSIS:108.016 10/50,12/52 070754 108.016 20/60,22/62 067795 108.018 10/50,12/52 077373 108.018 20/60,22/62 074244 108.057,067 000001
999
RAIL , Replaced By: A1087800161
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 108.012 026894 108.014 022358 108.015 001866, Replaced By: A1087821196
999
SLIDING RAIL FRONT RIGHT, UP TO CHASSIS: 108.012,014,015 UNTIL PRODUCTION STOP 108.016 069012, ALSO INSTALLED ON: 069566-069600 108.018 075461, ALSO INSTALLED ON: 076136-076188
999
SLIDING RAIL FRONT LEFT, FROM CHASSIS: 108.016 069013, EXCEPT FOR: 069566-069600 108.018 075462, EXCEPT FOR: 076136-076188
999
SLIDING RAIL FRONT RIGHT, FROM CHASSIS: 108.016 069013, EXCEPT FOR: 069566-069600 108.018 075462, EXCEPT FOR: 076136-076188
999
PAD , Replaced By: A1107841597
999
SCREW
999
GROMMET
999
LOCK LEFT
999
SLIDING RAIL RIGHT
999
SEAL RING , Replaced By: A1159971040
999
GROMMET ELECTRIC CABLE THRU FIRE WALL
999
SEAL RING , Replaced By: A1159971040
999
CLAMP TUBE TO REAR PILLAR
999
ANGLE
999
BRACKET , FROM CHASSIS:108.012 073611 108.016 016714 108.018,019 015927 UP TO CHASSIS: 108.019 033277
999
SLIDING JAW , NOT USED
999
SPRING
999
SLIDING SHOE
999
SCREW
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER
999
LOCK WASHER BRACKET TO COVERING
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
NUT , Replaced By: N304035008001
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT BALL PIVOT TO LEVER
999
SCREW GUIDE TO STEERING COLUMN END,4 430730
999
TOOTHED WASHER COVER TO COVERING,K 093739
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW , NOT USED
999
SHEET METAL SCREW , Replaced By: N007981002322
999
SHEET METAL SCREW TACHOGRAPH
999
SHEET METAL SCREW , Replaced By: N000000002062
999
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
SHEET METAL SCREW
999
SCREW ELECTRIC CABLE TO HORN
999
SCREW , Replaced By: N007985004107
999
SCREW
999
SCREW
999
SCREW , UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
FUSE , Replaced By: A0005458334
999
FUSE , Replaced By: A0015457534
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
