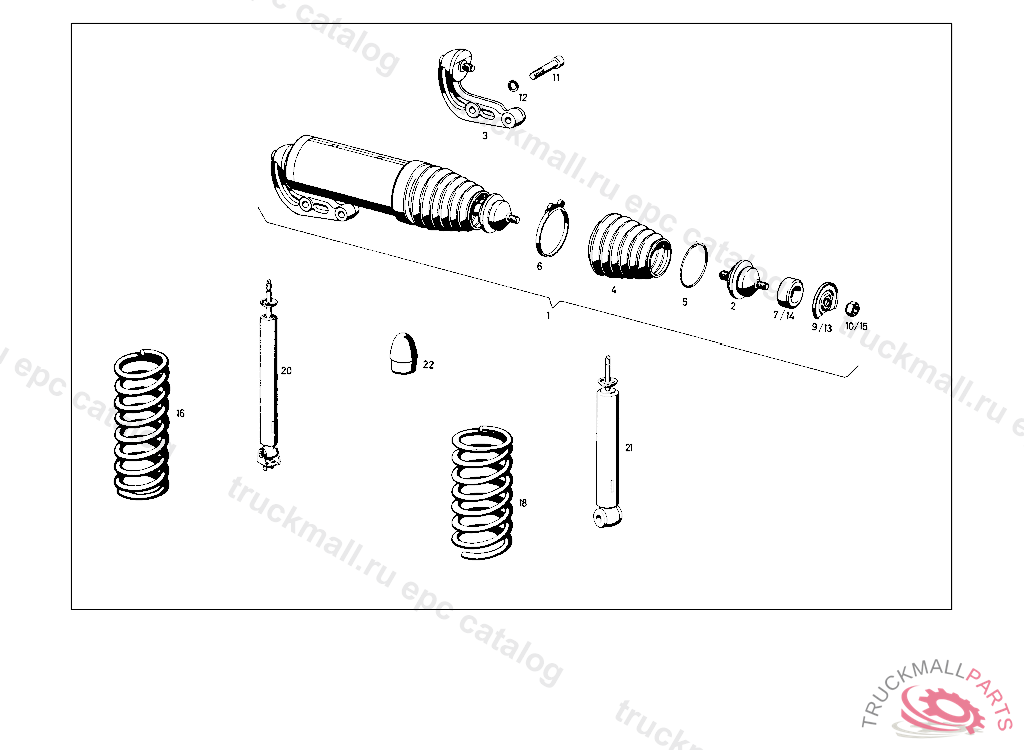

Поз.
Артикул
Описание
1
HYD.PNEUM.SPRING LEG ASSY , Replaced By: A1113200499
2
BALL JOINT LEFT, 010,011,016,017,110,116 ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEUMATIC COMPENSATING SPRING
3
BALL JOINT
4
BOOT , 000,001,004,010,016 FROM CHASSIS 134952, 100,101,104,110,116 FROM CHASSIS 233249, 002,003,005,011,017 FROM CHASSIS 001796
5
LOCK WASHER
6
LOOM TIE. CLAMP HOSE FASTENING
6
CLAMP , Replaced By: N916026050000
6
CLAMP , Replaced By: A0069972690
7
BEARING RING
9
WASHER
10
NUT
11
SCREW , 010,011,016,017,110,116 ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSARING SPRING, ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEU MATIC COMPENSATING SPRING
12
LOCK WASHER FITTING TO BRACKET
13
WASHER
14
BEARING RING
15
NUT
16
FRONT SPRING DIA.,16.50 MM, 010 ON SPECIAL REQUEST,HARDER SPRING SUSPENSION
18
REAR SPRING
20
SHOCK ABSORBER FRONT
21
SHOCK ABSORBER REAR
21
SHOCK ABSORBER , Replaced By: A1083200131
22
RUBBER BUFFER
999
PLATE
999
FRONT SPRING
999
FRONT SPRING
999
REAR SPRING
999
REAR SPRING , Replaced By: A1103243304
999
HYD.PNEUM.SPRING LEG ASSY
999
FRONT SPRING
999
PLATE
999
CLAMP AT SHIFTING TUBE
