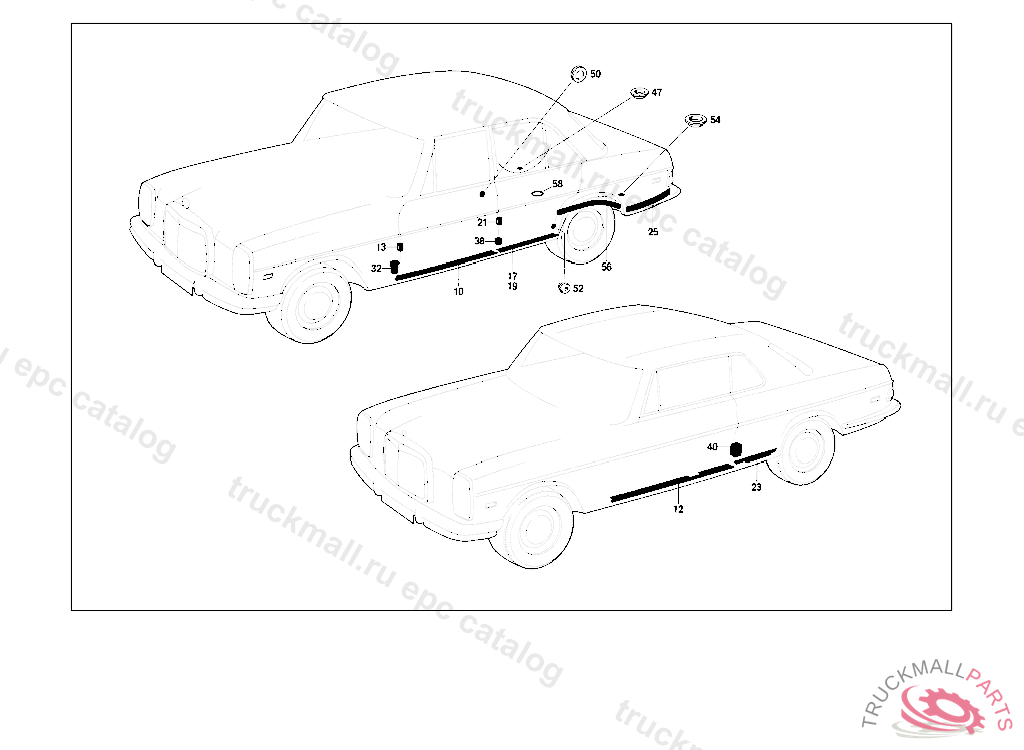

Поз.
Артикул
Описание
10
SEAL FRONT DOOR
12
SEAL FRONT DOOR
13
SEAL BEARING TO DOOR
17
SEAL REAR DOOR
19
SEAL REAR DOOR
21
SEAL BEARING TO DOOR
23
SEAL REAR SIDE,BOTTOM INSIDE
25
SEAL (BETWEEN REAR FENDER AND REAR FLOOR), FROM CHASSIS:114.021 003140 114.022 006600 114.023 001455
32
SEAL FRONT PANEL PILLAR
38
SEAL BOX PILLAR
40
SEAL CENTRAL PILLAR
47
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
50
EXPANSION PLUG (FOR DOOR-HANDLE-ASSEMBLY MOUNTING HOLE IN FRONT DOOR INTERIOR PLATE)
52
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
52
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
54
EXPANSION PLUG , Replaced By: A1139870044
54
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
56
SEAL FOR WHEEL ARCH AND REAR FLOOR
58
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
999
ADHESIVE TAPE , Replaced By: A0019875646
999
ADHESIVE TAPE , Replaced By: A0019875646
999
SEALANT , Replaced By: A0019893320
999
SEALANT , 000,001,004,010 FROM CHASSIS 099715-130557,100,101,104,110 FROM CHASSIS 210864-225647
999
SEALANT (FOR CAVITY BETWEEN WHEEL ARCH AND REAR FENDER)
999
ADHESIVE TAPE , Replaced By: A0019875646
999
SEAL FRONT PANEL PILLAR
999
SEAL , Replaced By: A1156820498
999
SEAL REAR DOOR
999
SEAL , Replaced By: A1156820198
999
SEAL REAR END PILLAR
999
SEAL , Replaced By: A1086820098
999
SEAL , Replaced By: A1156821398
999
SEAL WIPER SPINDLE
999
SEAL , Replaced By: A1156821398
