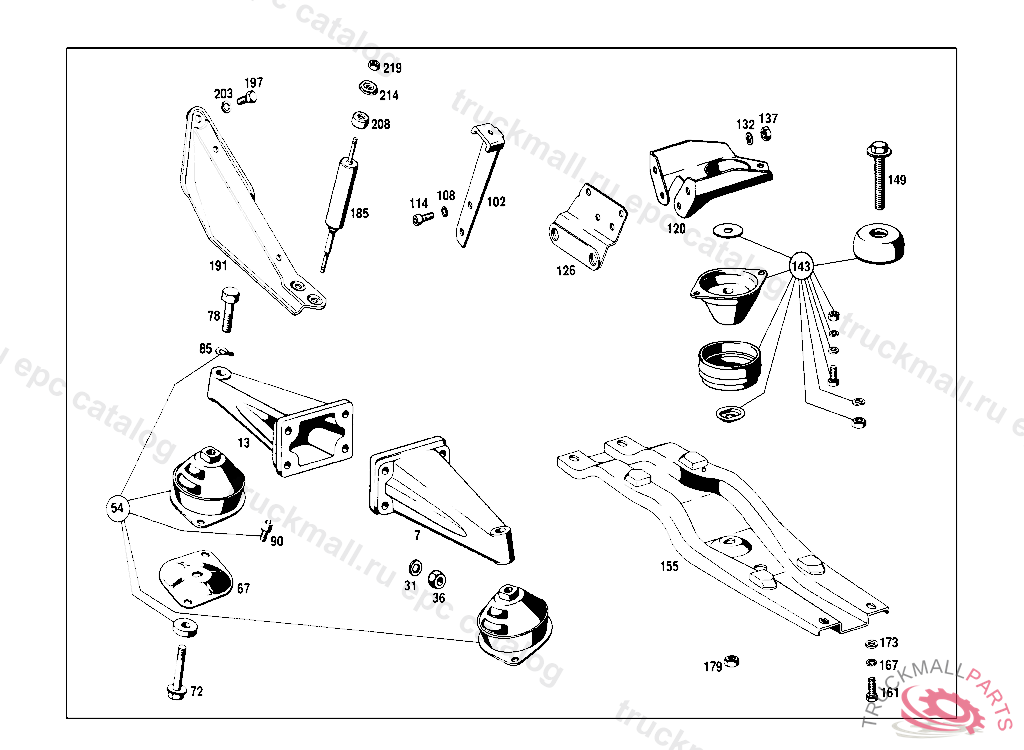

Поз.
Артикул
Описание
31
WASHER RADIATOR TO RUBBER MOUNTING
31
WASHER , Replaced By: N000125010532
36
NUT , Replaced By: N304032010002
36
NUT
54
REPAIR KIT , Replaced By: A1122230012, +001A1802231012, +001A1169870641
54
RUBBER MOUNTING RIGHT, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
67
PLATE
72
SCREW
85
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
85
SPRING WASHER CAB FLOOR
90
COMBINATION BOLT
126
PLATE , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
132
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
132
SPRING WASHER , Replaced By: N000137008212
137
NUT
143
REPAIR KIT ENGINE REAR SUSPENSION
149
SCREW
155
ENGINE SUPPORT , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
161
SCREW PIPE CLAMP
161
SCREW , Replaced By: N304017008021
167
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
173
WASHER EXHAUST MUFFLER TO STRAP
173
WASHER , Replaced By: N000125008443
179
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
179
NUT
185
ENGINE VIBRATION ABSORBER , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
185
ENGINE VIBRATION ABSORBER , Replaced By: A0002401348
197
SCREW CLAMP TO BRACKET AND TO PIPE
203
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
208
RUBBER BUFFER
214
RETAINER
219
NUT , Replaced By: N913002006009
219
NUT OIL TANK TO BRACKET
999
REPAIR KIT ENINE SHOCK ABSORBER MOUNTING PARTS
999
SUPPORT
999
CONSOLE
999
RUBBER MOUNTING , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
999
PLATE , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
999
RUBBER BUFFER , 016 UP TO CHASSIS 027622 EXCEPT FOR,SEE FOOTN.6,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.7,019 UP TO CHASSIS 029325
999
ENGINE SUPPORT RIGHT
999
ENGINE SUPPORT LEFT
999
ENGINE SUPPORT RIGHT
999
ENGINE SUPPORT LEFT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER CAB FLOOR
999
SCREW CONNECTOR TO EXHAUST MANIFOLD
999
SCREW , Replaced By: N304017008016
999
SHEET METAL SCREW FAN SHROUD TO RADIATOR 6.3X19
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
