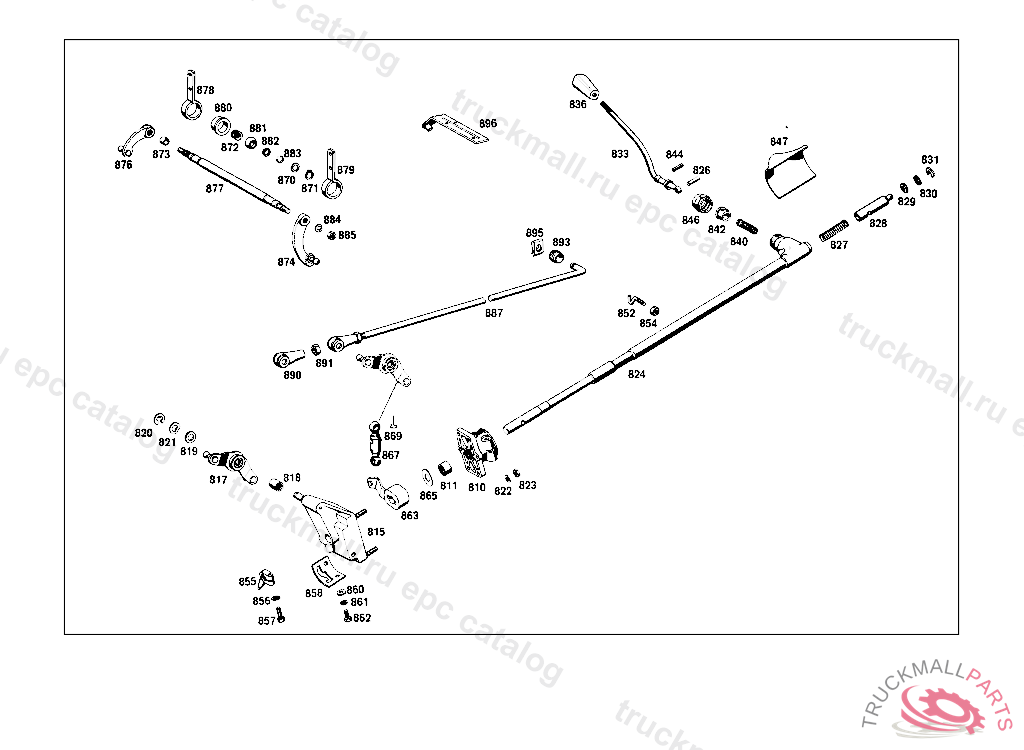

Поз.
Артикул
Описание
810
BEARING BRACKET REAR, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
811
NEEDLE BEARING
815
BEARING BRACKET , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
817
LEVER , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
818
NEEDLE BEARING
819
WASHER
820
LOCK PLATE INTERMEDIATE BEARING
821
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
822
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
822
SPRING WASHER , Replaced By: N000137008212
823
NUT
823
NUT , Replaced By: N304032008006
824
SHIFTING TUBE , 016 FROM CHASSIS 054181, 018, 019 FROM CHASSIS 059142
826
PIN
827
SPRING
828
GUIDE PIVOT
829
SEAL RING
830
WASHER
831
LOCK
833
SHIFT LEVER , 019136
833
SHIFT LEVER , FROM CHASSIS: 000,002,010 111660 015 143500 100,102,103,110,112 295223 115 150670 005,017,105,107,108,117,119 000001
833
SHIFT LEVER , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: LESS POWER STEERING 000,002,010 12/52 086674 015 12/52 101861 100,102,103,110,112 12/52 220489 115 12/52 109121 UP TO CHASSIS: WITH POWER STEERING 000,002,010 12/52 083150 015 12/52 097114 100,102,103,110,112 12/52 211905 115 12/52 104333, Replaced By: A1152604439, +001A1152681442, +001A1152680172
840
SPRING SHIFTING TUBE
842
BUSHING , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227
844
SLEEVE BRACKET TO PEDAL BEARING BRACKET
846
CAP
847
BOOT
852
SCREW
854
NUT TACHOGRAPH TO BRACKET
855
GUIDE PIVOT
856
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
857
SCREW COVER PLATE TO BRACKET
858
SLOTTED GATE , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
860
WASHER COMPRESSED AIR LINE TO BRACKET
860
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
861
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
862
SCREW COVER PLATE TO BRACKET
863
LEVER , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
865
WASHER
867
BALL SOCKET
869
SECURING CLIP. CIRCLIP
870
FITTED WASHER
871
LOCK RING
872
NEEDLE BEARING
873
SPACER TUBE
876
LEVER
877
SHAFT
878
BEARING
879
HOUSING
880
RUBBER RING
881
BALL
882
WASHER
883
SEAL RING
884
LOCK WASHER
885
NUT
890
BALL SOCKET
891
NUT
893
BUSHING GEAR SELECTOR LEVER
895
LOCK
896
BRACKET , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
999
THREADED INSERT
999
NUT BATTERY MOUNTING
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW PUMP TO BRACKET
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
SEAL RINGTO 001 431 72 14
999
CLAMPING SLEEVE , Replaced By: N001481005017
999
TOOTHED WASHER ,026784
999
CLAMPING SLEEVE
999
NUT , Replaced By: N304032008006
999
NUT CYLINDER TO BRACKET TO0002902112
999
NUT BALL PIVOT TO LEVER
999
SCREW OIL LINE TO CRANKCASE
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008043
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW , Replaced By: N304017006012
999
SCREW
999
SCREW
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW
999
SCREW STEERING COLUMN PANELLING M 5X12
999
SCREW , 001609
999
BOOT
999
SEAL RING
999
SEAL RING OUTPUT SHAFT,FRONT 26 MM
999
PIN39,15
999
WASHER
999
BRAKE BAND
999
BRAKE BAND , Replaced By: A1162701562
999
BOOT
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING LOCK-UP COUPLING 0.32X6.64X27 MM
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
WASHER
999
PISTON
999
PISTON , NO LONGER AVAILABLE
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
BUSHING
999
GASKET
999
SHIFT VALVE
999
PIN40,15
999
SHIFT VALVE
999
PISTON
999
GASKET , 016, 018, 019 FROM TRANSMISSION 052411, 057, 058 FROM TRANSMISSION 025503
999
PISTON
999
VALVE PART
999
PISTON
999
SHIFT VALVE
999
SHIFT VALVE
999
HOUSING
999
GASKET , Replaced By: A1152772880
999
SHIFT VALVE
999
SHIFT VALVE
999
VALVE PART
999
SHIFT VALVE
999
GASKET , Replaced By: A1152773280
999
SHIFT VALVE
999
VALVE PART
999
SHIFT VALVE
999
DETENT
999
SPACER WASHER
999
SEAL RING
999
SEAL RING , Replaced By: A0119976447
999
GUARD PLATE , 013131 EXCEPT FOR 010364-010763
999
BOOT
999
BOOT
999
BOOT
999
SEAL RING
999
BOOT
999
SEAL RING , 053009
999
BOOT
999
SEAL RING , Replaced By: A3162720455
999
BOOT
999
SEAL RING
999
SPACER WASHER 0.5 MM,AS REQUIRED
999
SPACER WASHER AS REQUIRED 0.2 MM
999
SPACER WASHER 0.5 MM,AS REQUIRED
999
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.20 MM
999
SPACER WASHER AS REQUIRED 0.5 MM
999
SPACER WASHER AS REQUIRED 0.2 MM
999
TRANSMISSION CASE , FROM TRANSMISSION: 115.000,002,010,015 024695-031534 115.100,102,103,110,112,115 019886-024365, Replaced By: A1152705911, +001A1092700689, +001A1092701189
999
VALVE
999
VALVE , FROM TRANSMISSION 043259 ALSO INSTALLED ON 041233-041258, Replaced By: A1152702089, +001A1152771758
999
VALVE , FROM TRANSMISSION 006125 ALSO INSTALLED ON 006001-006035 014074 MIND RANGE OF DELIVERY
999
VALVE ,019885
999
VALVE , FROM TRANSMISSION: 115.000,002,010,015 024695-031534 115.100,102,103,110,112,115 019886-024365
999
GUIDE TUBE , AGAINST SQUEALING OF TRANSMISSION
999
COVER , Replaced By: A1152771603
999
THRUST PIN
999
THRUST PIN
999
REGULATOR VALVE
999
FILTER ,025623
999
FILTER PRESSURE RELIEF VALVE, 016, 018, 019 FROM TRANSMISSION 045659, 057, 058 FROM TRANSMISSION 015959
999
KNOB
999
BUSHING , UP TO CHASSIS: 000,002,010 056141 015 060261 100,102,103,110,112 139360 115 065085 FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228
999
NUT
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228 UP TO CHASSIS: 000,002,010 111659 015 143499 100,102,103,110,112 295222 115 150669, Replaced By: A1152604539, +001A1152670114, +001A1152680172
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228 UP TO CHASSIS: 000,002,010 117631 015 154063 100,102,103,110,112 315098 115 161611, Replaced By: A1152604439, +001A1152670114, +001A1152680172
999
SHIFT LEVER , FROM CHASSIS: LESS POWER STEERING 000,002,010 20/60 088430 015 20/60 104519 100,102,103,110,112 20/60 225573 115 20/60 111936 FROM CHASSIS: WITH POWER STEERING 000,002,010 20/60 088396 015 20/60 104453 100,102,103,110,112 20/60 225471 115 20/60 111824 FROM CHASSIS: LESS POWER STEERING 000,002,010 22/62 087647 015 22/62 103137 100,102,103,110,112 22/62 222276 115 22/62 110305 FROM CHASSIS: WITH POWER STEERING 000,002,010 22/62 086764 015 22/62 101812 100,102,103,110,112 22/62 220495 115 22/62 109110 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227, Replaced By: A1152604539, +001A1152670114, +001A1152680550, +001A1152680172, +001N007346005000
999
SHIFT LEVER , FROM CHASSIS: LESS POWER STEERING 000,002,010 10/50 085059 015 10/50 099480 100,102,103,110,112 10/50 216012 115 10/50 106668 FROM CHASSIS: WITH POWER STEERING 000,002,010 10/50 086622 015 10/50 101629 100,102,103,110,112 10/50 220100 115 10/50 108872 FROM CHASSIS: LESS POWER STEERING 000,002,010 12/52 086675 015 12/52 101862 100,102,103,110,112 12/52 220490 115 12/52 109122 FROM CHASSIS: WITH POWER STEERING 000,002,010 12/52 083151 015 12/52 097115 100,102,103,110,112 12/52 211906 115 12/52 104334 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227, Replaced By: A1152604439, +001A1152680550, +001A1152680172, +001N007346005000
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: LESS POWER STEERING 000,002,010 12/52 086674 015 12/52 101861 100,102,103,110,112 12/52 220489 115 12/52 109121 UP TO CHASSIS: WITH POWER STEERING 000,002,010 12/52 083150 015 12/52 097114 100,102,103,110,112 12/52 211905 115 12/52 104333, Replaced By: A1152604439, +001A1152681442, +001A1152680172
999
LINE RIGHT
999
SPRING , FROM TRANSMISSION 006125 ALSO INSTALLED ON 006001-006035
999
SPRING , FROM TRANSMISSION 006125 ALSO INSTALLED ON 006001-006035
999
SCREW , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
NUT , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
BRACKET , FROM TRANSMISSION 006125 ALSO INSTALLED ON 006001-006035
999
COVER , Replaced By: A1092700508, +001A1092703732, +001A1162701562
999
PIN AS REQUIRED 28 MM
999
PIN AS REQUIRED 27 MM
