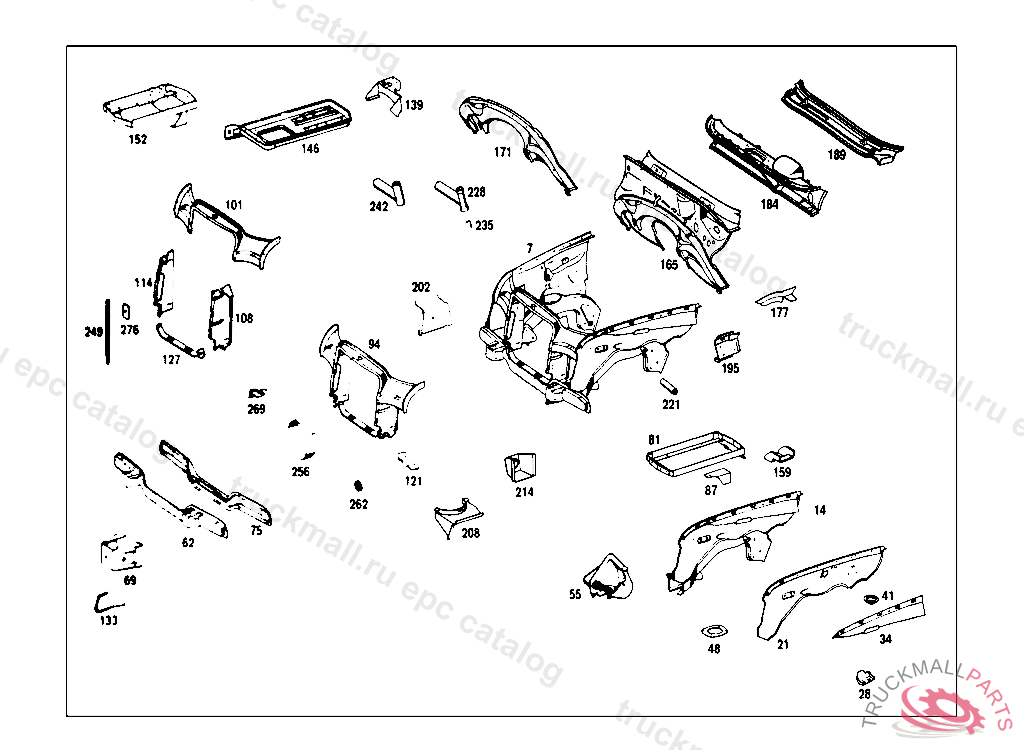

Поз.
Артикул
Описание
14
WHEELHOUSE LEFT, 016 FROM CHASSIS 027623, ALSO INSTALLED ON, SEE GROUP 24, FOOTNOTE 6, 018 FROM CHASSIS 028986, ALSO INSTALLED ON, SEE GROUP 24 , FOOTNOTE 7, 019 FROM CHASSIS 029326
21
WHEELHOUSE LEFT
28
BRACKET BRAKE HOSE, LEFT FRONT
34
STRUT FRONT LEFT
41
RETAINER
48
PLATE
55
CONSOLE FRONT AXLE LEFT BRACING
62
SUPPORT FRONT
69
CONSOLE FRONT LEFT SHOCK ABSORBER
75
CROSS MEMBER FRONT, 024/025 FROM CHASSIS 003545 ALSO INSTALLED ON 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003 543
101
STIFFENING FRONT, NO LONGER AVAILABLE
121
BRACING SLIDING PLATE, 016 FROM CHASSIS 057860, 018,019 FROM CHASSIS 063485
133
EYE FRONT
139
BRACKET BATTERY FRAME,REAR
146
REST
152
REST
152
REST , Replaced By: A1116205858
159
ANGLE LEFT (ENGINE SHOCK ABSORBER)
177
ANGLE LEFT
184
INSTRUMENT PANEL SHELL
189
PANELLING
195
CONNECTION LEFT
202
BRACKET LIQUID TANK
208
BRACKET FUEL FINE-MESH FILTER, 003778
214
MOUNTING CONTROL LINKAGE
221
TUBE
242
TRUNNION BEARING
256
SHELL
262
GROMMET
269
CLAMP
276
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
276
SHEET METAL NUT , Replaced By: N913008006300
999
PANELLING , 012 UP TO CHASSIS 011894,014 UP TO CHASSIS 009519, Replaced By: A1086200204
999
BAFFLE LEFT
999
BAFFLE RIGHT
999
STRUT FRONT RIGHT
999
WHEELHOUSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1086200661
999
WHEELHOUSE RIGHT
999
STIFFENING , Replaced By: A1096200272
999
COWL , Replaced By: A1086201105
999
COWL , Replaced By: A1086201205
999
COWL , Replaced By: A1086201305
999
COWL , Replaced By: A1086201305
999
COWL
999
WHEELHOUSE RIGHT
999
INSTRUMENT PANEL SHELL
999
FRONT PANEL
999
FRONT PANEL
999
REINFORCEMENT , 016 FROM CHASSIS 027623 ALSO INSTALLED ON,SEE FOOTNOTE 002,018 FROM CHASSIS 028986 ALSO INSTALLED ON,SEE FOOTNOTE 005,019 FROMCHASSIS 029326
999
ANGLE RIGHT
999
CONNECTION RIGHT
999
STIFFENING FRONT
999
STRUT BETWEEN STIFFENING AND FRONT CROSS MEMBER
999
ANGLE LEFT, FROM CHASSIS 007285 ALSO INSTALLED ON, SEE FOOTNOTE 31
999
CONSOLE FRONT RIGHT SHOCK ABSORBER
999
CONSOLE FRONT AXLE RIGHT BRACING
999
EXPANSION PLUG , Replaced By: A1139870044
999
BRACKET KICK-DOWN, NO LONGER AVAILABLE
999
BRACKET BRAKE HOSE, LEFT FRONT
999
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
999
WASHER BRACKET TO CAB REAR PANEL
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017008016
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
