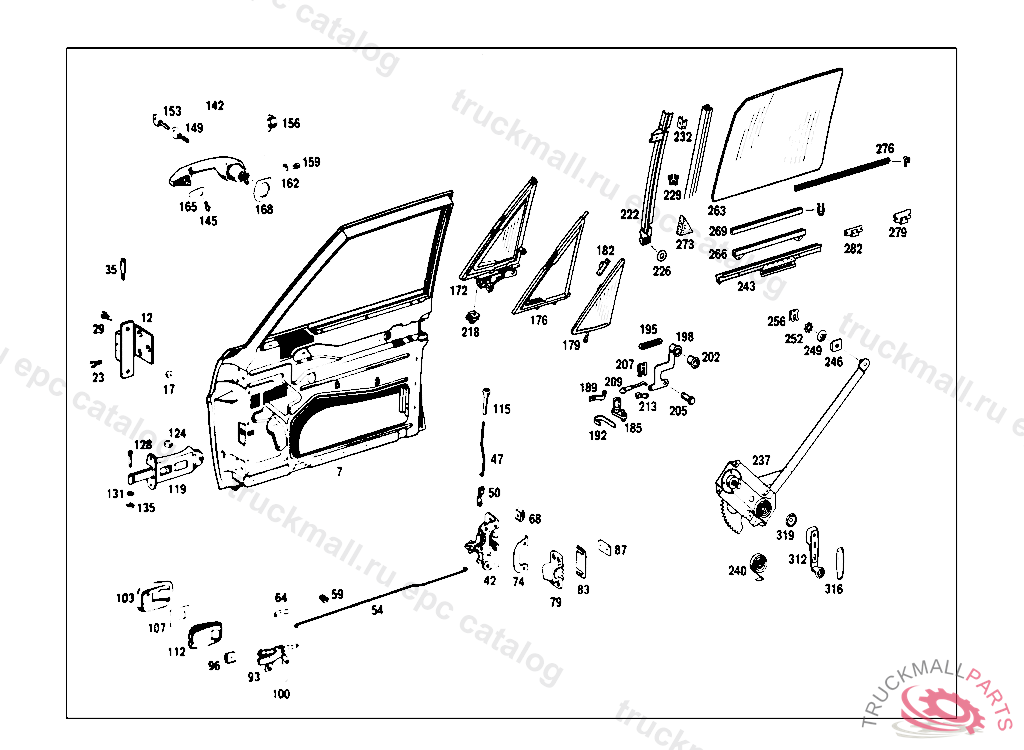

Поз.
Артикул
Описание
12
HINGE LEFT FRONT DOOR
12
HINGE , Replaced By: A1087200137
17
GREASE NIPPLE
23
SCREW , UP TO CHASSIS: 000,002,010 083223 015 097126 100,102,103,110,112 212123 115 104333
29
SCREW , Replaced By: N304017008034
29
SCREW BRACKET TO CROSS CONNECTION STRUT
42
LOCK CENTRAL DOOR,001274
47
LOCKING ROD
50
LOCK PULL ROD TO DOOR LOCK
54
PULL ROD (FRONT DOOR)
59
CLIP , Replaced By: A0069886378
59
CLIP
64
LOCK PULL ROD TO DOOR LOCK
74
EDGING RIGHT
79
LOCKING EYE RIGHT, FROM CHASSIS: 010 031987 ALSO INSTALLED ON: 026127-026384 110 071329 ALSO INSTALLED ON: 057116-057347
83
PLATE 0.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
87
PLATE
93
INTERIOR HANDLE ASSEMBLY RIGHT
96
NUT RETAINER , Replaced By: A3229900091
96
NUT RETAINER , Replaced By: A0009907191
100
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
103
ESCUTCHEON RIGHT
112
INSERT RIGHT
115
KNOB , 023 116973 033 048510 123 097280 130 120563
119
DOOR CHECK
124
ROLLER , Replaced By: A3147230068
124
ROLLER
128
PIN
131
WASHER DOOR CHECK TO FRONT PANEL PILLAR
135
LOCK
142
DOOR HANDLE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
145
PIN
149
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
153
KEY SECONDARY KEY HUF, STATE LOCK NUMBER WHEN ORDERING
156
CAP
159
SCREW , Replaced By: N000912006095
159
SCREW DOOR HANDLE TO DOOR
162
DISC SPRING
165
PAD FRONT, 012 FROM CHASSIS 044562,014 FROM CHASSIS 035569
168
PAD REAR RIGHT, 012 FROM CHASSIS 044562, 014 FROM CHASSIS 035569, 015 FROM CHASSIS 002425
172
VENTILATOR WINDOW RIGHT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
176
SEAL RIGHT
179
VENTILATOR WINDOW RIGHT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
182
MOUNTING RIGHT, UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596
185
MOUNTING INSIDE
189
SPRING
192
SPRING
195
PLATE
198
FASTENER RIGHT
202
FASTENER , 012 FROM CHASSIS 058444 ALSO INSTALLED ON,SEE FOOTNOTE 056,014 FROM CHASSIS 045294 ALSO INSTALLED ON,SEE FOOTNOTE 057
205
PIN
209
ROD
213
LOCK
218
NUT RETAINER , Replaced By: A0009907191
218
NUT RETAINER , Replaced By: A3229900091
222
GUIDE RAIL RIGHT
226
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
229
SEALING SECTION 2240 MM, ORDER BY THE METER
232
CLIP
237
WINDOW REGULATOR RIGHT, 016 FROM CHASSIS 047185,018 FROM CHASSIS 049844,019 FROM CHASSIS 051514
240
SPRING , Replaced By: A0007680734
240
SPRING
243
WINDOW REGULATOR RAIL
246
COVERING , Replaced By: A1155860072
249
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
252
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
263
GLASS PANE RIGHT
266
RETAINING RAIL
269
RUBBER MOULDING
273
SEAL , Replaced By: A1157251298
273
SEAL , Replaced By: A1167250198
273
SEAL , FROM CHASSIS: 010 076074 110 193042 017,117 000001
279
CLIP
282
CLIP
319
WASHER
999
KEY HEAD
999
KEY HEAD
999
KEY BLANK (MASTER KEY) HUF
999
KEY BLANK (SECONDARY KEY) HUF
999
SPRING , Replaced By: A0007680905
999
WASHER , FROM CHASSIS:113.043 002980 113.044 000001
999
PLUG
999
SCREW
999
NUT RETAINER , Replaced By: A0009908391
999
NUT RETAINER , Replaced By: A0009907191
999
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
999
GUIDE RAIL LEFT
999
MOUNTING LEFT, FROM CHASSIS: 000,002,010 081999 015 095545 100,102,103,110,112 209526 115 102597 UP TO CHASSIS: 015,115 200000 110 400000
999
VENTILATOR WINDOW , 016 UP TO CHASSIS 080591, 018 UP TO CHASSIS 086840, 057,058 UP TO CHASSIS 003049, Replaced By: A1087201955, +001A1087200327
999
WEATHERSTRIP LEFT
999
EDGE GUARD SECTION LEFT
999
MOUNTING TOP RIGHT, FROM CHASSIS 067393
999
VENTILATOR WINDOW , 016 UP TO CHASSIS 080591, 018 UP TO CHASSIS 086840, 057,058 UP TO CHASSIS 003049, Replaced By: A1087202055, +001A1087200427
999
DOOR SHELL LEFT
999
WELT , Replaced By: A1087202180
999
DOOR SHELL RIGHT
999
FASTENER LEFT
999
PANELLING FRONT LEFT
999
VENTILATOR WINDOW , 012 UP TO CHASSIS 053399,014 UP TO CHASSIS 042067 067,068 UP TO CHASSIS 001651, Replaced By: A1087201755
999
VENTILATOR WINDOW , 012 UP TO CHASSIS 053399,014 UP TO CHASSIS 042067 067,068 UP TO CHASSIS 001651, Replaced By: A1087201855
999
PANELLING TOP LEFT
999
VENTILATOR WINDOW LEFT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
999
PANELLING REAR LEFT
999
VENTILATOR WINDOW LEFT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
999
GARNISH MOULDING LEFT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010467
999
PANELLING LEFT, STATE COLOR AND CHASSIS NOS. WHEN ORDERING
999
PANELLING RIGHT, STATE COLOR AND CHASSIS NOS. WHEN ORDERING
999
PANELLING LEFT, STATE COLOR AND CHASSIS NO.WHEN ORDERING
999
PANELLING RIGHT, STATE COLOR AND CHASSIS NO.WHEN ORDERING
999
EDGING
999
GLASS PANE LEFT CRANK OPERATED WINDOW
999
SEAL LEFT
999
MOUNTING LEFT, UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596
999
WINDOW REGULATOR LEFT, 016 FROM CHASSIS 047185,018 FROM CHASSIS 049844,019 FROM CHASSIS 051514
999
SEAL CENTRAL PILLAR,LEFT
999
RAIL LEFT
999
GARNISH MOULDING DOOR EDGE,LEFT
999
GARNISH MOULDING FRONT LEFT
999
GARNISH MOULDING TOP LEFT
999
GARNISH MOULDING REAR LEFT
999
INTERIOR HANDLE ASSEMBLY LEFT, 000,001,004,010 FROM CHASSIS 188150,100,101,104,110 FROM CHASSIS 352119,002,003,005,011 FROM CHASSIS 031990
999
DOOR HANDLE LESS KEY,LEFT, STATE LOCK NUMBER WHEN ORDERING
999
DOOR HANDLE WITH KEY,RIGHT, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
999
INSERT LEFT
999
ESCUTCHEON LEFT
999
PAD REAR LEFT, 012 FROM CHASSIS 044562,014 FROM CHASSIS 035569
999
RUBBER BUFFER , 010 FROM CHASSIS 050273,012 FROM CHASSIS 111521
999
CLIP , Replaced By: A1159880078
999
WASHER
999
PANELLING , STATE COLOR AND CHASSIS NO.WHEN ORDERING, Replaced By: A1087202551
999
PANELLING , STATE COLOR AND CHASSIS NO.WHEN ORDERING, Replaced By: A1087202651
999
GARNISH MOULDING LEFT
999
RUBBER BUFFER AS REQUIRED,5.5 MM, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
RUBBER BUFFER PIN BUSHING
999
RUBBER BUFFER 7.5 MM AS REQUIRED, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
RUBBER BUFFER 8.5 MM AS REQUIRED, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
REPAIR KIT , Replaced By: A1237200114
999
LOCK WITH INTERIOR LOCKING MECHANISM,LEFT
999
LOCK WITH INTERIOR LOCKING MECHANISM,RIGHT
999
LOCK LEFT AT CENTRAL SIDE DOOR,001274
999
LOCKING EYE LEFT
999
PLATE 1.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
999
SEALING RAIL 2200 MM
999
CLIP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 092933 015 112061 100,102,103,110,112 238351 115 118982, Replaced By: A1159881778
999
CLIP , 003030
999
SHELL , NO LONGER AVAILABLE
999
COVERING REAR DOOR INTERIOR PLATE
999
SEAL INSIDE 4000 MM
999
REPAIR KIT
999
CRANK
999
COVERING , STATE COLOR NUMBER WHEN ORDERING
999
SCREW
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006034
999
NUT BALL PIVOT TO LEVER
999
TOOTHED WASHER CABLE TO FUSE BOX
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW
999
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
999
SHEET METAL SCREW GLOVE COMPARTMENT TO INSTRUMENT PANEL
999
SHEET METAL SCREW , Replaced By: N007982003209
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW DOOR LINING TO REAR DOORS
999
SHEET METAL SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SPRING WASHER SHIFTING CYLINDER TO YOKE
999
LOCK , Replaced By: N912002008001
999
LOCK , Replaced By: N912002008003
999
LOCK PULL TO FASTENER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
