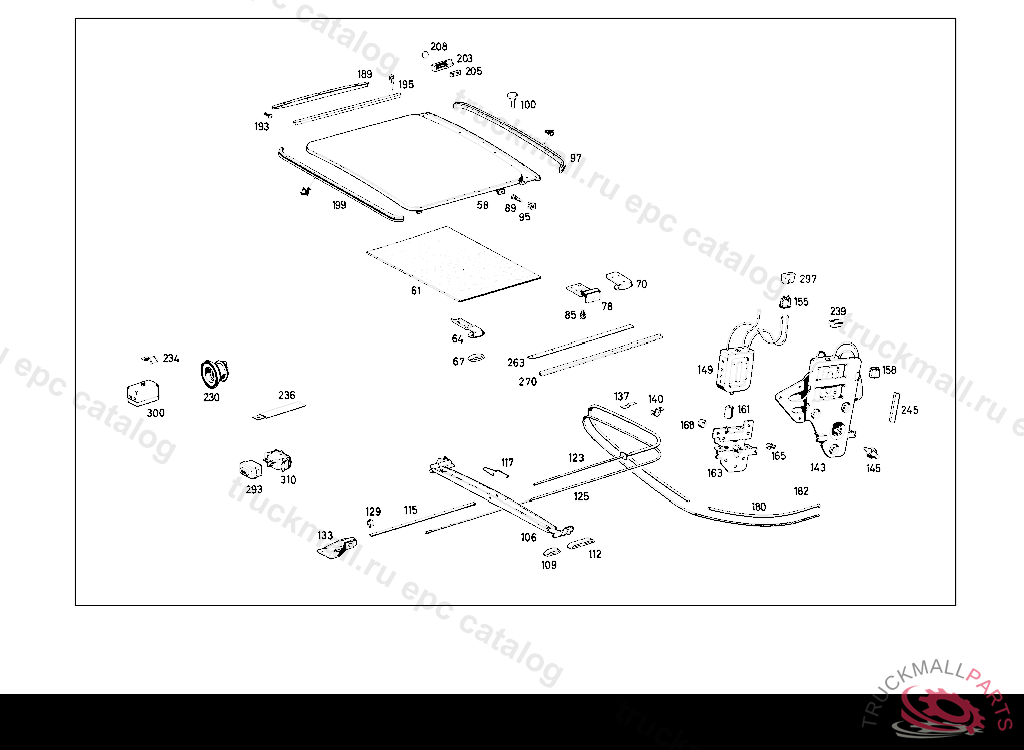

Поз.
Артикул
Описание
58
SLIDING ROOF PLATE
61
FOAM PLASTICS FRONT ROOF RAIL
64
ANGLE FRONT
67
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
70
ANGLE REAR
78
ANGLE
85
SCREW
89
SCREW
95
NUT RETAINER , FROM CHASSIS:111.021 088365 111.024 000001 112.021 009718
97
SEAL
100
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159870240
106
BRIDGE
109
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
112
SLIDING JAW
115
TUBE
117
SPRING , Replaced By: A1157820135
123
TUBE
125
CABLE
129
CLIP PULL TO SLIDING ROOF PLATE,FRONT
133
PLATE
137
CLAMP TUBE TO REAR PILLAR
140
CLAMP
140
CLAMP FLEXIBLE SHAFT
143
BRACKET , UP TO CHASSIS: 108.016 10/50,12/52 070753 108.016 20/60,22/62 067794 108.018 10/50,12/52 077372 108.018 20/60,22/62 074243
145
LINK EMERGENCY CRANK, UP TO CHASSIS126.021 004328 022,023 014559 032,033 006153 036,037 005335 120 000195
149
ELECTRIC MOTOR
155
PLUG , Replaced By: A0095454028, +002A0015453826, +001A0095454128
155
PLUG HOUSING
158
CLIP PLUG TO REAR PILLAR
161
CONNECTOR
163
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
165
CLIP
168
GROMMET GEARING TO BRACKET
180
TUBE
182
CAP
189
MOUNTING RAIL RIGHT, UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441
193
SCREW
195
METAL SECTION , ORDER BY THE METER, Replaced By: A1087820198
199
SEAL BOTTOM FRAME,FRONT
203
LOCK RIGHT
205
PLATE
208
SEAL RING
230
GROMMET
230
GROMMET , Replaced By: A0089971781
234
CLAMP FLEXIBLE SHAFT
234
CLAMP
236
BRACKET , FROM CHASSIS:108.012 073611 108.016 016714 108.018,019 015927 UP TO CHASSIS: 108.019 033277
239
CLIP CABLE HARNESS TO ROOF RAIL
245
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
263
SLIDING RAIL FRONT LEFT, UP TO CHASSIS: 108.012,014,015 UNTIL PRODUCTION STOP 108.016 069012, ALSO INSTALLED ON: 069566-069600 108.018 075461, ALSO INSTALLED ON: 076136-076188
270
SLIDING RAIL LEFT
293
CONNECTOR 4-POLE
297
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
297
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
300
FUSE BOX , Replaced By: A0005456301
310
SWITCH
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER T-FITTING TO BRACKET
999
NUT
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
FUSE , Replaced By: A0015457534
999
FUSE , Replaced By: A0005458334
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021005205
999
WOOD SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW , Replaced By: N007985004107
999
SCREW ELECTRIC CABLE TO HORN
999
SHEET METAL SCREW
999
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
SHEET METAL SCREW , Replaced By: N000000002062
999
SHEET METAL SCREW , NOT USED
999
TOOTHED WASHER MASKED STOP LAMP
999
TOOTHED WASHER COVER TO COVERING,K 093739
999
SCREW GUIDE TO STEERING COLUMN END,4 430730
999
NUT BALL PIVOT TO LEVER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO BRACKET
999
SCREW
999
NUT , Replaced By: N304035008001
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125004319
999
SCREW
999
SCREW
999
SLIDING SHOE
999
SPRING
999
SLIDING JAW , NOT USED
999
INSULATION , Replaced By: A0009830198
999
LOOM TIE
999
LOOM TIE , Replaced By: A1149970290
999
LOOM TIE , Replaced By: A1149970590
999
ANGLE
999
SEAL RING , Replaced By: A1159971040
999
GROMMET ELECTRIC CABLE THRU FIRE WALL
999
SEAL RING , Replaced By: A1159971040
999
SLIDING RAIL RIGHT
999
LOCK LEFT
999
TUBE , Replaced By: A1087800217
999
SLIDING RAIL RIGHT, FROM CHASSIS: 108.019 075462, EXCEPT FOR: 076136-076188 108.058,068 000001 109.018 005401, EXCEPT FOR: 005427-005449
999
SLIDING RAIL LEFT, FROM CHASSIS: 108.019 075462, EXCEPT FOR: 076136-076188 108.058,068 000001 109.018 005401, EXCEPT FOR: 005427-005449
999
FRAME , FROM CHASSIS: 108.019 075462, EXCEPT FOR: 076136-076188 108.058,068 000001 109.018 005401, EXCEPT FOR: 005427-005449 FROM CHASSIS: 109.056 004630, EXCEPT FOR: 004792-004916 109.057 UNTIL PRODUCTION STOP
999
TUBE , Replaced By: A1097800477
999
COVERING
999
FRAME , UP TO CHASSIS: 108.019 075461, ALSO INSTALLED ON: 076136-076188 109.015 UNTIL PRODUCTION STOP UP TO CHASSIS: 109.018 005400, ALSO INSTALLED ON: 005427-005449 109.056 004629, ALSO INSTALLED ON: 004792-004916, Replaced By: A1097800229, +001A1097820326, +001A1097820426
999
PANELLING COMPLETELY SEWN, STATE COLOR NUMBER WHEN ORDERING
999
ROOF PANELLING , UP TO CHASSIS: 109.015 001878, Replaced By: A1096500409, +001A1087800321, +001A1087800161, +001A1087800261, +002A1089900222, +002A0009909091, +002N009021005203
999
SCREW
999
SCREW , Replaced By: A1409900436
999
PAD , Replaced By: A1107841597
999
BRACKET
999
SLIDING RAIL FRONT RIGHT, FROM CHASSIS: 108.016 069013, EXCEPT FOR: 069566-069600 108.018 075462, EXCEPT FOR: 076136-076188
999
SLIDING RAIL FRONT LEFT, FROM CHASSIS: 108.016 069013, EXCEPT FOR: 069566-069600 108.018 075462, EXCEPT FOR: 076136-076188
999
SLIDING RAIL FRONT RIGHT, UP TO CHASSIS: 108.012,014,015 UNTIL PRODUCTION STOP 108.016 069012, ALSO INSTALLED ON: 069566-069600 108.018 075461, ALSO INSTALLED ON: 076136-076188
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 108.012 026894 108.014 022358 108.015 001866, Replaced By: A1087821196
999
RAIL , Replaced By: A1087800261
999
SEAL480 MM
999
RAIL , Replaced By: A1087800161
999
FRAME , FROM CHASSIS: 108.016 069013, EXCEPT FOR: 069566-069600 108.018 075462, EXCEPT FOR: 076136-076188
999
BRACKET , FROM CHASSIS:108.016 10/50,12/52 070754 108.016 20/60,22/62 067795 108.018 10/50,12/52 077373 108.018 20/60,22/62 074244 108.057,067 000001
999
BRIDGE , Replaced By: A1087801035
999
MOUNTING RAIL LEFT, FROM CHASSIS:108.012 045399 108.014 036219 108.015 002442 108.016,018,057,067 000001
999
SLIDING ROOF PLATE , UP TO CHASSIS: 108.012 045398 108.014 036218 108.015 002441, Replaced By: A1087800321, +002A1089900222, +002A0009909091, +002N009021005203
999
TUBE , Replaced By: A1087801035
999
SLIDING JAW , Replaced By: A1157800083
999
TUBE , Replaced By: A1087801035
999
HOSE , 012 UP TO CHASSIS 026894,014 UP TO CHASSIS 022358, Replaced By: A1088300296
999
CLIP , Replaced By: A1089880978
999
CLIP , Replaced By: A0029884878
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
LOCK
999
LOCK FRAME TO REINFORCEMENT FRAME
999
BUSHING MOTOR TO BRACKET
999
SCREW
999
NUT RETAINER , Replaced By: A0009903931
999
FASTENER BUTTON
999
RUBBER SEAL , Replaced By: A0019876052
999
RUBBER SECTION , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0019877625
999
RUBBER PAD , Replaced By: A1107841597
999
FELT , Replaced By: A0009830198
999
FELT60X20X2 MM, ORDER BY THE METER
999
FOAM PLASTICS 10 MM, ORDER BY THE METER
999
FOAM PLASTICS , Replaced By: A0009831298
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009833598
999
CARBON BRUSH SET
999
CARBON BRUSH SET , Replaced By: A0008352575
999
GEARING , Replaced By: A0008203207
999
ELECTRIC MOTOR
999
ELECTRIC MOTOR , Replaced By: A0008201142
999
ELECTRIC MOTOR , Replaced By: A0008201142
999
FUSEA16
999
PLUG , Replaced By: A0025452428
999
FUSE BOX
999
FUSE , Replaced By: A0005458334
