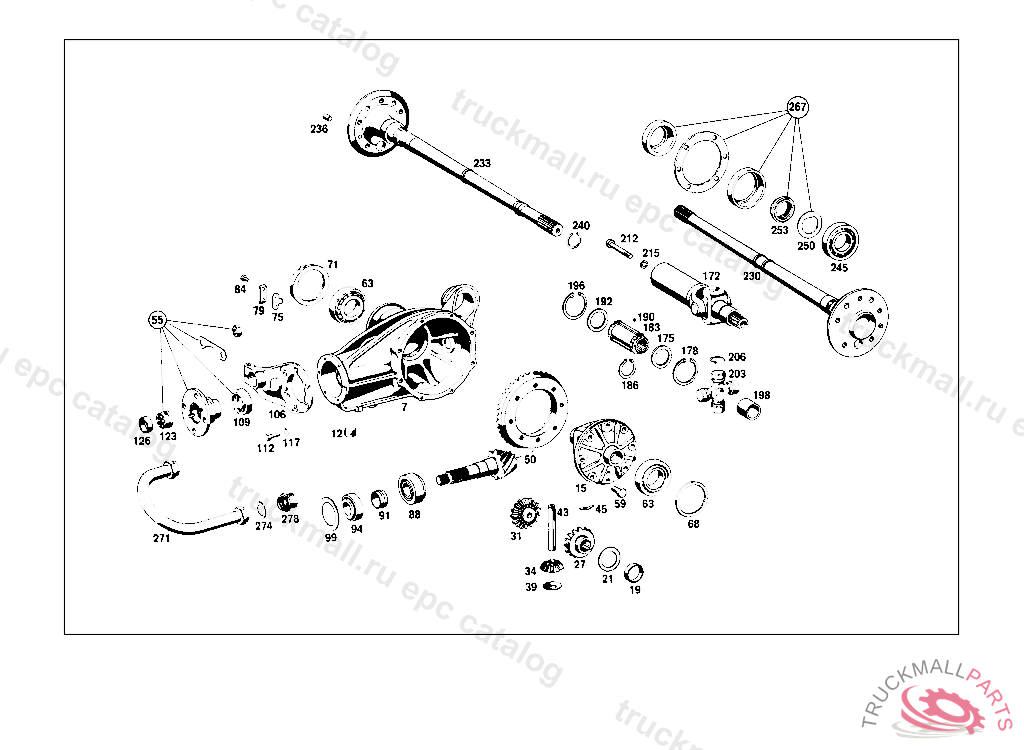

Поз.
Артикул
Описание
12
SCREW PLUG , Replaced By: A0009972632
15
DIFFERENTIAL GEAR
19
RING
21
THRUST WASHER AS REQUIRED 1.30 MM
27
DIFFERENTIAL PINION LEFT
27
SIDE GEAR , Replaced By: A1083500140
31
DIFFERENTIAL PINION LEFT
34
DIFFERENTIAL PINION
34
DIFFERENTIAL PINION , Replaced By: A1403530514
39
SPHERICAL WASHER
43
PIN
45
SPRING
55
REPAIR KIT
59
SCREW
63
TAPERED ROLLER BEARING RING GEAR BEARING
68
SPACER WASHER 1.8 MM AS REQUIRED
71
SCREW COLLAR
75
LOCK
79
LOCK
84
SCREW COVER PLATE TO COVER PLATE M 6 X 12
84
SCREW , Replaced By: N304017006018
88
TAPERED ROLLER BEARING
91
SPACER BUSHING
94
TAPERED ROLLER BEARING
99
SPACER WASHER AS REQUIRED 1.5 MM
106
COVER , 000,001,100,101 FROM REAR AXLE 000287, 010 FROM REAR AXLE 129303, 110 FROM REAR AXLE 087840
109
SEAL RING
112
SCREW CABLE HARNESS MOUNTING
117
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
123
GROOVED NUT
126
LOCK
172
JOINT
175
SPACER WASHER
178
LOCK
183
SLEEVE STEERING COLUMN BEARING, NOT FOR USE WITH MERCEDES-BENZ CAB4 375508
190
ROLLERTO 387 460 14 09
192
SPACER WASHER
196
LOCK RING AS REQUIRED 1.75 MM
198
BUSHING
203
UNIVERSAL JOINT , 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
206
SNAP RING 2.15 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
212
SCREW
215
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
230
AXLE SHAFT LEFT
233
AXLE SHAFT RIGHT
236
DOWEL PIN
240
SNAP RING , 016 FROM CHASSIS 054213, 018,019 FROM CHASSIS 059186
245
BARREL-TYPE BEARING
250
LOCK
253
GROOVED NUT
267
REPAIR KIT
271
LINE
274
SEAL RING
278
SCREW FITTING FUEL TANK BREATHING, UP TO CHASSIS 001001 EXCEPT FOR 000920,000940,000962,000965,000977,000978,000980,000981,000983,000987,000989,000991,000993,000995, 000997.
999
TAPERED ROLLER BEARING
999
SEAL RING
999
VALVE
999
AXLE HOUSING
999
RING GEAR AND PINION RATIO: 1:3.46, 003789
999
REAR AXLE TUBE LEFT
999
REAR AXLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 108.016 080478 108.018 086710 108.057,058 003381 109.018 005895 109.056 007250 111.026,027 004431, Replaced By: A1083505400
999
DIFFERENTIAL CASE
999
RING REPAIR SIZE
999
THRUST WASHER
999
BRACKET LEFT
999
BRACKET RIGHT
999
FLANGE
999
THRUST ARM RIGHT
999
RUBBER MOUNTING , 000,001,100,101 FROM REAR AXLE 000287, 010 FROM REAR AXLE 129303, 110 FROM REAR AXLE 087840
999
REPAIR KIT
999
AXLE HOUSING , Replaced By: A1113500603, +001A1123500613, +001A1123570351
999
AXLE HOUSING
999
SCREW
999
SPACER WASHER 1.9 MM AS REQUIRED
999
SPACER WASHER 2.0 MM AS REQUIRED
999
SPACER WASHER AS REQUIRED 2.1 MM
999
SPACER WASHER , Replaced By: A1123531152
999
SPACER WASHER AS REQUIRED 1.6 MM
999
SPACER WASHER AS REQUIRED 1.7 MM
999
SPACER WASHER AS REQUIRED 1.8 MM
999
SPACER WASHER 2.0 MM
999
SPACER WASHER 2.1 MM
999
SPACER WASHER 2.2 MM
999
SPACER WASHER 2.3 MM
999
SPACER WASHER 2.4 MM
999
SPACER WASHER 2.5 MM
999
SPACER WASHER 3.0 MM
999
SPACER WASHER AS REQUIRED 2.6 MM
999
SPACER WASHER AS REQUIRED 2.7 MM
999
SPACER WASHER , Replaced By: A1803513052
999
SPACER WASHER AS REQUIRED 2.8 MM
999
SPACER WASHER AS REQUIRED 3.1 MM
999
SPACER WASHER , Replaced By: A1803513152
999
LOCK
999
LOCK
999
LOCK
999
LOCK
999
THRUST WASHER AS REQUIRED 1.40 MM
999
THRUST WASHER AS REQUIRED 1.50 MM
999
THRUST WASHER AS REQUIRED 1.60 MM
999
THRUST WASHER AS REQUIRED 1.70 MM
999
SNAP RING 2.25 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.35 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.45 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.55 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
SCREW , Replaced By: N304017008021
999
SCREW PIPE CLAMP
999
CLAMP REAR AXLE TUBE
999
CLAMP REAR AXLE HOUSING
