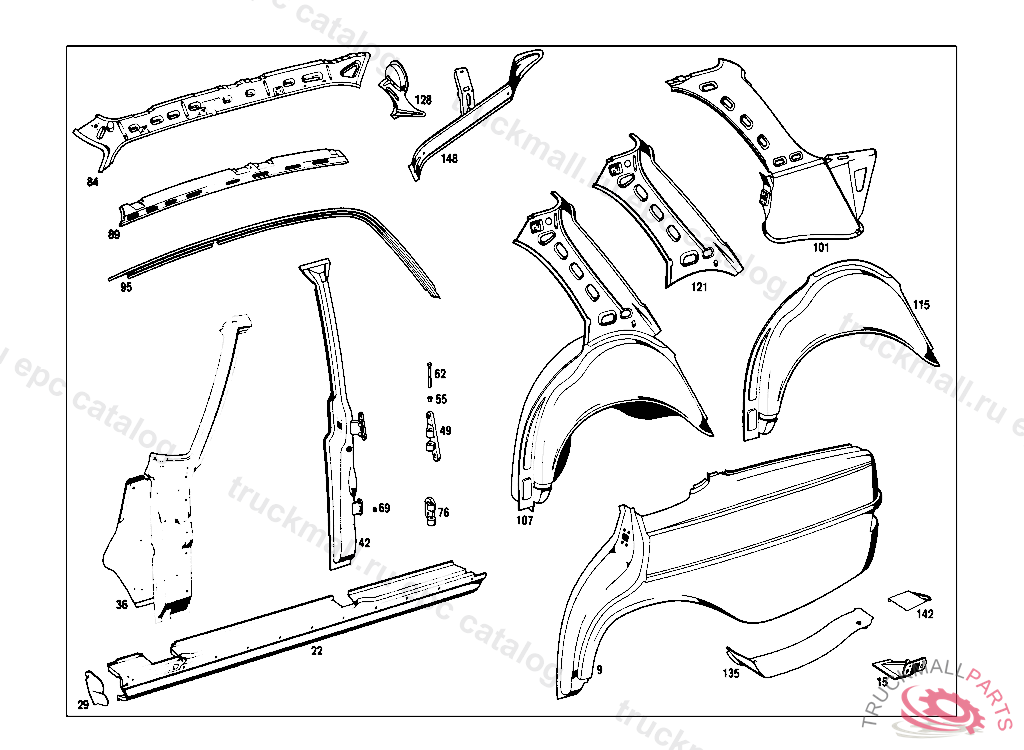

Поз.
Артикул
Описание
9
REAR FENDER LEFT
15
REINFORCEMENT LEFT
29
END PIECE LEFT
42
PILLAR CENTRAL LEFT
49
HINGE TOP LEFT, 012 FROM CHASSIS 000081,014 FROM CHASSIS 000024
55
BUSHING
62
PIN
69
GREASE NIPPLE
76
HINGE BOTTOM, 012 FROM CHASSIS 000081, 014 FROM CHASSIS 000024, 015 FROM CHASSIS 000015
84
ROOF RAIL INSIDE LEFT
89
ROOF RAIL OUTSIDE LEFT
95
ROOF RAIL LEFT
101
PILLAR OUTSIDE LEFT
107
WHEELHOUSE REAR LEFT
115
WHEELHOUSE REAR OUTSIDE LEFT
121
ROOF RAIL INSIDE LEFT
128
STRUT
142
CLAMP ON LEFT SPARE WHEEL WELL PLATE
148
STRUT
999
BOTTOM SPARE WHEEL WELL,LEFT
999
PILLAR OUTSIDE RIGHT
999
REINFORCEMENT RIGHT
999
ROOF RAIL INSIDE RIGHT
999
WHEELHOUSE REAR RIGHT
999
PILLAR RIGHT
999
PILLAR LEFT
999
PILLAR RIGHT
999
ROOF RAIL , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1096300735
999
REAR FENDER RIGHT
999
END PIECE RIGHT
999
RECESS SPARE WHEEL WELL,RIGHT
999
ROOF RAIL INSIDE RIGHT
999
WHEELHOUSE REAR OUTSIDE RIGHT
999
HINGE TOP RIGHT, 012 FROM CHASSIS 000081, 014 FROM CHASSIS 000024, 015 FROM CHASSIS 000015
999
SUPPORT OUTSIDE LEFT
999
SUPPORT OUTSIDE RIGHT
999
ROOF RAIL OUTSIDE RIGHT
999
ROOF RAIL INSIDE RIGHT
999
ROOF RAIL RIGHT
