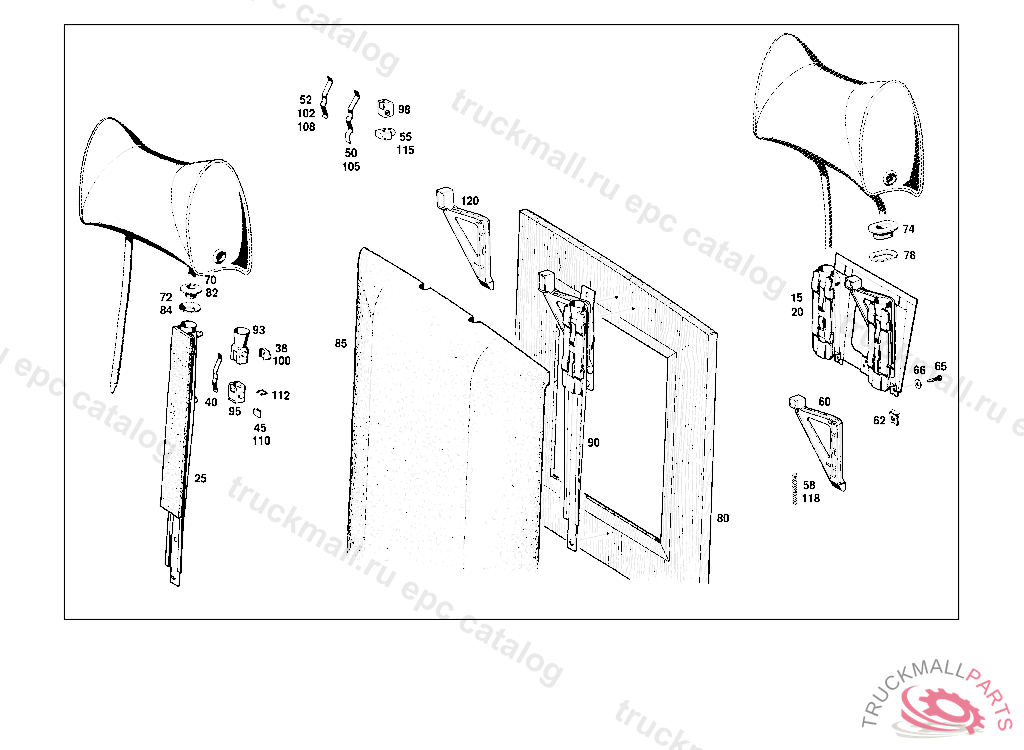

Поз.
Артикул
Описание
15
SUPPORT
20
SUPPORT
25
RAIL LEFT
38
FRICTION PIECE TOP
40
SPRING QUIDE RAIL,LEFT
40
SPRING , Replaced By: A1249750137
45
CLIP
50
SPRING , Replaced By: A1249750137
50
SPRING QUIDE RAIL,LEFT
52
SPRING , Replaced By: A1249750137
52
SPRING QUIDE RAIL,LEFT
55
SLIDE
58
SPRING
60
CONTROL MECHANISM. OPERATING MECHANISM OPERATING ROD TO GUIDE
62
LOCK , Replaced By: A1409941045
62
LOCK , Replaced By: A0009943345
62
LOCK FUEL LINE
65
SHEET METAL SCREW BRACKET MOUNTING
66
WASHER
70
EYE
72
WASHER STRAP TO REAR BACKREST
72
EYE
74
EYE , Replaced By: A1269880182
74
EYE
78
EYE , Replaced By: A1239880382
78
EYE
80
BACKREST FRAME LEFT
82
EYE , Replaced By: A1169880082
84
EYE
84
WASHER STRAP TO REAR BACKREST
85
PAD CENTRAL LEFT, NO LONGER AVAILABLE
90
RAIL LEFT
93
GUIDE TOP, NO LONGER AVAILABLE
95
GUIDE BOTTOM
98
GUIDE BOTTOM, NO LONGER AVAILABLE
100
FRICTION PIECE TOP
102
SPRING QUIDE RAIL,LEFT
102
SPRING , Replaced By: A1249750137
105
SPRING , Replaced By: A1249750137
105
SPRING QUIDE RAIL,LEFT
108
SPRING QUIDE RAIL,LEFT
108
SPRING , Replaced By: A1249750137
110
CLIP
112
CLIP
115
SLIDE
118
SPRING
120
CONTROL MECHANISM
999
WASHER
999
BACKREST FRAME RIGHT
999
PAD CENTRAL RIGHT, NO LONGER AVAILABLE
999
RAIL , Replaced By: A1009700715, +001A1009700815
999
RAIL RIGHT
999
MOUNTING MATERIAL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 107.023 10/50,12/52 000665 107.023 20/60,22/62 000685 107.043 10/50,12/52 007244 107.043 20/60,22/62 007299, Replaced By: A1079700350
999
RAIL RIGHT, HEADREST
999
HEADREST , Replaced By: A1159703950
999
SUPPORT , Replaced By: A1089701220
999
MOUNTING MATERIAL , Replaced By: A1089705350
999
MOUNTING MATERIAL
999
HEADREST , Replaced By: A1089705350
999
SUPPORT , Replaced By: A1089701220
999
RAIL , Replaced By: A1139700515, +001A1139700615
999
MOUNTING MATERIAL , Replaced By: A1139700550
999
RAIL , Replaced By: A1139700515, +001A1139700615
999
MOUNTING MATERIAL , Replaced By: A1139700550
999
RAIL LEFT
999
MOUNTING MATERIAL
999
RAIL RIGHT
999
EYE , Replaced By: A1159880482
999
RAIL , Replaced By: A1159700915, +001A1079700215
999
RAIL , Replaced By: A1159700915, +001A1079700215
999
SUPPORT , Replaced By: A1159700920
999
RAIL , Replaced By: A1079700115
999
RAIL , Replaced By: A1079700215
999
HEADREST , Replaced By: A1159703950
999
MOUNTING MATERIAL , Replaced By: A1159704050
999
MOUNTING MATERIAL , Replaced By: A1159703950
999
MOUNTING MATERIAL , Replaced By: A1159705450
999
MOUNTING MATERIAL
999
MOUNTING MATERIAL
999
EYE , Replaced By: A1169880082
999
SPACER TUBE VALVE TO BRACKET
999
EYE , Replaced By: A1269880082
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT BALL PIVOT TO LEVER
999
SCREW SWITCH TO INSTRUMENT PANEL
999
TOOTHED WASHER COVER TO COVERING,K 093739
999
TOOTHED WASHER CABLE TO FUSE BOX
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SCREW , Replaced By: N007985004107
999
SCREW
999
SCREW
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
