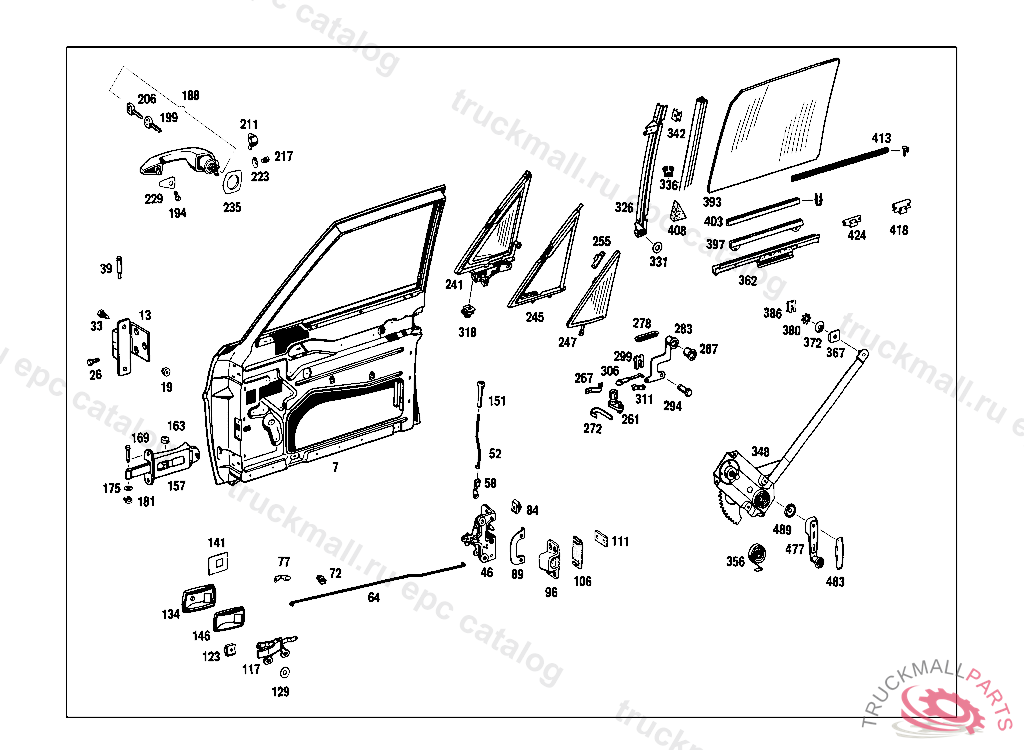

Поз.
Артикул
Описание
13
HINGE , Replaced By: A1087200137
13
HINGE LEFT FRONT DOOR
19
GREASE NIPPLE
26
SCREW , UP TO CHASSIS: 000,002,010 083223 015 097126 100,102,103,110,112 212123 115 104333
33
SCREW
33
SCREW , Replaced By: A1239900217
46
LOCK CENTRAL DOOR,001274
52
LOCKING ROD
58
LOCK PULL ROD TO DOOR LOCK
64
PULL ROD (FRONT DOOR)
72
CLIP
72
CLIP , Replaced By: A0069886378
77
LOCK PULL ROD TO DOOR LOCK
89
EDGING RIGHT
96
LOCKING EYE RIGHT, FROM CHASSIS: 010 031987 ALSO INSTALLED ON: 026127-026384 110 071329 ALSO INSTALLED ON: 057116-057347
106
PLATE 0.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
111
PLATE
117
INTERIOR HANDLE ASSEMBLY RIGHT
123
NUT RETAINER , Replaced By: A0009908391
134
ESCUTCHEON RIGHT
141
SEAL
146
INSERT RIGHT
151
KNOB , 023 116973 033 048510 123 097280 130 120563
157
DOOR CHECK
163
ROLLER
163
ROLLER , Replaced By: A3147230068
169
PIN
175
WASHER DOOR CHECK TO FRONT PANEL PILLAR
181
LOCK
188
DOOR HANDLE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
194
PIN
199
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
206
KEY SECONDARY KEY HUF, STATE LOCK NUMBER WHEN ORDERING
211
CAP
217
SCREW , Replaced By: N000912006095
217
SCREW DOOR HANDLE TO DOOR
223
DISC SPRING
229
PAD FRONT, 012 FROM CHASSIS 044562,014 FROM CHASSIS 035569
235
PAD REAR RIGHT, 012 FROM CHASSIS 044562, 014 FROM CHASSIS 035569, 015 FROM CHASSIS 002425
241
VENTILATOR WINDOW RIGHT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
245
SEAL RIGHT
247
VENTILATOR WINDOW RIGHT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
247
VENTILATOR WINDOW LEFT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
255
MOUNTING RIGHT, UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596
261
MOUNTING INSIDE
267
SPRING
272
SPRING
278
PLATE
283
FASTENER RIGHT
287
FASTENER , 012 FROM CHASSIS 058444 ALSO INSTALLED ON,SEE FOOTNOTE 056,014 FROM CHASSIS 045294 ALSO INSTALLED ON,SEE FOOTNOTE 057
294
PIN
306
ROD
311
LOCK
318
NUT RETAINER , Replaced By: A0009908391
326
GUIDE RAIL RIGHT
331
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
336
SEALING SECTION 2240 MM, ORDER BY THE METER
342
CLIP
348
WINDOW REGULATOR RIGHT, 016 FROM CHASSIS 047185,018 FROM CHASSIS 049844,019 FROM CHASSIS 051514
356
SPRING , Replaced By: A0007680905
362
WINDOW REGULATOR RAIL
367
SLIDE , Replaced By: A1155860072
372
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
380
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
393
GLASS PANE RIGHT
397
RETAINING RAIL
403
RUBBER MOULDING
408
SEAL , FROM CHASSIS: 010 076074 110 193042 017,117 000001
408
SEAL , Replaced By: A1167250198
408
SEAL , Replaced By: A1157251298
413
SEALING RAIL 2200 MM
418
CLIP
424
CLIP
489
WASHER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK , Replaced By: A1155860072
999
LOCK , Replaced By: N912002008001
999
SPRING WASHER SHIFTING CYLINDER TO YOKE
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW DOOR LINING TO REAR DOORS
999
SHEET METAL SCREW
999
SHEET METAL SCREW , Replaced By: N007982003209
999
SHEET METAL SCREW GLOVE COMPARTMENT TO INSTRUMENT PANEL
999
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
999
SHEET METAL SCREW
999
TOOTHED WASHER MASKED STOP LAMP
999
TOOTHED WASHER CABLE TO FUSE BOX
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N304017006034
999
SCREW , Replaced By: N304017006018
999
SCREW BRACKET TO AIR INTAKE PIPE
999
WASHER
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125004319
999
SCREW
999
COVERING , STATE COLOR NUMBER WHEN ORDERING
999
CRANK
999
COVERING , Replaced By: A1237600120
999
REPAIR KIT
999
MOLDED PIECE , Replaced By: A0029888378
999
COVERING REAR DOOR INTERIOR PLATE
999
SHELL , NO LONGER AVAILABLE
999
CLIP , 003030
999
CLIP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 092933 015 112061 100,102,103,110,112 238351 115 118982, Replaced By: A1159881778
999
PLATE 1.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
999
LOCKING EYE LEFT
999
LOCK WITH INTERIOR LOCKING MECHANISM,LEFT
999
REPAIR KIT , Replaced By: A1237200114
999
SLEEVE , 043 002979
999
RUBBER BUFFER 8.5 MM AS REQUIRED, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
RUBBER BUFFER 7.5 MM AS REQUIRED, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
RUBBER BUFFER PIN BUSHING
999
RUBBER BUFFER AS REQUIRED,5.5 MM, 000,001,002,003,004,005,010,011 FROM CHASSIS 066085,100,101,104,110 FROM CHASSIS 102826
999
WASHER
999
CLIP , Replaced By: A1159880078
999
RUBBER BUFFER , 010 FROM CHASSIS 050273,012 FROM CHASSIS 111521
999
PAD , Replaced By: A1237600020
999
PAD REAR LEFT, 012 FROM CHASSIS 044562,014 FROM CHASSIS 035569
999
PAD , 012 FROM CHASSIS 044562,014 FROM CHASSIS 035569, Replaced By: A1077661005
999
ESCUTCHEON LEFT
999
ESCUTCHEON , Replaced By: A1087660611, +001A1087660490
999
INSERT LEFT
999
ESCUTCHEON , 012 UP TO CHASSIS 054877 EXCEPT FOR,SEE FOOTNOTE 005,014 UP TO CHASSIS 043155 EXCEPT FOR,SEE FOOTNOTE 006, Replaced By: A1087660511, +001A1087660390
999
DOOR HANDLE WITH KEY,RIGHT, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
999
DOOR HANDLE WITH KEY,LEFT, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
999
DOOR HANDLE LESS KEY,LEFT, STATE LOCK NUMBER WHEN ORDERING
999
INTERIOR HANDLE ASSEMBLY LEFT, 000,001,004,010 FROM CHASSIS 188150,100,101,104,110 FROM CHASSIS 352119,002,003,005,011 FROM CHASSIS 031990
999
CRANK , FROM CHASSIS: 000,002,010 046471 015 047683 100,102,110 111771 103,112 112413 115 051671 005,017,105,107,108,117,119 000001, Replaced By: A1237600102
999
GARNISH MOULDING TOP RIGHT, NOT USED
999
GARNISH MOULDING TOP LEFT, NOT USED
999
GARNISH MOULDING FRONT RIGHT, NOT USED
999
GARNISH MOULDING FRONT LEFT, NOT USED
999
GARNISH MOULDING REAR RIGHT
999
GARNISH MOULDING REAR LEFT
999
GARNISH MOULDING TOP LEFT
999
GARNISH MOULDING FRONT LEFT
999
GARNISH MOULDING DOOR EDGE,LEFT
999
RAIL LEFT
999
SEAL CENTRAL PILLAR,LEFT
999
WINDOW REGULATOR LEFT, 016 FROM CHASSIS 047185,018 FROM CHASSIS 049844,019 FROM CHASSIS 051514
999
MOUNTING LEFT, UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596
999
SEAL LEFT
999
GLASS PANE LEFT CRANK OPERATED WINDOW
999
EDGING
999
PANELLING RIGHT, STATE COLOR AND CHASSIS NO.WHEN ORDERING
999
PANELLING LEFT, STATE COLOR AND CHASSIS NO.WHEN ORDERING
999
PANELLING RIGHT, STATE COLOR AND CHASSIS NOS. WHEN ORDERING
999
PANELLING LEFT, STATE COLOR AND CHASSIS NOS. WHEN ORDERING
999
GARNISH MOULDING LEFT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010467
999
PANELLING REAR LEFT
999
VENTILATOR WINDOW LEFT, 016 FROM CHASSIS 080592, 018 FROM CHASSIS 086841, 057,058 FROM CHASSIS 003450
999
PANELLING TOP LEFT
999
PANELLING FRONT LEFT
999
FASTENER LEFT
999
DOOR SHELL RIGHT
999
WELT , Replaced By: A1087202180
999
DOOR SHELL LEFT
999
VENTILATOR WINDOW , 016 UP TO CHASSIS 080591, 018 UP TO CHASSIS 086840, 057,058 UP TO CHASSIS 003049, Replaced By: A1087202055, +001A1087200427
999
MOUNTING TOP RIGHT, FROM CHASSIS 067393
999
EDGE GUARD SECTION LEFT
999
WEATHERSTRIP LEFT
999
VENTILATOR WINDOW , 016 UP TO CHASSIS 080591, 018 UP TO CHASSIS 086840, 057,058 UP TO CHASSIS 003049, Replaced By: A1087201955, +001A1087200327
999
MOUNTING LEFT, FROM CHASSIS: 000,002,010 081999 015 095545 100,102,103,110,112 209526 115 102597 UP TO CHASSIS: 015,115 200000 110 400000
999
ROD , Replaced By: A1087230269
999
GUIDE RAIL LEFT
999
ADHESIVE TAPE , Replaced By: A0019875646
999
LOCK , Replaced By: N912001006001
999
NUT RETAINER , Replaced By: A0009907191
999
NUT RETAINER , Replaced By: A3229900091
999
SCREW
999
SCREW , Replaced By: A1239900217
999
PLUG
999
WASHER , FROM CHASSIS:113.043 002980 113.044 000001
999
KEY BLANK (SECONDARY KEY) HUF
999
KEY BLANK (MASTER KEY) HUF
999
KEY HEAD
999
KEY HEAD
