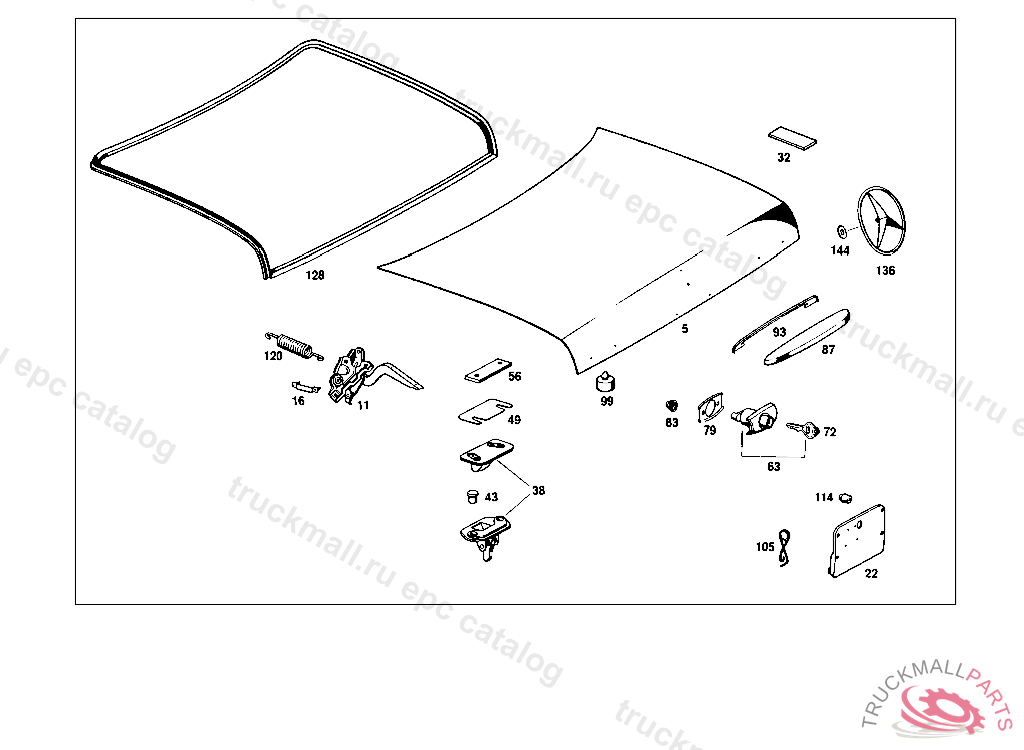

Поз.
Артикул
Описание
5
REAR LID SHELL
11
HINGE LEFT
16
PLATE
22
FLAP FILLER NECK
32
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
32
INTERMEDIATE LAYER , Replaced By: A1237580397
38
LOCK
43
RUBBER BUFFER , Replaced By: A1239870040
43
RUBBER BUFFER
49
BASE PLATE
56
PLATE
79
PAD
83
NUT
87
HANDLE
93
SHIM , Replaced By: A1087580105
99
RUBBER BUFFER
105
SPRING , Replaced By: A1087580336
114
RUBBER BUFFER , Replaced By: A1119871740
120
SPRING
128
SEAL
136
MERCEDES STAR
144
RUBBER RING
999
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
999
LOCK WORKSHOP VERSION, WITH KEY, USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM), 012 FROM CHASSIS 058444 ALSO INSTALLED ON,SEE FOOTNOTE 005,014 FROM CHASSIS 045294 ALSO INSTALLED ON,SEE FOOTNOTE 006
999
HINGE RIGHT
999
FASTENER LESS KEY, 012 FROM CHASSIS 058444 ALSO INSTALLED ON, SEE GROUP 68, FOOTNOTE 35, 014 FROM CHASSIS 045294 ALSO INSTALLED ON, SEE GROUP 68,FOOTNOTE 29, 015 FROM CHASSIS 002590 STATE LOCK NUMBER WHEN ORDERING
999
BRACE , 012 UP TO CHASSIS 073515, 016 UP TO CHASSIS 015906, 018 UP TO CHASSIS 015086, 019 UP TO CHASSIS 015295, Replaced By: A1157580897, +001A1157580997
999
PAD HANDLE TO REAR LID
999
SPRING LEFT
999
SPRING RIGHT
999
FLAP , 012 UP TO CHASSIS 041934, 014 UP TO CHASSIS 033457, 015 UP TO CHASSIS 002384, Replaced By: A1117505606
999
SPRING , Replaced By: A1087580436
999
PLATE , Replaced By: A1167500011
999
RUBBER BUFFER
999
INTERMEDIATE LAYER11 MM, FROM CHASSIS: 010 002636 015 000135 048481
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
SCREW BRACKET TO AIR INTAKE PIPE
999
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
WASHER TRUNK LID HINGE TO TAIL
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
