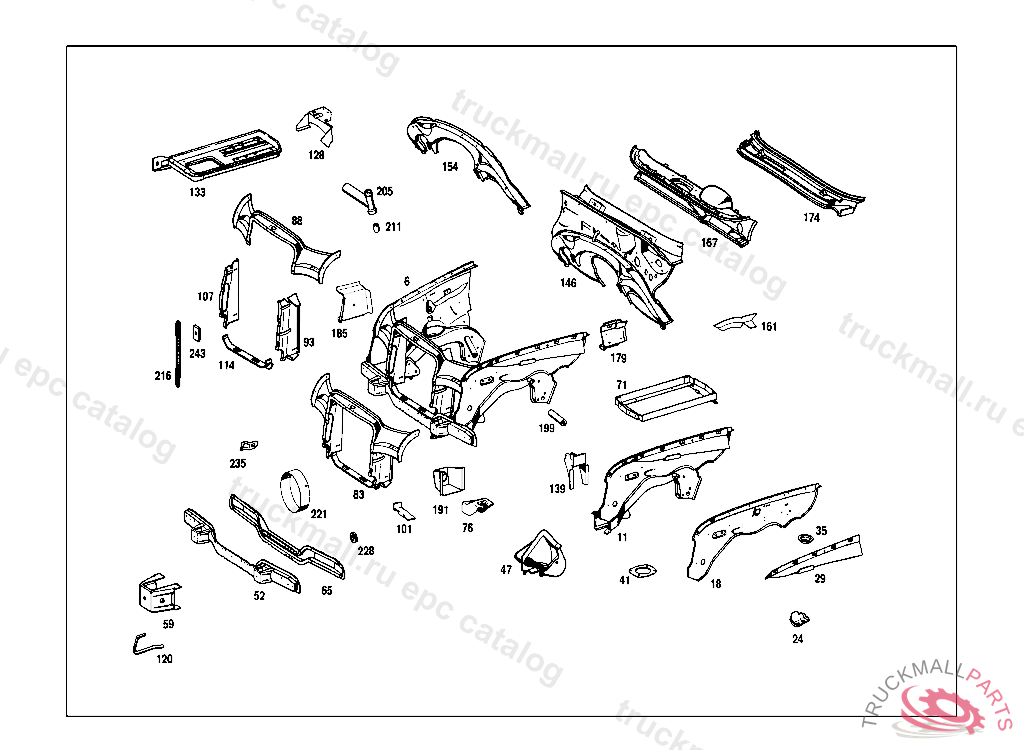

Поз.
Артикул
Описание
11
WHEELHOUSE LEFT, 016 FROM CHASSIS 027623, ALSO INSTALLED ON, SEE GROUP 24, FOOTNOTE 6, 018 FROM CHASSIS 028986, ALSO INSTALLED ON, SEE GROUP 24 , FOOTNOTE 7, 019 FROM CHASSIS 029326
18
WHEELHOUSE LEFT
24
BRACKET BRAKE HOSE, LEFT FRONT
29
STRUT FRONT LEFT
35
RETAINER
41
PLATE
47
CONSOLE FRONT AXLE LEFT BRACING
52
SUPPORT FRONT
59
CONSOLE FRONT LEFT SHOCK ABSORBER
65
CROSS MEMBER FRONT, 024/025 FROM CHASSIS 003545 ALSO INSTALLED ON 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003 543
71
REST
83
STIFFENING FRONT
88
STIFFENING FRONT, NO LONGER AVAILABLE
101
BRACING SLIDING PLATE, 016 FROM CHASSIS 057860, 018,019 FROM CHASSIS 063485
120
EYE FRONT
128
BRACKET BATTERY FRAME,REAR
133
REST
133
REST
139
ANGLE LEFT, FROM CHASSIS 007285 ALSO INSTALLED ON, SEE FOOTNOTE 31
161
ANGLE LEFT
167
INSTRUMENT PANEL SHELL
174
PANELLING
179
CONNECTION LEFT
185
BRACKET LIQUID TANK
191
MOUNTING CONTROL LINKAGE
199
TUBE
221
SHELL
228
GROMMET
235
CLAMP
243
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
243
SHEET METAL NUT , Replaced By: N913008006300
999
SHEET METAL NUT , Replaced By: N913008006300
999
BAFFLE LEFT
999
REST , 001503, Replaced By: A1086200258
999
BAFFLE RIGHT
999
STRUT FRONT RIGHT
999
FRONT PANEL , Replaced By: A1086200708
999
WHEELHOUSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1086200661
999
WHEELHOUSE RIGHT
999
STIFFENING , Replaced By: A1096200272
999
COWL , Replaced By: A1086201105
999
COWL , Replaced By: A1086201305
999
COWL
999
WHEELHOUSE RIGHT
999
FRONT PANEL
999
REINFORCEMENT , 016 FROM CHASSIS 027623 ALSO INSTALLED ON,SEE FOOTNOTE 002,018 FROM CHASSIS 028986 ALSO INSTALLED ON,SEE FOOTNOTE 005,019 FROMCHASSIS 029326
999
ANGLE RIGHT
999
COVERING
999
CONNECTION RIGHT
999
STRUT BETWEEN STIFFENING AND FRONT CROSS MEMBER
999
CONSOLE FRONT RIGHT SHOCK ABSORBER
999
CONSOLE FRONT AXLE RIGHT BRACING
999
REST , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1086200258
999
BRACKET BRAKE HOSE, LEFT FRONT
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW BRACKET TO AIR INTAKE PIPE
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017008016
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COLD START SYSTEM TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
