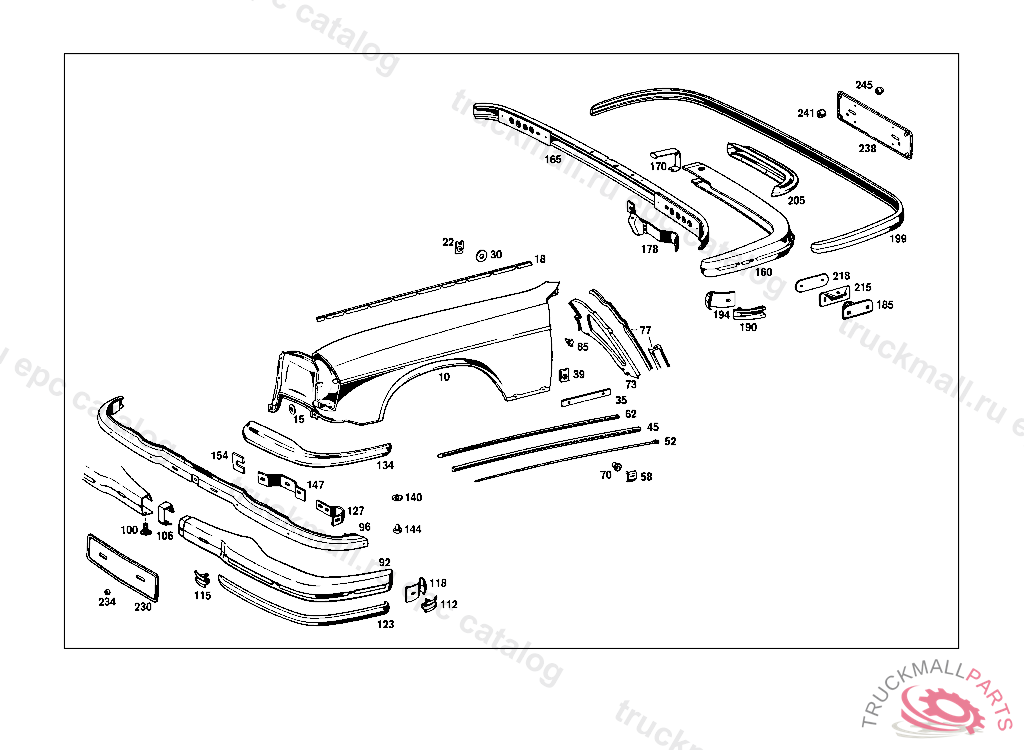

Поз.
Артикул
Описание
10
FRONT FENDER LEFT
15
WASHER
18
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
22
LOCK FRAME TO REINFORCEMENT FRAME
30
WASHER
35
PAD 2 MM
39
LOCK
45
GARNISH MOULDING LEFT
52
WELT LEFT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646
58
FASTENER BUTTON UPPER PART, 012 UP TO CHASSIS 072966,016 UP TO CHASSIS 011936,018 UP TO CHASSIS 010466,019 UP TO CHASSIS 010646
62
SEAL LEFT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646
70
FASTENER BUTTON. GROMMET , Replaced By: A0019882081
70
FASTENER BUTTON , Replaced By: A0089970381
70
GROMMET , Replaced By: A0019882081
70
FASTENER BUTTON
73
PARTITION PANEL LEFT
77
RUBBER SEAL , Replaced By: A1108840098
85
LOCK
92
FRONT BUMPER FACE BAR LEFT
96
STIFFENING STIFFENING TO FRONT BUMPER
100
SCREW BRACKET TO FENDER,K 104588
106
BUMPER JOINT COVER
123
RAIL LEFT
127
BRACKET LEFT
134
FRONT BUMPER FACE BAR UPPER PART, LEFT
140
WASHER UPPER PARTS OF BUMPER TO FRONT BUMPERS
144
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
147
BRACKET INSIDE LEFT
154
WASHER
160
REAR BUMPER FACE BAR LEFT
165
STIFFENING
170
BUMPER JOINT COVER
178
BRACKET LEFT
185
BRACKET
199
RAIL
205
REAR BUMPER FACE BAR UPPER PART, LEFT
215
BRACKET
218
INTERMEDIATE LAYER BRACKET TO REAR FENDER
230
LICENSE PLATE MOULDING FRONT
234
SPACER RING PROTECTIVE WRAPPER TO BODY, NOT USED
238
LICENSE PLATE MOULDING
238
LICENSE PLATE MOULDING , Replaced By: A1158170378
241
SPACER
245
RUBBER BUFFER , Replaced By: A1089870540
999
CLIP
999
CLIP , Replaced By: A0029888578
999
FASTENER BUTTON
999
CLIP13 MM, Replaced By: A0129884678
999
WASHER
999
PLATE , Replaced By: A0009902048
999
WASHER
999
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
999
CLIP WIRE CABLE TO AIR CLEANER
999
ADHESIVE TAPE , Replaced By: A0019875646
999
LEVER , Replaced By: A1088870274
999
REPAIR KIT , Replaced By: A1155860288
999
REPAIR KIT RADIATOR GRILLE SHELL MOUNTING MATERIAL
999
REPAIR KIT FRONT FENDER MOUNTING
999
BRACKET RIGHT
999
SEAL RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646
999
SEAL LEFT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646
999
FRONT FENDER RIGHT
999
WELT RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646
999
SEAL RIGHT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646
999
FRONT BUMPER FACE BAR RIGHT
999
GARNISH MOULDING , Replaced By: A1088801182
999
GARNISH MOULDING , Replaced By: A1088801282
999
GARNISH MOULDING RIGHT
999
REAR BUMPER FACE BAR RIGHT
999
INTERMEDIATE LAYER , Replaced By: A0039895485
999
PARTITION PANEL RIGHT
999
FRONT BUMPER FACE BAR UPPER PART,RIGHT
999
BRACKET RIGHT
999
REAR BUMPER FACE BAR UPPER PART,RIGHT
999
BRACKET INSIDE RIGHT
999
RAIL RIGHT
999
SEAL , Replaced By: A1158870298
999
LEVER RIGHT
999
MERCEDES STAR , Replaced By: A1085860388
999
PIN , Replaced By: A1085860088
999
SLEEVE , Replaced By: A1085860088
999
HOOK , Replaced By: A1085860088
999
RUBBER BUFFER , Replaced By: A1089870240
999
RUBBER BUFFER
999
RUBBER RING , Replaced By: A1109870741
999
RUBBER BUFFER
999
ENGINE HOOD , 018, 10/50, 12/52 UP TO CHASSIS 000200
999
INSERT ENGINE HOOD CATCH UPPER PART TO HOOD FRONT BRACKET
999
SUPPORT RIGHT
999
SEAL 770 MM ORDER BY THE METER
999
WASHER
999
RUBBER RING
999
RUBBER RING
999
GARNISH MOULDING , Replaced By: A1168880185
999
RADIATOR GRILLE SHELL , Replaced By: A1145860288
999
REPAIR KIT , UP TO CHASSIS: 111.024,025 003544, EXCEPT FOR: 003479,003498,003515-003519,003521,003522,003524,003530,003532-003534,003536-003543.
999
GARNISH MOULDING , Replaced By: A1118885385
999
WASHER , Replaced By: N000125008417
999
SEAL RING
999
GARNISH MOULDING TRANSVERSE
999
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SCREW , FROM CHASSIS: 000,002,010 037518 015 035157 100,102,103,110,112 085746 115 039046 UP TO CHASSIS: 015 200000 110 400000 115 200000
999
SCREW
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000433005304
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
LOCK WASHER TAIL LAMP TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
WASHER BOOT TO CAB FLOOR
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT TACHOGRAPH TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032008006
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SHEET METAL SCREW6.3X16
999
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
999
SHEET METAL SCREW HOSE TO FIRE WALL
999
SHEET METAL SCREW CONTROL UNIT TO CAB B 5.5X19
999
SHEET METAL SCREW FRONT FENDER TO FRONT STIFFENING
999
SCREW ELECTRIC CABLE TO FUSE BOX
999
SCREW
999
SCREW
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
SCREW PUMP TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
