Поз.
Артикул
Описание

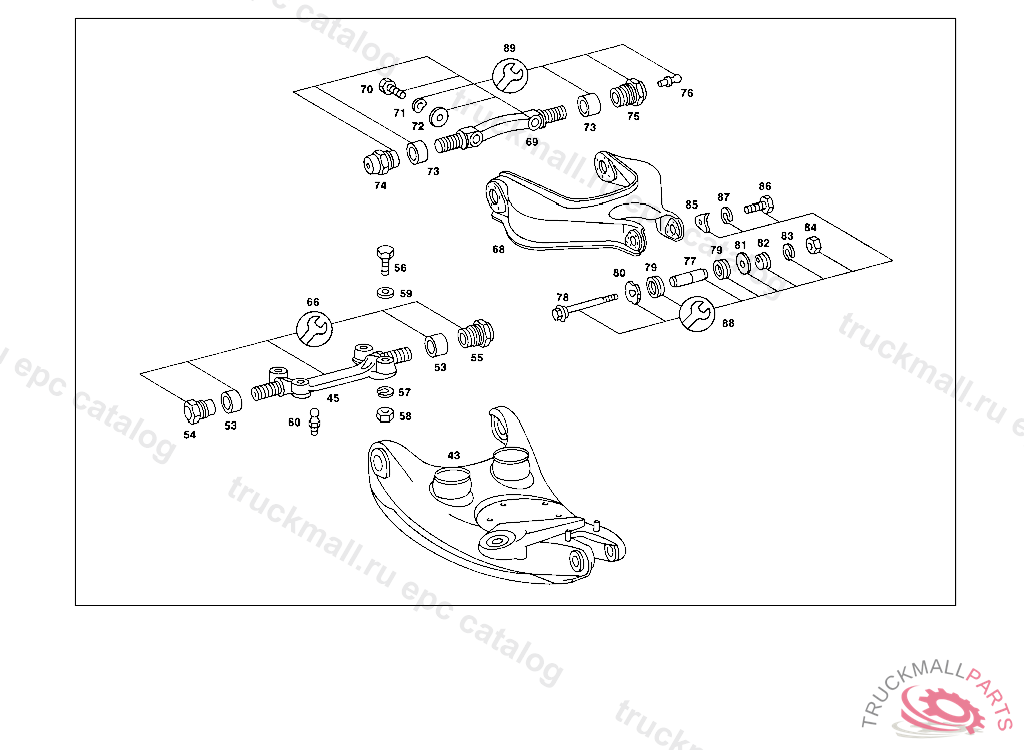

43
TRANSVERSE CONTROL ARM BOTTOM LEFT, 016 FROM CHASSIS 000457
43
TRANSVERSE CONTROL ARM BOTTOM RIGHT, 016 FROM CHASSIS 000457
45
PIN LOWER CONTROL ARMS
53
SEAL RING
54
SCREW COLLAR THREAD O. D. 29.9 MM
55
SCREW COLLAR THREAD O. D. 30.9 MM
56
SCREW
57
LOCK WASHER FITTING TO BRACKET
58
NUT , Replaced By: N308673012002
58
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
59
WASHER
60
GREASE NIPPLE INTERMEDIATE LEVER
66
REPAIR KIT LOWER CONTROL ARM PIVOT PIN
68
TRANSVERSE CONTROL ARM TOP
69
PIN
70
SCREW
70
SCREW , Replaced By: A1089900801
71
LOCK
72
WASHER HUB CAP TO BRACKET
73
SEAL RING
74
SCREW COLLAR THREAD O. D. 29.9 MM
75
SCREW COLLAR THREAD O. D. 30.9 MM
76
GREASE NIPPLE FOR SPRING
77
SCREW COLLAR
78
PIN
79
SEAL RING
80
WASHER
81
WASHER
82
ECCENTRIC BUSHING
83
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
84
NUT
84
NUT , Replaced By: N304032010002
85
LOCK
86
SCREW COVER PLATE TO COVER PLATE M 6 X 10
86
SCREW , Replaced By: N304017006034
87
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
88
REPAIR KIT UPPER TRANSVERSE CONTROL ARM
89
REPAIR KIT UPPER CONTROL ARM PIVOT PIN
999
TIE ROD , Replaced By: A1073300103, +002N913002010002
999
TIE ROD , NO LONGER AVAILABLE
999
HALF FRONT AXLE RIGHT, 016 FROM CHASSIS 000457 018 FROM CHASSIS 006250, 056 FROM CHASSIS 008681 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
HALF FRONT AXLE LEFT, 016 FROM CHASSIS 000457 018 FROM CHASSIS 006250, 056 FROM CHASSIS 008681 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
HALF FRONT AXLE , 016 FROM CHASSIS 000457 018 UP TO CHASSIS 006249, 056 UP TO CHASSIS 008680, 057 UP TO CHASSIS 000952, Replaced By: A1093301198, +001A0005867242
999
HALF FRONT AXLE , 018 UP TO CHASSIS 006249, 056 UP TO CHASSIS 008680, Replaced By: A1093301098, +001A0004206720
999
STEERING KNUCKLE RIGHT
999
BALL JOINT , 003 114309 007 106209 093 012242 102,103 359715 105 289849 183 023856 190 027445 193 012550 200 125617 280 005879 283 013383 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678, Replaced By: A0003385010, +001N913002010002
999
BALL JOINT , Replaced By: A0003385210, +001N913002010002
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING TOP, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BOOT , Replaced By: A0003381397
