Поз.
Артикул
Описание

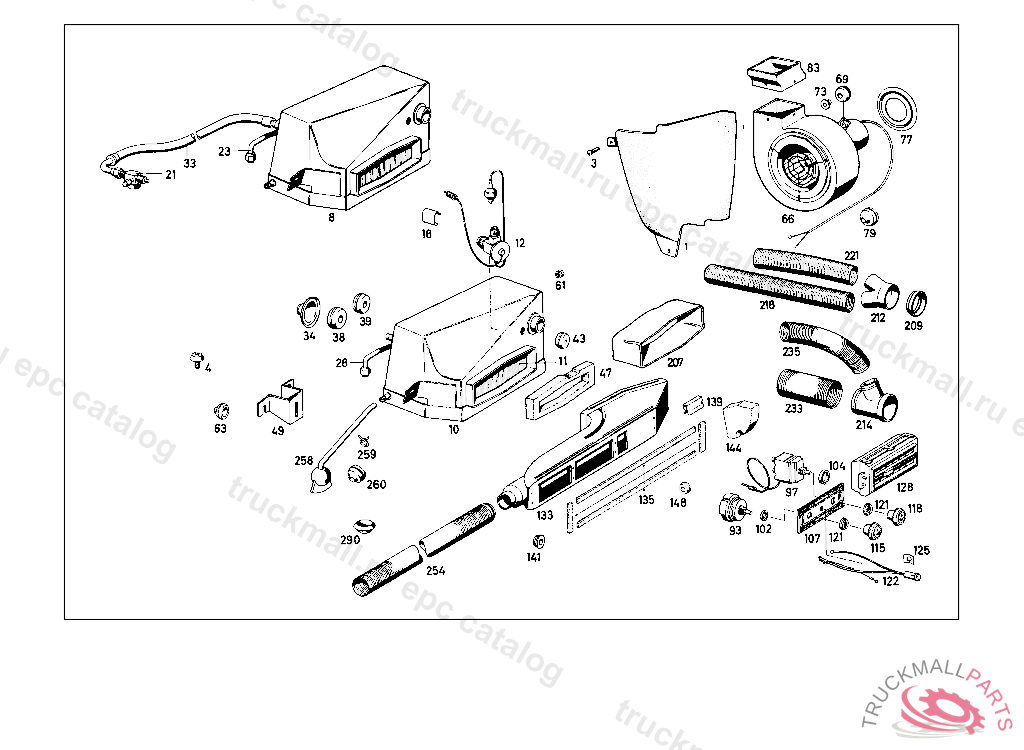

1
PANELLING , Replaced By: A1096802480
3
SHEET METAL SCREW BRACKET TO FLOOR PLATE
3
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
4
SCREW , FROM CHASSIS:108.016 065053 108.018 070917 108.019 068743 109.018 005105 111.024,025 005034
8
EVAPORATOR
10
EVAPORATOR
11
EVAPORATOR
12
VALVE
18
CLIP
21
VALVE
23
PIPE LINE
28
PIPE LINE
33
HOSE
34
GROMMET
38
GROMMET
39
GROMMET
43
GROMMET
47
FRAME , FROM CHASSIS:108.016 027860 108.018 029002 108.019 027429 109.016 001756 109.018 001858
49
ANGLE
61
NUT
63
GROMMET
66
BLOWER
69
GROMMET
73
BUSHING
77
GROMMET
79
GROMMET BLINKER LAMP BRANCH-OFF
79
GROMMET BLINKER LAMP BRANCH-OFF
83
DUCT
93
SWITCH BLOWER
97
SWITCH BLOWER
102
WASHER
104
WASHER
107
PLATE
115
KNOB , FROM CHASSIS:108.016 054537 108.018,019 059641 108.067,068 000001 109.057 000001
118
KNOB , FROM CHASSIS:108.016 054537 108.018,019 059641 108.067,068 000001 109.057 000001
121
ESCUTCHEON , FROM CHASSIS:108.016 054537 108.018,019 059641 108.067,068 000001 109.057 000001
122
READING LAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1088200952
125
LOCK
128
AIR DISTRIBUTOR , FROM CHASSIS:108.016 10/50,12/52 077316 108.016 20/60,22/62 079916 108.018,019 10/50,12/52 084173 108.018 20/60,22/62 086152
133
INTERMEDIATE PIECE , FROM CHASSIS:108.016 027860 108.018 029002 108.019 027429 109.016 001756 109.018 001858
135
FOAM PLASTICS FRONT ROOF RAIL
135
FOAM PLASTICS , Replaced By: A0009833598
139
CLIP
141
EXPANSION PLUG IN FLOOR,FRONT
144
SEAL , FROM CHASSIS:108.016 056345 108.018,019 062009 109.018 004578
148
GROMMET CAB ROOF
207
STRAP
209
INTERMEDIATE PIECE
212
INTERMEDIATE PIECE
214
INTERMEDIATE PIECE
218
HOSE
221
HOSE
233
HOSE
235
HOSE
254
HOSE
258
HOSE
259
CLAMP , UP TO CHASSIS: 108.016 054249 108.018,019 059244 109.016 UNTIL PRODUCTION STOP
260
GROMMET
290
EXPANSION PLUG
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
WASHER , Replaced By: N009021006208
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021005205
999
SCREW , Replaced By: N007985004107
999
SHEET METAL SCREW , Replaced By: N000000000459
999
SHEET METAL SCREW , Replaced By: N007981004339
999
SHEET METAL SCREW , Replaced By: N007981003214
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SHEET METAL SCREW BRACKET MOUNTING
999
TAPPING SCREW
999
LOCK PLATE
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET TO TAIL LAMP BRACKET
999
WASHER
999
SPRING WASHER CABLE TO ALTERNATOR
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
999
SCREW WIRE CABLE
999
BUSHING
999
LOOM TIE
999
LOOM TIE , Replaced By: A1149970290
999
LOOM TIE , Replaced By: A1149970590
999
CLAMP WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET,RIGHT, 000,001,004,010 FROM CHASSIS 114258,100,101,104,110 FROM CHASSIS 191759
999
WIRE CABLE
999
HOSE , Replaced By: A1088313688
999
HOSE , Replaced By: A1088300596
999
GROMMET
999
FILTER LIQUID TANK, ALSO APPLICABLE TO VERSION 55705/11-/62
999
INTERMEDIATE PIECE , 108.016,018,019 UNTIL PRODUCTION STOP 109.016 UNTIL PRODUCTION STOP, Replaced By: A1088301124, +001A1088311642
999
FRAME RIGHT, 012 FROM CHASSIS 013671 ALSO INSTALLED ON,SEE FOOTNOTE 047 014 FROM CHASSIS 010761 ALSO INSTALLED ON,SEE FOOTNOTE 048
999
HOSE
999
HANDLE , 012 FROM CHASSIS 013671, ALSO INSTALLED ON, SEE FOOTNOTE 19, 014 FROM CHASSIS 010761, ALSO INSTALLED ON, SEE FOOTNOTE 6, 015 F ROM CHASSIS 001082, ALSO INSTALLED ON, SEE FOOTNOTE 35
999
AIR DUCT RIGHT SUMMER VENTILATION DUCT, 012 FROM CHASSIS 013671, ALSO INSTALLED ON, SEE FOOTNOTE 19, 014 FROM CHASSIS 010761, ALSO INSTALLED ON, SEE FOOTNOTE 6, 015 F ROM CHASSIS 001082, ALSO INSTALLED ON, SEE FOOTNOTE 35
999
MOUNTING RIGHT, 012 FROM CHASSIS 013671, ALSO INSTALLED ON, SEE FOOTNOTE 19, 014 FROM CHASSIS 010761, ALSO INSTALLED ON, SEE FOOTNOTE 6, 015 F ROM CHASSIS 001082, ALSO INSTALLED ON, SEE FOOTNOTE 35
999
ORNAMENTAL COVER , ENCLOSE SAMPLE OF VENEER WHEN ORDERING
999
KNOB , Replaced By: A1088210858
999
KNOB , Replaced By: A1088210758
999
KNOB , UP TO CHASSIS: 108.016 054536 108.018,019 059640 109.016 UNTIL PRODUCTION STOP, Replaced By: A1088210558, +002A1088210059
999
ELECTRIC CABLE (IN AIR DUCT)
999
FASTENER 92 MM AIR DUCT TO NOZZLE SUMMER VENTILATION, 012 FROM CHASSIS 058444 ALSO INSTALLED ON,SEE FOOTNOTE 044,014 FROM CHASSIS 045294 ALSO INSTALLED ON,SEE FOOTNOTE 045 ORDER BY THE METER
999
HOSE , Replaced By: A1088311988
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
NUT , UP TO CHASSIS: 108.016 054536 108.018,019 059640 109.016 UNTIL PRODUCTION STOP
999
GROMMET , Replaced By: A0009972081
999
LOCK , UP TO CHASSIS: 023 101032 073 106627, FEDERAL, EXCEPT FOR: 105923,106460,106520,106538,106539,106619. 073 106624, CALIFORNIA, EXCEPT FOR: 106459
999
WIRE SPIRAL , ORDER BY THE METER
