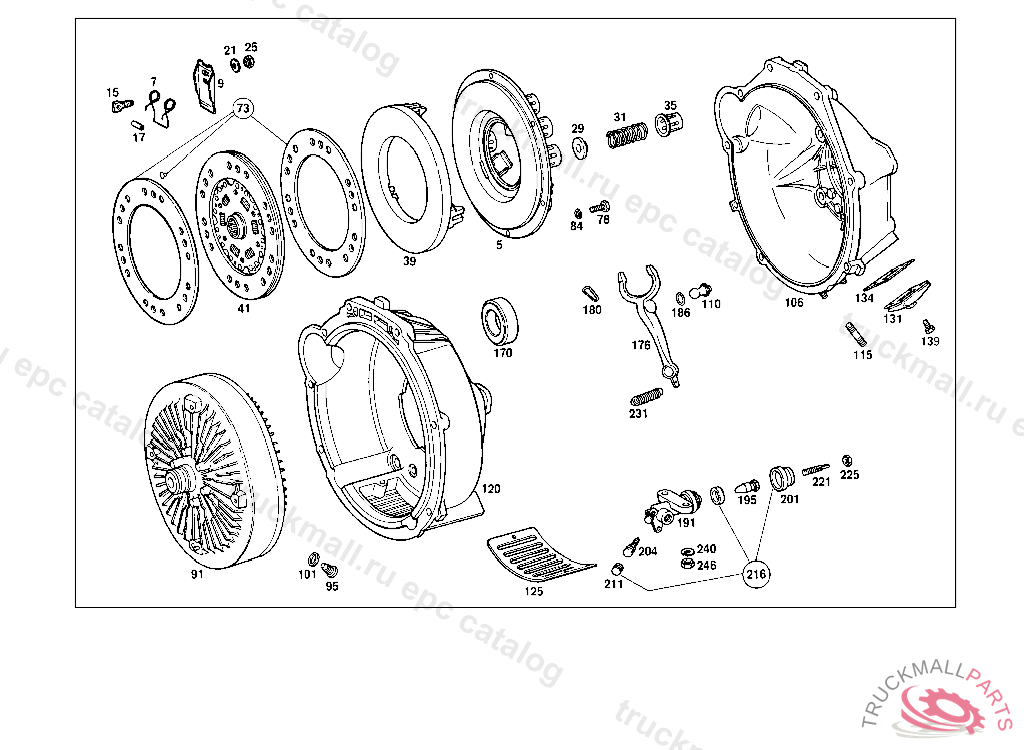

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
SPRING
9
RELEASE LEVER
15
PIN
17
CLAMPING SLEEVE
21
SPACER RING
25
NUTTO 001 250 03 04
25
NUT , Replaced By: A0002522772
29
WASHER
31
PRESSURE SPRING 50 MM LONG
35
SLEEVE
39
CLUTCH PRESSURE PLATE
41
CLUTCH DISC , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
73
REPAIR KIT CLUTCH LINING
78
SCREW PIPE CLAMP
78
SCREW , Replaced By: N304017008021
84
LOCK WASHER TAIL LAMP TO BRACKET
91
HYDRAULIC CLUTCH , 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
95
SCREW PLUG
101
SEAL RING
106
HOUSING
120
HOUSING HYDRAULIC CLUTCH
125
COVER PLATE
131
BOOT
134
SEAL HOLDER
139
SCREW COVER PLATE TO COVER PLATE M 6 X 12
139
SCREW , Replaced By: N304017006018
170
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
176
RELEASE YOKE
180
SPRING
186
SNAP RING
191
SLAVE CYLINDER
195
PIN
201
BOOT , 000,001,004,010,016 UP TO CHASSIS 179 190, 100,101,104,110,116 UP TO CHASSIS 330147
204
BLEEDER VALVE
211
PROTECTIVE CAP , Replaced By: A0004217187
211
PROTECTIVE CAP ,5 962906
216
REPAIR KIT , 000,001,004,010,016 FROM CHASSIS 179 191, 100,101,104,110,116 FROM CHASSIS 330148
221
ROD
225
NUT
225
NUT , Replaced By: N304035008001
231
SPRING
240
LOCK WASHER TAIL LAMP TO BRACKET
246
NUT
999
CLUTCH DISC , Replaced By: A0092509203
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SLEEVE
999
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RIVET LINING WITH INTERMEDIATE SPRING
999
CLUTCH LINING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
PRESSURE SPRING CLUTCH PRESSURE PLATE
999
CLUTCH LINING , Replaced By: A1085860025
999
THRUST WASHER
999
PRESSURE SPRING , Replaced By: A0002524120
999
RELEASE LEVER , ON SPECIAL REQUEST, H.D. CLUTCH
999
BOOT , 000,001,004,010,016 FROM CHASSIS 179 191, 100,101,104,110,116 FROM CHASSIS 330148 NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
REPAIR KIT , 000,001,004,010,016 UP TO CHASSIS 179 190, 100,101,104,110,116 UP TO CHASSIS 330147
999
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
999
CLUTCH DISC , Replaced By: A0102504903
999
CLUTCH DISC , Replaced By: A0182508903
999
CLUTCH DISC ASBESTOS-FREE LINING
999
REPAIR KIT ON CLUTCH END, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RELEASE BEARING
999
RELEASE BEARING , Replaced By: A1102500015
999
CLUTCH LINING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RELEASE BEARING
999
RELEASE BEARING , ON SPECIAL REQUEST, H.D. CLUTCH
999
HYDRAULIC CLUTCH , 000,001,004,010,016 FROM CHASSIS 130558, 100,101,104,110,116 FROM CHASSIS 225648
999
REPAIR KIT CLUTCH LINING, ON SPECIAL REQUEST, H.D. CLUTCH TO 621 250 00 03,000 250 62 03/67 03
999
RELEASE COLLAR , 000,001,010 UP TO CHASSIS 081440, 100,101,110 UP TO CHASSIS 128633
999
RELEASE BEARING , Replaced By: A1112500115
999
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
WASHER BRACKET TO REAR CROSS MEMBER
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
999
STUD
999
SCREW CONNECTOR TO EXHAUST MANIFOLD
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017012002
999
NUT STRAP TO SUPPORT,5 149419
999
CLAMPING SLEEVE
999
SEAL RINGTO 001 431 72 14
999
SCREW PUMP TO BRACKET
999
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
999
LOCK WASHER FITTING TO BRACKET
