Поз.
Артикул
Описание
6

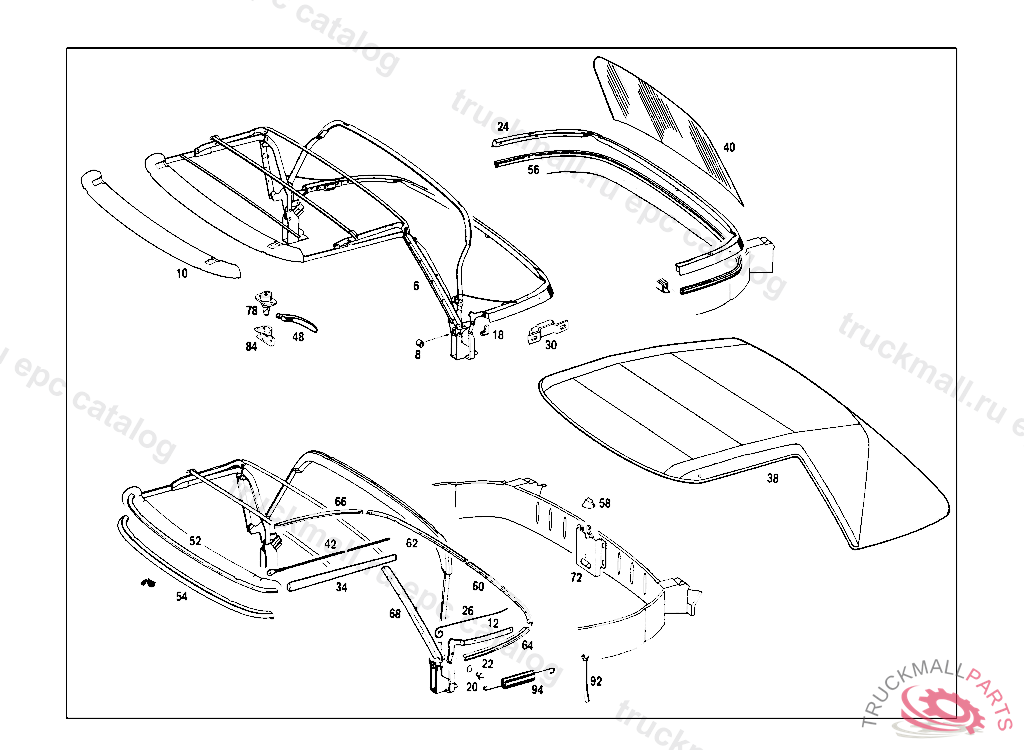

FOLDING TOP FRAME ASSY ,044 003228042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357, Replaced By: A1137700702, +010A1137720160
6
FOLDING TOP FRAME ASSY LESS COVER,044 003229
6
FOLDING TOP FRAME ASSY LESS COVER
8
SPACER TUBE FOR SUBSEQUENT CONVERSION ONLY
10
FOLDING TOP FRAME FRONT CROSS
12
BRACKET ,042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357, Replaced By: A1137701814
12
BRACKET ,042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357, Replaced By: A1137701714
12
BRACKET RIGHT,044 003228
12
BRACKET LEFT,044 003228
18
BOOT
18
BOOT ,042 009667, Replaced By: A1077720096
20
SCREW
22
WASHER , Replaced By: A1139901040
22
WASHER
24
CLAMP ,042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
26
DEFLECTOR RIGHT,043 000003042 002175- 019358 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
26
DEFLECTOR , Replaced By: A1137740365
30
FOLDING TOP CATCH RIGHT,043 000003042 019358 EXCEPT FOR: 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
30
FOLDING TOP CATCH LEFT,043 000003042 019358 EXCEPT FOR: 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
34
PAD LATERAL
38
COVER FOLDING TOP, OUTSIDE, STATE COLOR AND CHASSIS NUMBER WHEN ORDERING043 000004042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
38
COVER
40
GLASS PANE
42
PULL
48
LOCKING HANDLE ,043 005089044 000007-012192
52
SEALING RAIL FOLDING TOP CROSS FRAME
54
SPOILER , Replaced By: A1137951222
54
SEAL FOLDING TOP CROSS FRAME
56
SEAL 2000 MM
56
RUBBER SEAL , Replaced By: A1137790022
58
SEAL
60
RAIL CENTRAL LEFT REAR
60
RAIL , Replaced By: A1137790328
62
RAIL CENTRAL RIGHT REAR
64
RAIL LEFT REAR
66
RAIL RIGHT REAR
68
RAIL LEFT FOLDING TOP PILLAR
72
FASTENER
78
FASTENER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1137701063, +001A1137700963, +002A1137700264, +002A1137760917
92
HOSE
94
SPRING LATERAL REAR LEFT AND RIGHT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
COUNTERSUNK WASHER , Replaced By: N900056006001
999
COUNTERSUNK WASHER PULLS TO FABRIC RETAINING RAILS AT FOLDING TOP PILLARS
999
COUNTERSUNK WASHER
999
SPRING WASHER
999
NUT SPRING-LOADED PUSH ROD
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW , Replaced By: N000966004106
999
SHEET METAL SCREW
999
SHEET METAL SCREW , Replaced By: N007982003203
999
SHEET METAL SCREW , Replaced By: N007982003238
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW , Replaced By: N007982002212
999
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
999
SHEET METAL SCREW , Replaced By: N007981003323
999
SHEET METAL SCREW DEFROSTER NOZZLE TO BODY
999
SHEET METAL SCREW BRACKET TO CAB
999
TAPPING SCREW WARNING BUZZER
999
TAPPING SCREW , Replaced By: N007516004400
999
TOOTHED WASHER , Replaced By: N006797008120
999
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
999
TOOTHED WASHER
999
TOOTHED WASHER
999
TOOTHED WASHER MASKED STOP LAMP
999
SCREW HANDLE TO LID
999
SCREW , Replaced By: N000966004003
999
SCREW REFLECTOR TO BRACKET
999
SCREW
999
NUT BALL PIVOT TO LEVER
999
NUT
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017006018
999
LOCK WASHER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER PROTECTIVE PLATE TO FRONT EXHAUST PIPE
999
SCREW GUIDE BEARINGS TO FRONT PANEL FRAME
999
SCREW ,043 000003042 002175- 019358 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
999
INTERMEDIATE LAYER FOLDING TOP FRAME ASSEMBLY TO CONSOLE, 005089
999
RAIL RIGHT FOLDING TOP PILLAR
999
FOLDING TOP TOTAL RANGE OF DELIVERY, FOR SUBSEQUENT CONVERSION FROM COUPE TO ROADSTER, NOT FOR USE WITH REAR SEAT BENCH042 019359 ALSO INSTALLED ON 019020, 019113, 019136, 019138, 019196, 019200, 019202- 019204,019218, 019220, 019222- 019225, 019243, 019244, 019247- 019254, 019258, 019266- 019268, 019271, 019273, 019277, 019280- 019289,019292, 019293, 019295- 019300, 019303- 019305, 019312- 019318, 019320, 019321, 019323- 019328, 019330- 019337, 019342, 019343,019348- 019357
999
FASTENER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1137700963, +001A1137701063, +002A1137700264, +002A1137760917
999
IMITATION LEATHER FOR BRACKET, STATE COLOR NUMBER WHEN ORDERING ORDER BY THE METER
999
SCREW
999
WASHER , FROM CHASSIS: 034089, ALSO INSTALLED ON: 033673,033706,033709,033716,033736,033765,033914,033922,033926,033930,033931,033934,033936,033938, 033939,033941-033951,033953,033955,033956,033959,033960,033962,033964,033966,033967,033969-033998, 034000-034010,034012-034022,034024-034087. 050734
999
WASHER FOLDING TOP LOCK TO FOLDING TOP CASE, CENTER
999
IMITATION LEATHER , Replaced By: A0019832986
999
FOAM PLASTICS FRONT ROOF RAIL
999
FOAM PLASTICS , Replaced By: A0009833598
