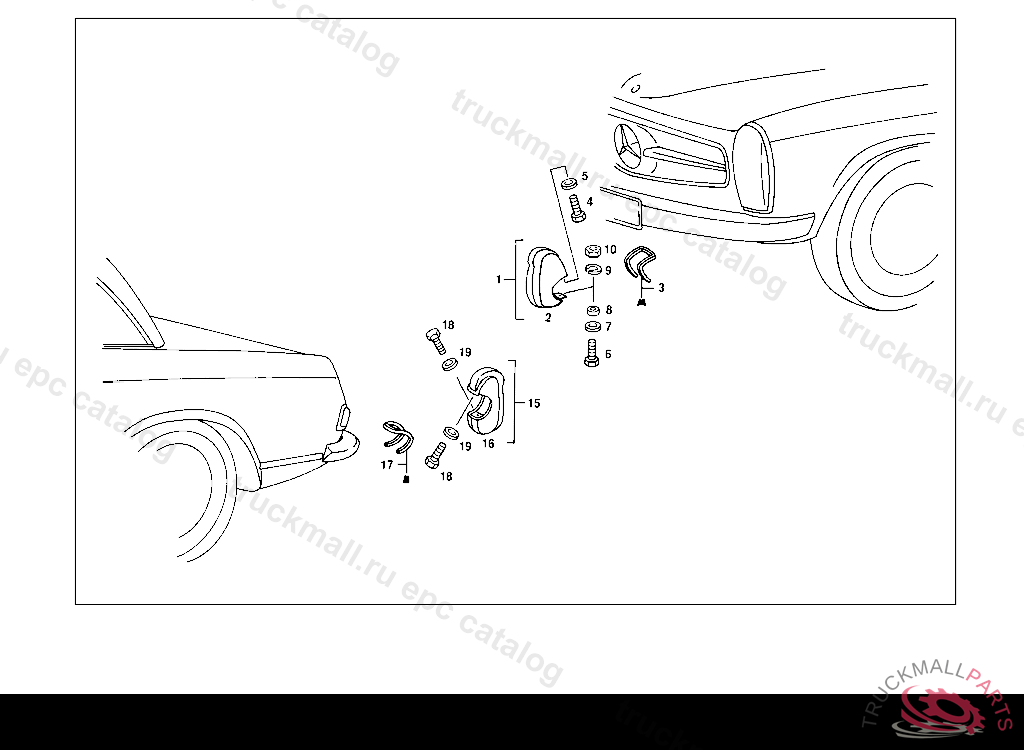

Поз.
Артикул
Описание
1
BUMPER GUARD RANGE OF DELIVERY
2
BUMPER GUARD FRONT LEFT
3
RUBBER PAD *** 350 MM, ORDER BY THE METER
4
SCREW BRACKET TO SIDE MEMBER
5
WASHER , Replaced By: N009021010209
5
WASHER BRACKET TO COVERING
6
SCREW COVER PLATE TO BRACKET
7
WASHER COMPRESSED AIR LINE TO BRACKET
7
WASHER , Replaced By: N009021006208
8
SPACER
9
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
10
NUT BALL PIVOT TO LEVER
15
BUMPER GUARD RANGE OF DELIVERY, NO LONGER AVAILABLE,ORDER INDIVIDUAL PARTS
16
BUMPER GUARD REAR
17
RUBBER PAD *** 350 MM, ORDER BY THE METER
18
SCREW BRACKET TO SIDE MEMBER
19
WASHER BRACKET TO COVERING
19
WASHER , Replaced By: N009021010209
999
LICENSE PLATE LAMP RIGHT, UP TO CHASSIS: 110.010 130557 110.110 225647 111.010 069692
999
BUMPER GUARD FRONT RIGHT OR REAR LEFT
999
REAR BUMPER FACE BAR REAR RIGHT, UP TO CHASSIS: 110.010 130557 110.110 225647 111.010 069692
999
BUMPER GUARD FRONT RIGHT
999
REAR BUMPER FACE BAR REAR RIGHT
999
REAR BUMPER FACE BAR OUTSIDE RIGHT
999
WASHER
999
PLUG , Replaced By: A1169971181
999
GROMMET , UP TO CHASSIS: 017 004991 117 007504
999
BUMPER GUARD REAR RIGHT, UP TO CHASSIS: 110.010 130557 110.110 225647 111.010 069692
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW COVER PLATE TO BRACKET
999
NUT , Replaced By: N304032008006
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BULB12 V/10 W
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
