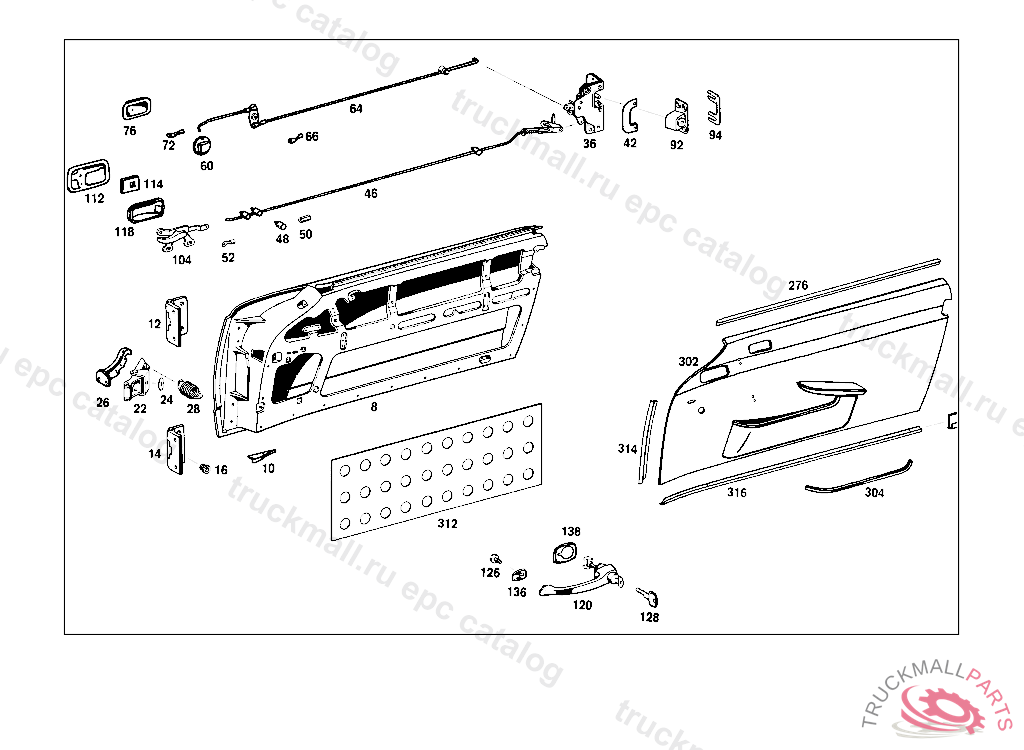

Поз.
Артикул
Описание
8
DOOR SHELL , Replaced By: A1137201005
8
DOOR SHELL , Replaced By: A1137200905
8
DOOR SHELL , 043 002979 EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A1137200805
8
DOOR SHELL , 002979 EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A1137200705
8
DOOR SHELL LEFT
8
DOOR SHELL RIGHT
10
RETAINING RAIL BOTTOM LEFT FOR DOOR SEAL
10
RETAINING RAIL BOTTOM RIGHT FOR DOOR SEAL
12
HINGE TOP LEFT
12
HINGE , Replaced By: A1137200937
14
HINGE , Replaced By: A1137200938
14
HINGE BOTTOM LEFT
16
GREASE NIPPLE
22
DOOR CHECK
24
WASHER DOOR CHECK TO DOOR
26
CAM
28
SPRING
36
LOCK LEFT AT CENTRAL SIDE DOOR,001274
36
LOCK CENTRAL DOOR,001274
36
DOOR LOCK LEFT
36
LOCK RIGHT
36
LOCK WITH INTERIOR LOCKING MECHANISM,RIGHT
36
DOOR LOCK RIGHT
36
LOCK LEFT
36
LOCK WITH INTERIOR LOCKING MECHANISM,LEFT
42
EDGING FOR DOOR LOCK LEFT
42
EDGING RIGHT COVER PLATES BETWEEN LOCKS AND DOOR LINING
46
ROD , 043 FROM CHASSIS 002980
48
MOLDED PIECE , 043 002979
50
SLEEVE , 043 002979
52
LOCK PULL ROD TO DOOR LOCK
60
DOOR LOCKING DEVICE
64
DOOR LOCKING DEVICE LEFT, 043 002980
64
DOOR LOCKING DEVICE RIGHT, 043 002980
66
LOCK PULL ROD TO DOOR LOCK
72
LOCK PULL ROD TO DOOR LOCK
72
LOCK
76
ESCUTCHEON
92
LOCKING EYE RIGHT
92
LOCKING EYE LEFT
92
LOCKING EYE LEFT
92
LOCKING EYE RIGHT
94
PLATE 2.6 MM
94
PLATE 2.0 MM 2.0 MM, TO BE ADAPTED DURING ASSEMBLY
94
PLATE , Replaced By: A1007230211
104
INTERIOR HANDLE ASSEMBLY LEFT FRONT DOOR, 000,001,004,010 FROM CHASSIS 130558-188149,100,101,104,110 FROM CHASSIS 225648-352118,002,003,005,011 UP TO CHASSIS 031989
104
INTERIOR HANDLE ASSEMBLY LEFT, 000,001,004,010 FROM CHASSIS 188150,100,101,104,110 FROM CHASSIS 352119,002,003,005,011 FROM CHASSIS 031990
104
INTERIOR HANDLE ASSEMBLY RIGHT
104
INTERIOR HANDLE ASSEMBLY RIGHT, 000,001,004,010 FROM CHASSIS 130558-188149,100,101,104,110 FROM CHASSIS 225648-352118,002,003,005,011 UP TO CHASSIS 031989
112
ESCUTCHEON RIGHT
112
ESCUTCHEON RIGHT, 000,001,004,010 FROM CHASSIS 130558-188149,100,101,104,110 FROM CHASSIS 225648-352118,002,003,005,011 UP TO CHASSIS 031989
112
ESCUTCHEON LEFT
118
INSERT RIGHT
118
INSERT LEFT
118
INSERT , 000,001,004,010 FROM CHASSIS 130558-188149,100,101,104,110 FROM CHASSIS 225648-352118,002,003,005,011 UP TO CHASSIS 031989
120
DOOR HANDLE OUTSIDE LEFT, 043 002980 044 010355 STATE LOCK NUMBER WHEN ORDERING
120
DOOR HANDLE OUTSIDE RIGHT, 043 002979 STATE LOCK NUMBER WHEN ORDERING
120
DOOR HANDLE OUTSIDE RIGHT, 043 002980 044 010355 STATE LOCK NUMBER WHEN ORDERING
120
DOOR HANDLE OUTSIDE LEFT, 043 002979 STATE LOCK NUMBER WHEN ORDERING
126
PIN
128
KEY BLANK, STATE LETTER OF KEY BITTING WHEN ORDERING
128
KEY WITH LETTER "T", STATE LETTER AND NUMBER OF LOCK WHEN ORDERING
136
PAD DOOR HANDLES RIGHT FRONT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
136
PAD DOOR HANDLES LEFT FRONT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
138
PAD RIGHT REAR
138
PAD LEFT REAR
276
GARNISH MOULDING AT WINDOW MOULDING, LEFT
276
GARNISH MOULDING AT WINDOW MOULDING, RIGHT
302
PANELLING LEFT WITH WINDOW MOULDINGS, IMITATION LEATHER TRIM, 043 002979 STATE COLOR AND CHASSIS NUMBER WHEN ORDERING 042 000914 EXCEPT FOR: 000901- 000903, 009005- 000907, 009009- 000911 USED WITH IMITATION LEATHER TRIM DELIVER ADDITIONALLY ALSO: 1X A113 970 11 01, 1X A113 970 12 01
302
PANELLING RIGHT WITH WINDOW MOULDINGS, IMITATION LEATHER TRIM, 043 002980 STATE COLOR AND CHASSIS NUMBER WHEN ORDERING
302
PANELLING LEFT WITH WINDOW MOULDINGS, IMITATION LEATHER TRIM, 043 002980 STATE COLOR AND CHASSIS NUMBER WHEN ORDERING
302
PANELLING RIGHT WITH WINDOW MOULDINGS, IMITATION LEATHER TRIM, 043 002979 STATE COLOR AND CHASSIS NUMBER WHEN ORDERING 042 000914 EXCEPT FOR: 000901- 000903, 009005- 000907, 009009- 000911 USED WITH IMITATION LEATHER TRIM DELIVER ADDITIONALLY ALSO: 1X A113 970 11 01, 1X A113 970 12 01
304
GARNISH MOULDING LEFT POCKET
304
GARNISH MOULDING RIGHT POCKET
312
INSULATION
312
INSULATION
312
INSULATION , Replaced By: A1107270390
312
INSULATION , Replaced By: A1237270090
312
INSULATION , Replaced By: A2106820008
314
COVER RAIL LEFT, HINGE SIDE
314
COVER RAIL RIGHT, HINGE SIDE
316
COVER RAIL LEFT BOTTOM
316
COVER RAIL RIGHT BOTTOM
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
999
COUNTERSUNK WASHER DOOR LINING TO RETAINING PLATE
999
SPRING WASHER , Replaced By: N000137010205
999
NUT
999
NUT SPRING-LOADED PUSH ROD
999
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
999
SCREW PIPE CLAMP
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021005205
999
WASHER CAN NEUTRAL POINT ON EQUIPMENT PLATE
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW ESCUTCHEONS TO SHELLS, 043 002979
999
SCREW
999
SCREW , Replaced By: N000000001145
999
SCREW
999
SHEET METAL SCREW DOOR LINING TO RETAINING PLATE
999
SHEET METAL SCREW
999
SHEET METAL SCREW DOOR CONTACT TO BODY 2.9X9.5 MM
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW PLATE TO CONSOLE
999
SHEET METAL SCREW , Replaced By: N007982003316
999
SHEET METAL SCREW
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW , Replaced By: N007982002212
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
TOOTHED WASHER , Replaced By: N006797008120
999
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
999
TOOTHED WASHER MASKED STOP LAMP
999
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
PIN PULL RODS WITH ADDITIONAL LOCKING MECHANISM TO DOOR LOCKS, 043 002979
999
SCREW GUIDE TO STEERING COLUMN END,4 430730
999
NUT , Replaced By: N304032008006
999
NUT BATTERY CASE
999
NUT
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008021
999
SCREW STRAP TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW CONNECTOR TO CAB M6X8
999
SCREW , Replaced By: N304017005011
999
SPRING WASHER SHIFTING ROD TO BRACKET
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER CABLE TO ALTERNATOR
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125004319
999
COTTER PIN WIRE CABLE
999
SCREW BRACKET TO COVERING
999
EDGING , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1807230224
999
ESCUTCHEON , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1807230161
999
WASHER
999
EDGING INTERIOR LOCKING DEVICE
999
ESCUTCHEON , 043 002979
999
WASHER , Replaced By: A1809900640
999
WASHER , Replaced By: A1205450076
999
WASHER , EXCEPT FOR 001813, 001816
999
SEALING RAIL 2200 MM
999
DOOR LOCKING DEVICE RIGHT, 043 002979
999
DOOR LOCKING DEVICE LEFT, 043 002979
999
ROD WITH ADDITIONAL LOCKING MECHANISM, RIGHT, 043 002979
999
ROD WITH ADDITIONAL LOCKING MECHANISM, LEFT, 043 002979
999
WASHER , Replaced By: A1087680113
999
ESCUTCHEON LEFT, 000,001,004,010 FROM CHASSIS 130558-188149,100,101,104,110 FROM CHASSIS 225648-352118,002,003,005,011 UP TO CHASSIS 031989
999
CRANK , 000,001,004,010 UP TO CHASSIS 188465,100,101,104,110 UP TO CHASSIS 352550,002,003,005,011 UP TO CHASSIS 032300 EXCEPT FOR SEE FOOTN.25
999
COVERING
999
LOCK , Replaced By: A1155860072
999
SCREW
999
CLIP BLOWER COVERING
999
SEALING SECTION , Replaced By: A1157250965
999
WASHER CLEARANCE LAMP ON BRACKET
