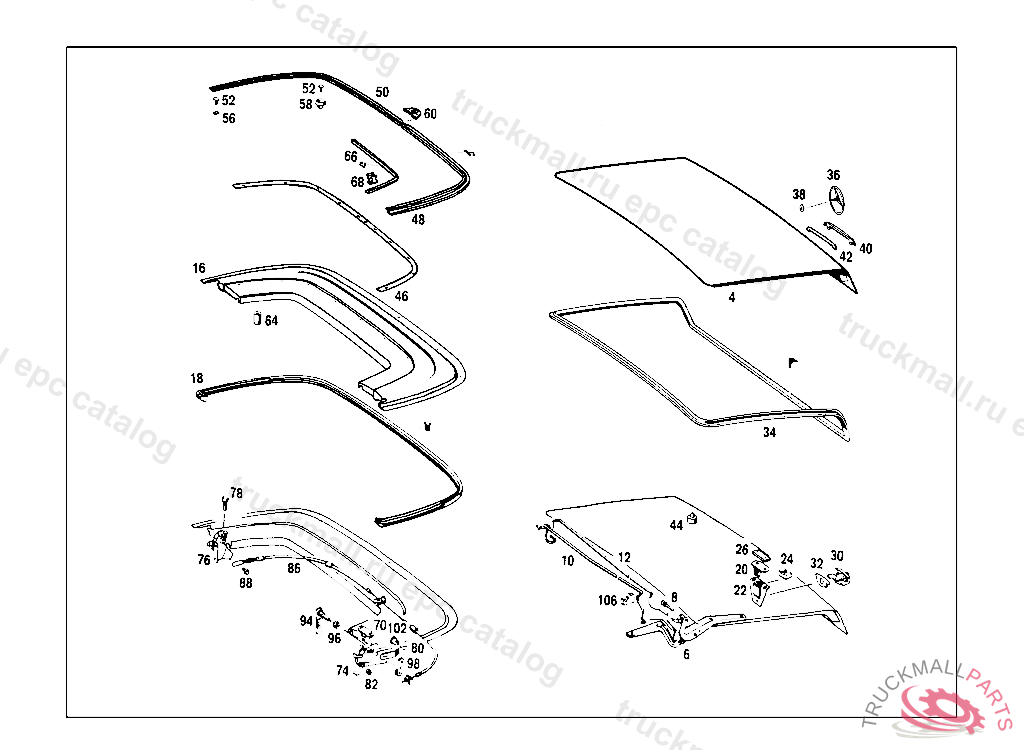

Поз.
Артикул
Описание
4
REAR LID SHELL
4
REAR LID , Replaced By: A1137500475
6
HINGE REAR LID AND FOLDING TOP CASE COVER, LEFT,042 006082
6
HINGE REAR LID AND FOLDING TOP CASE COVER, RIGHT,042 006082
8
PIN REAR LID AND FOLDING TOP CASE COVER
10
SPRING REAR LID AND FOLDING TOP CASE COVER,042 006082
12
SPRING
16
REAR LID SHELL
18
SEAL
20
LOCK
22
LOCK
24
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
24
BUFFER , Replaced By: A1169870539
26
PLATE , Replaced By: A1167500011
26
PLATE
30
FASTENER ,044 010355 STATE LOCK NUMBER WHEN ORDERING
32
PAD
34
SEAL
36
MERCEDES STAR
38
RUBBER RING
40
HANDLE
42
PAD HANDLE TO REAR LID
42
SHIM , Replaced By: A1087580105
44
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1119871540
46
RAIL ,042 01351 ALSO INSTALLED ON 001342, 01344- 01346
48
GARNISH MOULDING LEFT OUTSIDE,042 008116
50
GARNISH MOULDING RIGHT OUTSIDE
52
SCREW ,042 001350 EXCEPT FOR: 001342, 01344- 01346
52
SCREW ,042 001350 EXCEPT FOR: 001342, 01344- 01346
56
RUBBER RING ESCUTCHEON ON FOLDING TOP CASE COVER
58
NUT GARNISH MOULDING TO FOLDING TOP CASE COVER
60
ESCUTCHEON ,042 008116
64
RUBBER BUFFER
66
GARNISH MOULDING LEFT
66
GARNISH MOULDING RIGHT
68
CLIP
70
LOCK UPPER PART
74
LOCK LOWER PART, LEFT
76
LOCK LOWER PART, RIGHT
78
STOP SCREW , Replaced By: A2019880211
78
SCREW , Replaced By: A2019880211
78
BUFFER , Replaced By: A2019880511
78
BUFFER LEFT, FROM CHASSIS: 010 077937
80
ROD
82
PIN ROD TO LEFT LOWER LOCK PART
86
PULL , Replaced By: A1137500159
86
PULL FOLDING TOP CASE COVER
88
PIN ROD TO LEFT LOWER LOCK PART
94
HANDLE
96
WASHER
98
LEVER ,042 005490
102
NIPPLE ROD TO LEVER
106
BRACKET
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS FRONT ROOF RAIL
999
IMITATION LEATHER , Replaced By: A0019832986
999
CLEANER
999
WASHER
999
NUT
999
WASHER
999
NUT RETAINER , Replaced By: A0009903931
999
SCREW
999
NUT RETAINER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009909991
999
NUT RETAINER ,123 415950
999
LOCK , Replaced By: A1409941045
999
IMITATION LEATHER FOR BRACKET, STATE COLOR NUMBER WHEN ORDERING ORDER BY THE METER
999
PLASTIC SECTION 2300 MM, ORDER BY THE METER
999
BASE PLATE
999
COVERING GARNISH MOULDING TO FOLDING TOP CASE COVER,042 004334
999
LOCK FUEL LINE
999
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
999
WASHER ,042 001350 EXCEPT FOR: 001342, 01344- 01346
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
SPRING WASHER CABLE TO ALTERNATOR
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER SHIFTING ROD TO BRACKET
999
NUT BATTERY CABLE TO CABLE CONNECTOR,5 193595
999
SCREW TORSION BAR TO STAYS
999
SCREW
999
SCREW BRACKET TO TAIL LAMP BRACKET
999
SCREW BRACKET TO AIR INTAKE PIPE
999
SCREW FAN SHROUD TO RADIATOR
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
NUT PLUG SOCKET TO BRACKET,5 906887
999
NUT
999
NUT TACHOGRAPH TO BRACKET
999
NUT BATTERY CASE
999
NUT , Replaced By: N304032008006
999
NUT
999
TOOTHED WASHER
999
TOOTHED WASHER
999
LOCK PLATE
999
SHEET METAL SCREW
999
SHEET METAL SCREW HOSE TO FIRE WALL
999
SHEET METAL SCREW , Replaced By: N007981003214
999
SHEET METAL SCREW
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
SCREW LINE TO CROSS MEMBER
999
SCREW , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
SCREW
999
WASHER CAN NEUTRAL POINT ON EQUIPMENT PLATE
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021006208
999
WASHER MODULATOR TO ENGINE CONTROL SHAFT
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
CLAMP WIRE CABLE TO ENGINE
999
SCREW MOUNTING PARTS M 5X12, Replaced By: N000000002035
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
NUT
999
NUT BATTERY CABLE MOUNTING,5 193595
999
SPRING WASHER
999
SPRING WASHER PLATE TO PLATE AND TO LEVER
999
SPRING WASHER SHIFTING CYLINDER TO YOKE
999
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
999
SPRING WASHER , Replaced By: N000137010205
