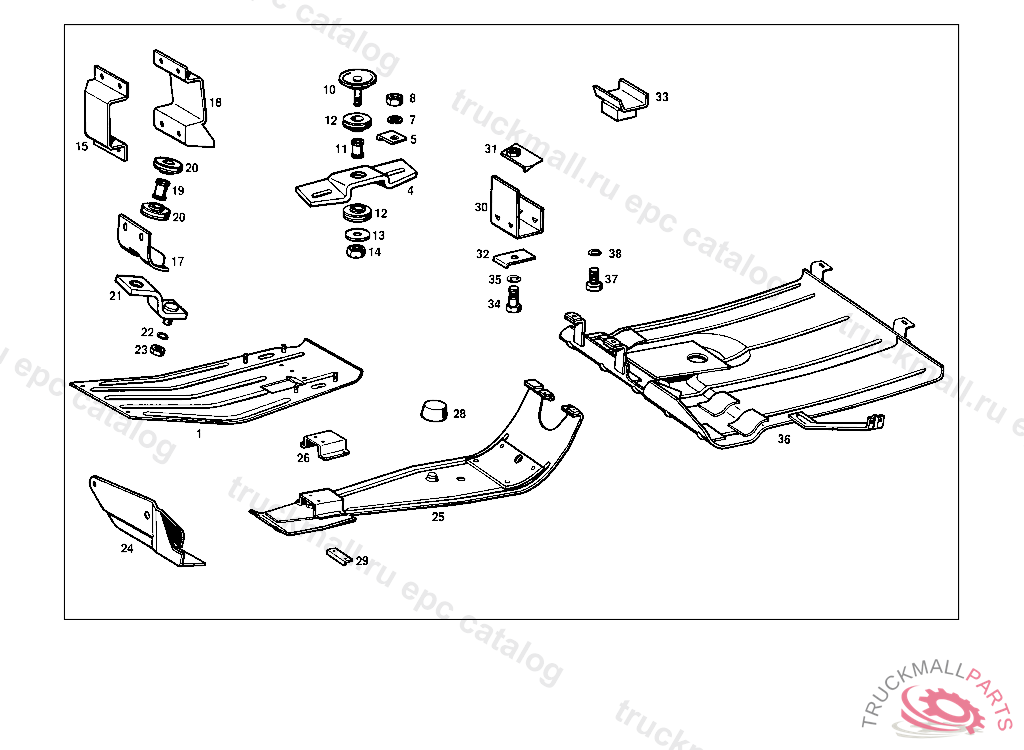

Поз.
Артикул
Описание
1
PANELLING (FOR OIL PAN)
4
BRACKET
5
SHIM
7
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
8
NUT
8
NUT , Replaced By: N304032010002
10
PIN
11
SPACER TUBE , ON MODELS 111.024,025 UP TO CHASSIS 003544 WITH THE EXCEPTION OF,SEE FOOTNOTE 19
12
RUBBER BUFFER
13
WASHER BRACKET TO COVERING
13
WASHER , Replaced By: N009021010209
14
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
15
BRACKET RIGHT
17
MOUNTING ANGLE , ON MODELS 111.024,025 UP TO CHASSIS 003544 WITH THE EXCEPTION OF,SEE FOOTNOTE 19
18
BRACKET
19
SPACER TUBE , ON MODELS 111.024,025 UP TO CHASSIS 003544 WITH THE EXCEPTION OF,SEE FOOTNOTE 19
20
RUBBER BUFFER
21
BRACKET , UP TO CHASSIS 004151
22
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
23
NUT
23
NUT , Replaced By: N304032010002
24
COVERING SLAVE CYLINDER
25
PANELLING (FOR REAR AXLE)
26
BRACKET
28
RUBBER BUFFER ,ON MODEL 112.014 FROM CHASSIS 004649 ALSO INSTALLED ON 000118,004592,004599,004607,004609,004612,004614,004640 ON MODELS 112.021,023 FROM CHASSIS 004654 ALSO INSTALLED ON 003692,004155,004584,004632 WITH THE EXCEPTION OF 004679,004698 ON MODELS 110.000,001,010 FROM CHASSIS 185548,ON MODELS 110.100,101,104,110 FROM CHASSIS 346460,ON MODEL 111.010 FROM CHASSIS105408
29
MOUNTING ANGLE
30
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1123100068
31
RAIL , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1123100068
32
SHIM
33
BRACKET
34
SCREW
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
36
PANELLING
37
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
38
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT
999
SCREW PIPE CLAMP
999
SCREW SUPPORT TO FENDER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT OIL COOLER TO BRACKET,TOP
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT BALL PIVOT TO LEVER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008021
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW , ON MODELS 111.024,025 UP TO CHASSIS 003544 WITH THE EXCEPTION OF,SEE FOOTNOTE 19
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK WASHER
999
COTTER PINTO 309 421 00 71, 309.370-391UP TO CHASSIS 026799,FROM CHASSIS SEE SEPARATE SPARE PARTS LIST 741.030,REMAINS APPLICABLE TO 309.300-326
999
WASHER
999
WASHER , Replaced By: A1809900640
999
BRACKET , Replaced By: A1135200741
999
SHIM , Replaced By: A1135240418
999
MOUNTING ANGLE , FROM CHASSIS 004152
999
BRACKET , FROM CHASSIS 004152
999
BRACKET , FROM CHASSIS 004152
999
PANELLING , Replaced By: A1135200675
999
RAIL , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1123100068
999
BRACKET LEFT
999
BRACKET , Replaced By: A1115240440
999
BRACKET LEFT OIL PAN UNDERSHIELD TO SUBFRAME, 010 UP TO CHASSIS 023660 EXCEPT FOR,SEE FOOTNOTE 007,012 UP TO CHASSIS 049855 EXCEPT FOR,SEE FOOTNOTE 008
999
COVERING , Replaced By: A1105240333
999
PANELLING , Replaced By: A1105240333
