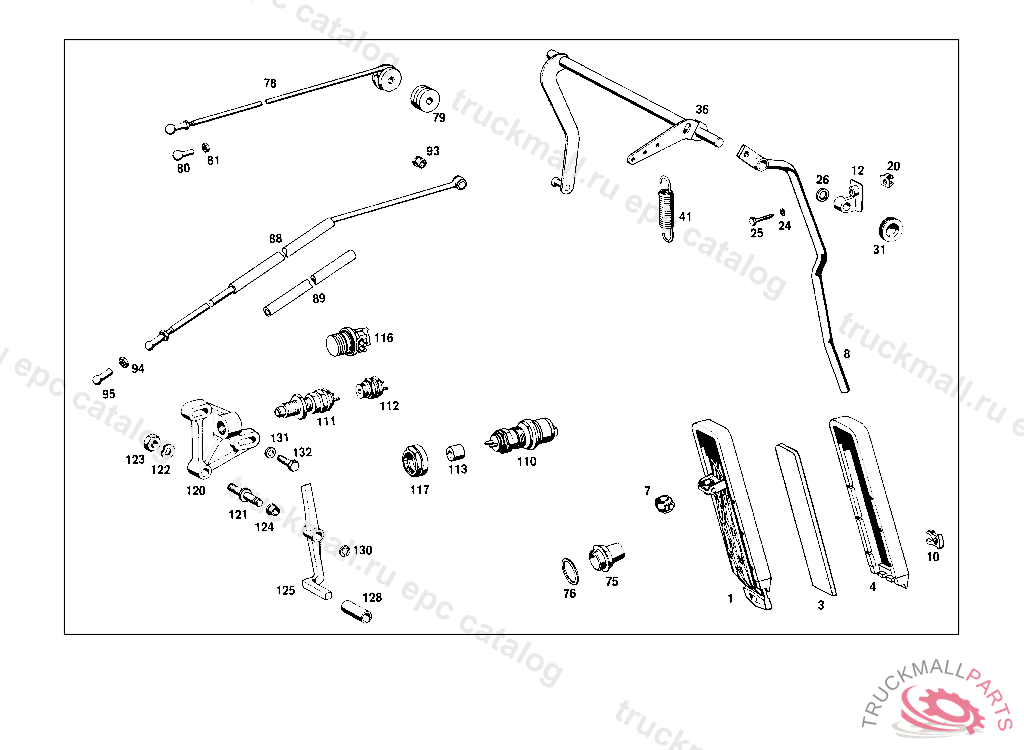

Поз.
Артикул
Описание
3
ACCELERATOR PEDAL
3
PAD , Replaced By: A1233000204
4
PAD , Replaced By: A1233000204
4
ACCELERATOR PEDAL
7
JOINT ,B 859430
8
LEVER
12
BEARING
20
CLIP PRE-GLOW TIME RELAY TO COWL
24
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
25
SHEET METAL SCREW
26
SPACER RING
31
GROMMET
36
SHAFT
41
SPRING
75
STOP
76
SEAL RING KICK-DOWN SWITCH
79
BOOT
80
BALL PIVOT
80
BALL SOCKET , Replaced By: A0009918922
81
NUT TACHOGRAPH TO BRACKET
89
HOSE30 MM, ORDER BY THE METER
93
BUSHING CONTROL PRESSURE
94
NUT TACHOGRAPH TO BRACKET
95
BALL SOCKET , Replaced By: A0009918922
95
BALL PIVOT
110
STOP , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
111
STOP
112
SWITCH , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
113
RUBBER BUFFER
116
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
117
NUT
120
BEARING BRACKET
121
STUD
122
SPRING WASHER
123
NUT , Replaced By: N304032010002
123
NUT
124
BUSHING
125
LEVER
128
HOSE FUEL LINE, ORDER BY THE METER
130
LOCK PLATE
131
SCREW BRACKET TO CROSS CONNECTION STRUT
131
SCREW , Replaced By: N304017008034
132
WASHER EXHAUST MUFFLER TO STRAP
132
WASHER , Replaced By: N000125008443
999
LOCK RING
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER , Replaced By: N000125008443
999
COTTER PIN
999
SPRING
999
ROD , FROM ENGINE 923 10/50,20/60 142463 923 12/52,22/62 026810 926 10/50,20/60 007797 926 12/52,22/62 000298
999
LEVER
999
STOP
999
SHAFT
999
ACCELERATOR PEDAL , UP TO CHASSIS: 000,002,010 103904 015 131402 100,102,103,110,112 273248 115 137906, Replaced By: A1233000204, +001A1249888678
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
ROD
