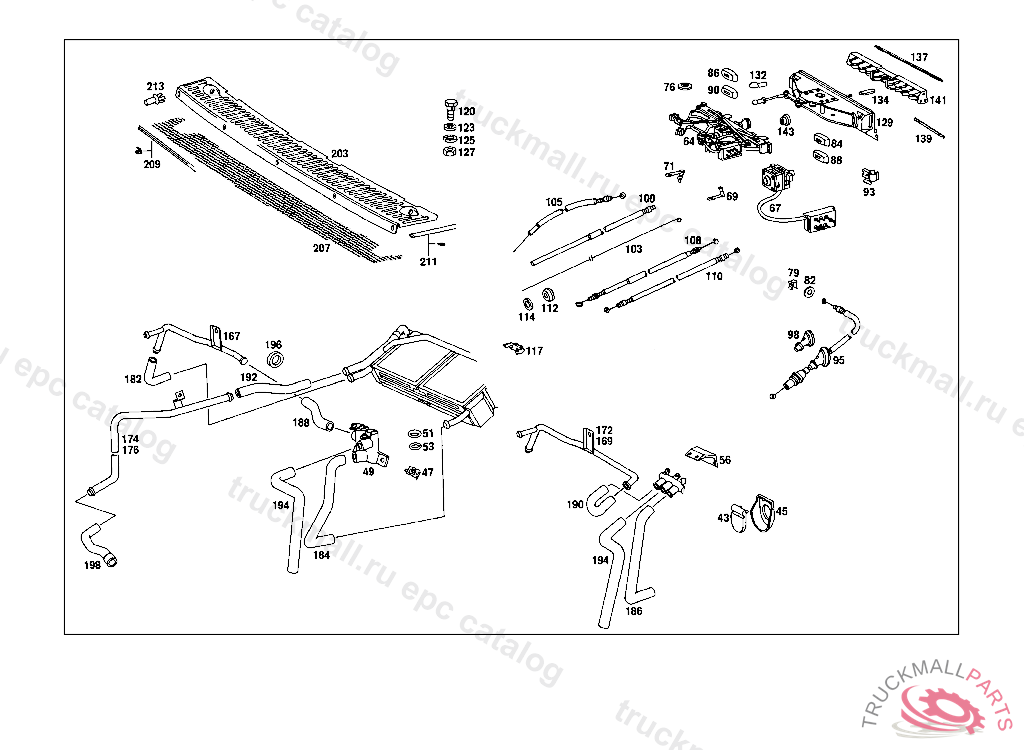

Поз.
Артикул
Описание
43
VALVE
45
WATER PASSAGE
51
SEAL OUTSIDE
51
SEAL , Replaced By: A0008355898
53
SEAL , Replaced By: A0008354898
53
SEAL INSIDE
56
BRACKET , FROM CHASSIS: 059325, ALSO INSTALLED ON: 058958,058963,059023,059025,059137,059138,059145,059147,059152,059155,059159,059160,059164-059177, 059179-059182,059185,059187-059199,059298-059321,059323.
67
SWITCH
69
LEVER , Replaced By: A1155860083
71
REPAIR KIT , Replaced By: A1238300233
71
REPAIR KIT , Replaced By: A1158300133
71
REPAIR KIT RIGHT,MAKE KAMMERER
76
WASHER
79
CLIP
82
LOCK
84
OPERATING HANDLE
86
OPERATING HANDLE
88
OPERATING HANDLE LEFT
90
OPERATING HANDLE RIGHT
95
WIRE CABLE LEFT, FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
98
GROMMET
108
WIRE CABLE280 MM, FROM CHASSIS: 000,002,010 025770 015 023375 100,102,103,110,112 055971 115 025853 UP TO CHASSIS: 000,002,010 064257 015 070613 100,102,103,110,112 161400 115 076797 FROM CHASSIS: 000,002,010 064258 015 070614 100,102,103,110,112 161401 115 076798
110
WIRE CABLE495 MM, FROM CHASSIS: 000,002,010 025770 015 023375 100,102,103,110,112 055971 115 025853
112
GROMMET , FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
114
WASHER
117
CLIP , ALSO APPLICABLE TO VERSION 55705/11-/62
132
BALL SOCKET
134
GROMMET3.0 MM
137
GARNISH MOULDING TOP
139
GARNISH MOULDING CENTRAL
141
LOUVRE INSTRUMENT PANEL,CENTER
143
ESCUTCHEON
172
PIPE LINE
174
PIPE LINE
182
HOSE BETWEEN FEED LINE AND HEATING DUCT
186
HOSE BETWEEN WATER FAUCET AND HEATER CASE
190
HOSE BETWEEN FAUCET AND FEED LINE
192
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
194
HOSE BETWEEN ENGINE AND WATER FAUCET
198
HOSE , FROM CHASSIS: 010 001717 110 005012
203
GRILLE
207
SCREEN
209
RUBBER SEAL , ORDER BY THE METER
211
RUBBER SEAL , ORDER BY THE METER
213
RIVET
213
RIVET , Replaced By: A0009902292
999
SEAL
999
LEVER , Replaced By: A0008352743
999
LEVER , Replaced By: A0008352843
999
LEVER LEFT, MAKE REITER & SCHEFENACKER
999
LEVER RIGHT,MAKE R. & S.
999
LEVER , Replaced By: A1155860183
999
SWITCH , Replaced By: A0008353706
999
RUBBER SEAL 125 MM, ORDER BY THE METER
999
HOSE CLAMP LINE MOUNTING
999
REPAIR KIT , Replaced By: A1238300133
999
PLUG , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 005,017 028049 015 238752 100,102,103,110,112 431300 105,107,108,117,119 060601 114 000208 115 248583, Replaced By: A1158211951
999
REPAIR KIT LEFT,MAKE KAMMERER
999
NOZZLE RIGHT
999
HOSE
999
DEFROSTER NOZZLE RIGHT
999
NOZZLE , Replaced By: A1158300054
999
INTERMEDIATE PIECE (FRONT AND REAR SPACE HEATING), FROM CHASSIS: 010 026147 110 057164
999
WIRE CABLE RIGHT, FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
999
OPERATING UNIT , Replaced By: A1158300785
999
OPERATING UNIT
999
DEFROSTER NOZZLE , Replaced By: A1158300219
999
ESCUTCHEON , FROM CHASSIS: 010 027065
999
DUCT RIGHT
999
BLOWER , Replaced By: A1158350407
999
CONTROL VALVE
999
BLOWER , Replaced By: A1158350207
999
REPAIR KIT , Replaced By: A1158300033
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
WASHER , FROM CHASSIS: 005,007,008,015,017 10/50,12/52 009573, ALSO INSTALLED ON: 009319,009323,009404,009444,009449,009450,009454-009456,009458,009459,009461-009472,009475-009477, 009479-009494,009496-009571. 010 10/50,12/52 013397, ALSO INSTALLED ON: 013289,013348,013354,013356,013358,013361-013367,013370-013381,013384-013388,013390-013395. 005,007,008,015,017 20/60,22/62 012727 010 20/60,22/62 015672
999
LOCK WASHER
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
SCREW
999
SCREW , Replaced By: N304017006018
999
NUT BALL PIVOT TO LEVER
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
999
SHEET METAL SCREW FENDER TO BODY
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
999
SCREW , Replaced By: N000000001933
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
DUO CLIP , Replaced By: N912010005001
999
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
999
CLAMP , Replaced By: A0059970190
999
CLAMP , Replaced By: N000000000667
999
CLAMP PRESSURE REGULATOR
