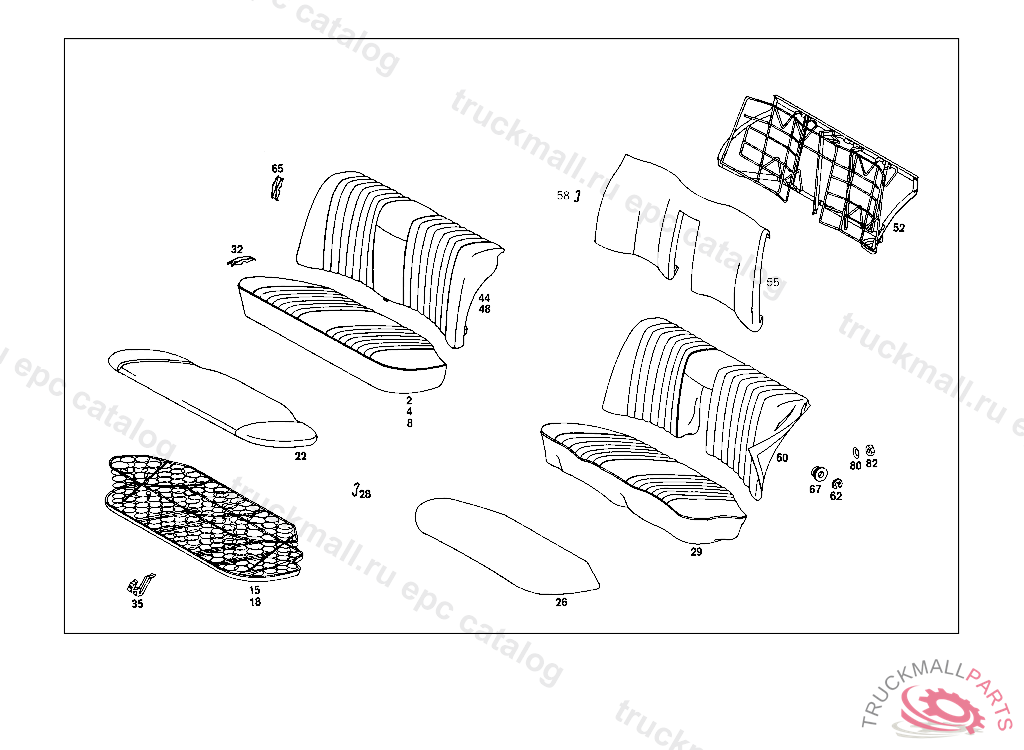

Поз.
Артикул
Описание
4
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING
15
CUSHION FRAME , FROM CHASSIS: 015 250811 017 038250 110 440114 114 006350 115 266006 117,119 075815
22
PAD , FROM CHASSIS: 015 250811 017 038250 110 440114 114 006350 115 266006 117,119 075815
28
CLIP COVER TO PAD
29
COVER , STATE COLOR NUMBER WHEN ORDERING
32
CLIP
35
BRACKET
48
BACKREST
52
BACKREST FRAME , 034415
55
PAD
55
PAD , Replaced By: A1159241516
58
CLIP COVER TO PAD
60
COVER , STATE COLOR NUMBER WHEN ORDERING
62
LOCK PLATE
65
CLIP
67
SUPPORT
80
WASHER
82
NUT BALL PIVOT TO LEVER
999
SEAT CUSHION LESS COVER , Replaced By: A1159201022, +001A1159200250
999
BACKREST LESS COVER
999
CUSHION FRAME , Replaced By: A1159201022, +001A1159200150
999
PAD
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
