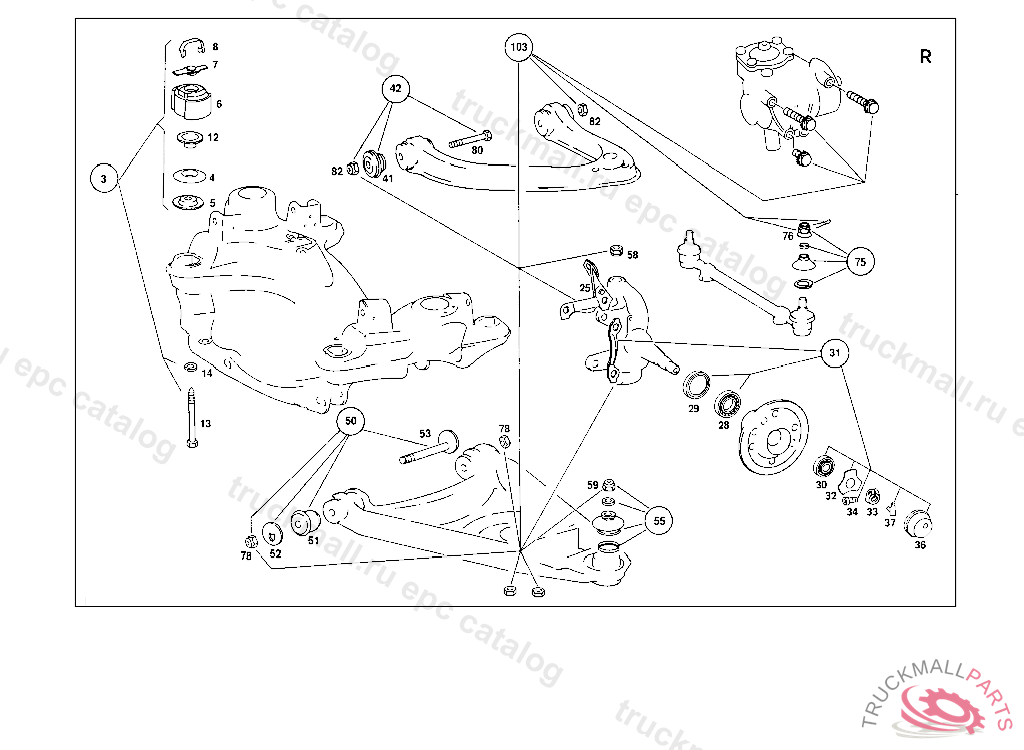

Поз.
Артикул
Описание
3
REPAIR KIT FRONT SUBFRAME
4
RUBBER BUFFER
5
RETAINER
6
RUBBER MOUNTING
7
NUT
8
U-BOLT
12
STOP
13
SCREW
14
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
25
BRACKET LEFT
25
BRACKET RIGHT
28
TAPERED ROLLER BEARING INSIDE,F 023121 ALSO INSTALLED ON F 027127
29
SEAL RING
30
TAPERED ROLLER BEARING OUTSIDE,F 023121 ALSO INSTALLED ON F 027127
31
REPAIR KIT FRONT WHEEL BEARING
32
RING
33
NUT
34
SCREW , ON SPECIAL REQUEST, FLOOR SHIFT
36
HUB CAP
37
CONTACT SPRING FRONT WHEEL HUB TO STEERING KNUCKLE
41
BEARING
41
BEARING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
42
REPAIR KIT UPPER TRANSVERSE CONTROL ARM
50
REPAIR KIT LOWER CONTROL ARM
51
BEARING
52
INDEXING PLATE
53
PIN
55
REPAIR KIT , Replaced By: A0003330260, +001A0003330660, +001A0003330797, +001N913002014002
55
DUST COLLAR LOWER CONTROL ARM JOINT BOOT
58
NUT PLATFORM MOUNTING
58
NUT
59
NUT ARTICULATED ROD
75
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP., 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678
76
NUT
78
NUT LOWER CONTROL ARM TO FRAME
80
SCREW BRACKET TO CONSOLE
80
SCREW , Replaced By: N000961012208
82
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
103
REPAIR KIT , Replaced By: A1159901901, +001A1159902101, +001A1209900155, +001A1159940732, +001N202019130200, +001N204000007709, +001N204019130900, +001N401019130100, +001N402019130200, +001N802009130400
103
SCREW
999
NUT BRACKET TO CROSS MEMBER
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
LOCK
999
REPAIR KIT , Replaced By: A1159940732, +001A1209900155, +001N202019130200, +001N204000007709, +001N204019130900, +001N401019130100, +001N402019130200, +001N802009130400
999
STEERING ARM RIGHT, 100835
999
TRANSVERSE CONTROL ARM TOP RIGHT
999
HALF FRONT AXLE RIGHT, FROM CHASSIS: 000,002,010 094997 015 115510 100,102,103,110,112 244251 115 122220 005.017,105,107,108,117,119 000001
999
HALF FRONT AXLE LEFT, FROM CHASSIS: 000,002,010 094997 015 115510 100,102,103,110,112 244251 115 122220 005.017,105,107,108,117,119 000001
999
STOP
999
REPAIR KIT UPPER CONTROL ARM JOINT
999
HUB CAP , Replaced By: A1083340025, +002A2015470085
999
STEERING KNUCKLE RIGHT
999
TRANSVERSE CONTROL ARM BOTTOM RIGHT
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING TOP, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BOOT , Replaced By: A0003381397
