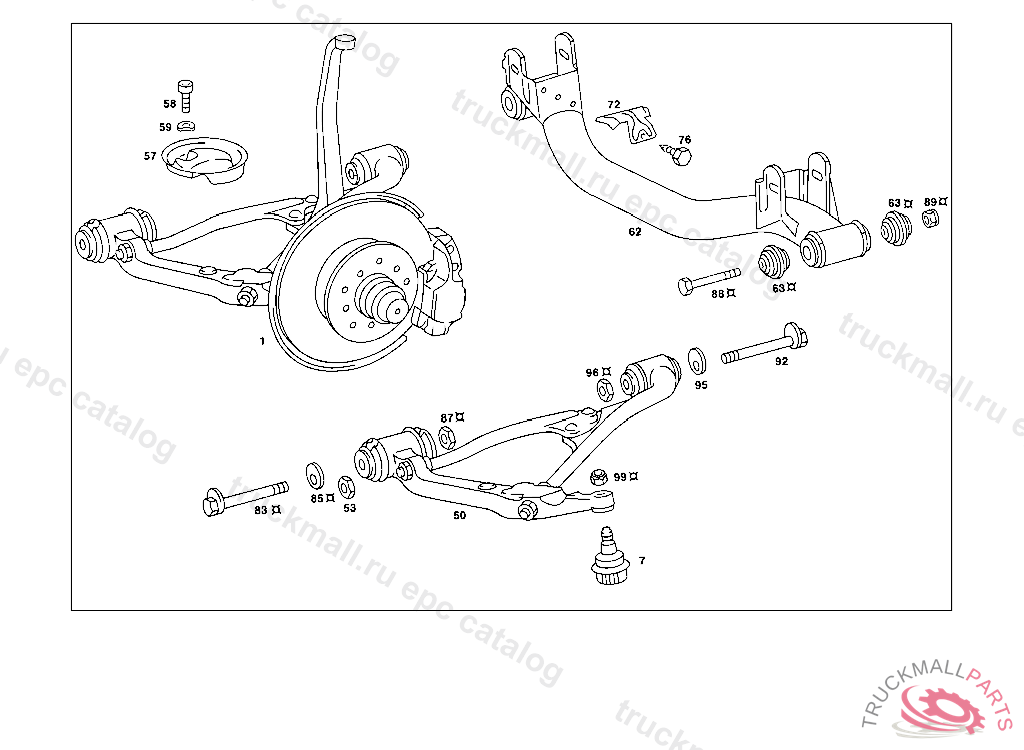

Поз.
Артикул
Описание
1
HALF FRONT AXLE LEFT, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
7
JOINT STEERING KNUCKLE,BOTTOM
50
TRANSVERSE CONTROL ARM BOTTOM RIGHT
50
TRANSVERSE CONTROL ARM BOTTOM LEFT
53
NUT BRAKE ANCHOR PLATE TO REAR AXLE
57
SPRING CASE
58
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
58
SCREW , Replaced By: N304017008016
59
SPRING WASHER RUBBER BUFFERS TO BODY FLOOR
62
FRONT SUBFRAME
63
BEARING
72
PROTECTIVE PLATE
76
SHEET METAL SCREW VALVE TO WINDOW SILL
83
PIN LOWER CONTROL ARM TO FRAME
85
INDEXING PLATE
87
NUT CENTRAL JOINT
87
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
88
SCREW SHOCK ABSORBER TO CONSOLE,TOP
89
NUT COMBINATION CYLINDER TO BEARING BRACKET
89
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
92
PIN
95
INDEXING PLATE
96
NUT CENTRAL JOINT
96
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
99
NUT AT CROSS MEMBER
999
BALL JOINT , Replaced By: A0003385510, +001N913002010002
999
JOINT ,A 027354, Replaced By: A0003385310, +001N913002010002
999
HALF FRONT AXLE RIGHT, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
BALL CUP
999
SPACER TUBE , FROM CHASSIS: 020 114552 024,025 136352 028,029 051401 032,033 090506 036 005863
999
BEARING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
BEARING UPPER CONTROL ARM TO TORSION BAR
999
BEARING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
BEARING , Replaced By: A1163334215, +001A1163333415
999
BEARING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
REPAIR KIT UPPER TRANSVERSE CONTROL ARM, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
SCREW STEERING ARM TO STEERING KNUCKLE 30 MM
999
TIE ROD , LEFT, Replaced By: A1263300603, +002N913002010002
999
TIE ROD RIGHT
999
NUT BRACKET TO CROSS MEMBER
