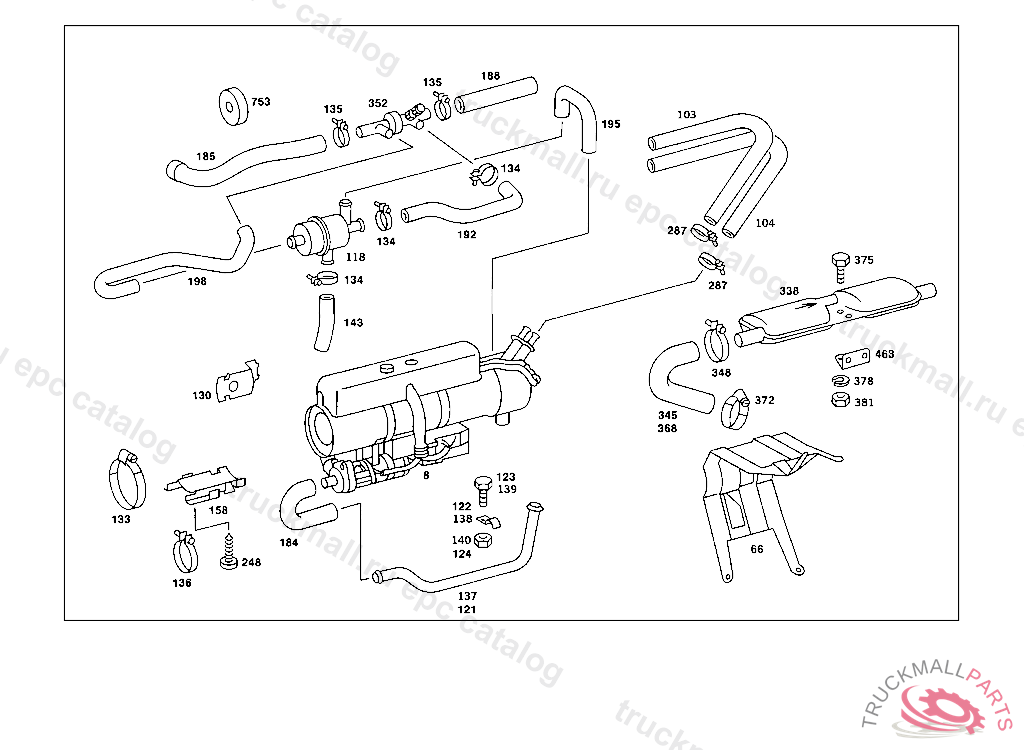

Поз.
Артикул
Описание
8
HEATING UNIT RANGE OF DELIVERY TO 123 500 30 98,123 500 31 98
66
BRACKET HEATER UNIT
103
HOSE
103
HOSE , Replaced By: A1235066435
104
HOSE , Replaced By: A1235066535
104
HOSE FUEL HOSE
118
THERMOSTAT ELEMENT
118
THERMOSTAT ELEMENT , Replaced By: A0032033475
118
THERMOSTAT ELEMENT , Replaced By: A0032033575
118
THERMOSTAT ELEMENT , Replaced By: A0032034075
118
THERMOSTAT ELEMENT
121
PIPE HEATING WATER LINE
122
CLAMP FUEL LINE TO BRACKET
122
CLAMP , Replaced By: A1109950401
123
SCREW IN CASE OF SUBSEQUENT INSTALLATION
124
NUT TACHOGRAPH TO BRACKET
130
BRACKET THERMOSTAT
133
LOOM TIE. CLAMP HOSE FASTENING
133
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
133
CLAMP EXHAUST PIPE
133
CLAMP , Replaced By: A0049976890
133
CLAMP , Replaced By: A0069970690
133
CLAMP , Replaced By: A0069972690
134
CLAMP , Replaced By: A0059970190
134
HOSE CLAMP LINE MOUNTING
135
HOSE CLAMP LINE MOUNTING
135
CLAMP , Replaced By: A0059970190
135
CLAMP , Replaced By: N000000000667
135
CLAMP PRESSURE REGULATOR
135
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
136
CLAMP , Replaced By: A1109950401
136
CLAMP FUEL LINE TO BRACKET
136
CLAMP
137
PIPE HEATING WATER LINE
138
CLAMP FUEL LINE TO BRACKET
138
CLAMP , Replaced By: A1109950401
139
SCREW IN CASE OF SUBSEQUENT INSTALLATION
140
NUT TACHOGRAPH TO BRACKET
143
HOSE
158
BRACKET IGNITION COIL
184
HOSE FROM PUMP TO HEATING WATER PIPE
184
HOSE
185
HOSE
188
HOSE
192
HOSE
195
HOSE FROM HEATING WATER PIPE TO THERMOSTAT
198
HOSE
198
HOSE
248
SHEET METAL SCREW BRACKET TO FLOOR PLATE
248
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
287
CLAMP , Replaced By: A0059970190
287
CLAMP , Replaced By: N000000000667
287
HOSE CLAMP LINE MOUNTING
287
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
338
MUFFLER
338
MUFFLER , Replaced By: A0034919001
345
FRONT EXHAUST PIPE , Replaced By: A0008354197
345
FLEXIBLE METAL TUBE , Replaced By: A0004920901
345
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
348
CLAMP
348
CLAMP EXHAUST PIPE
348
CLAMP , Replaced By: A0049976890
352
VALVE
368
FRONT EXHAUST PIPE , Replaced By: A0004920001
368
FRONT EXHAUST PIPE , Replaced By: A0004920901
368
FRONT EXHAUST PIPE , Replaced By: A0008354197
368
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
372
CLAMP
372
CLAMP , Replaced By: A0059970190
372
CLAMP , Replaced By: N000000000667
372
HOSE CLAMP LINE MOUNTING
372
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
375
SCREW , Replaced By: N304017005002
375
SCREW LEVER TO SHAFT
378
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
381
NUT TACHOGRAPH TO BRACKET
463
BRACKET MUFFLER TO SIDE MEMBER
463
BRACKET MUFFLER TO SIDE MEMBER
463
BRACKET MUFFLER TO SIDE MEMBER
753
RUBBER RING
999
BRACKET LINE MOUNTING 11 MM
999
RUBBER MAT , 116.020 121073 116.024,025 153750 116.028,029 054878 116.032,033 097700 116.036 007063 123.020 130273 123.000,023 164267 123.003,026,028 081970 123.030 028220 123.007,033 066427 123.043 016041 123.050 003504 123.053 017763 123.083 005594 123.086 004314 123.093 005320
999
FUSEA16
999
FUSE FUSE BOX A 25
999
FUSE25 A
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
999
LOOM TIE , Replaced By: A0019974390
999
PLUG
999
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
999
LINE
999
LINE
999
HOSE220 MM, ORDER BY THE METER
999
HOSE FROM INTAKE MANIFOLD TO WARM-UP REGULATOR
999
CLAMP , Replaced By: A0004760436
999
CLAMP HOSE TO HOSE 20 MM
999
LINE LINE TO FIRE WALL
999
BRACKET HEATER UNIT
999
CABLE HARNESS FROM SUPPLY UNIT TO PUMP
999
HEATING UNIT RANGE OF DELIVERY
999
HEATING UNIT RANGE OF DELIVERY TO 123 500 15 98,123 500 16 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT , Replaced By: A1235000298
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
INSULATING HOSE
999
BRACKET CABLE CONNECTOR
999
HOSE , Replaced By: A1079971482
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
NUT CABLE TO ALTERNATOR,4 477130
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
COMBINATION BOLT CABLE TO FUSE BOX
999
CLAMP , Replaced By: A0059970190
