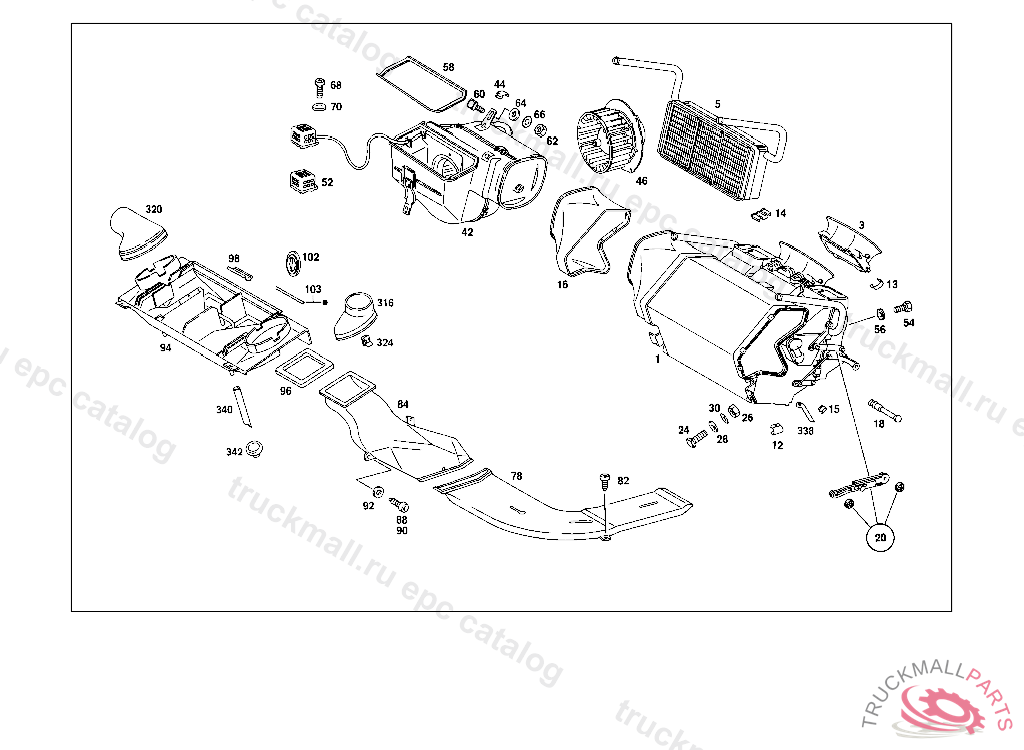

Поз.
Артикул
Описание
1
HEATER CASE
3
PIPE SOCKET
5
HEAT EXCHANGER
12
SPRING , Replaced By: A0008352134
13
SPRING , Replaced By: A1238350034
13
SPRING
14
SPRING
15
SPRING
16
HOSE
18
PIPE LINE TEMPERATURE-FEELER CAPILLARY TUBE, 020 053228,FEDERAL,ALSO INSTALLED ON:044616,051531,051953,052007,052021 020 053235,KALIFORNIA,ALSO INSTALLED ON:051657 032 043640,FEDERAL,ALSO INSTALLED ON: 042896,043061,043071,043136,043171,043231,043293,043352,043356,043414,043433,043434. 032 043677,KALIFORNIA,ALSO INSTALLED ON:037501,042716,043185,043244 033 043634,FEDERAL,ALSO INSTALLED ON: 032510,032841,042763,042981,043138,043144,043177,043203,043225,043278,043289,043296,043300,043328, 043340,043347,043382,043387,043402,043411,043581,043591,043596,043600,043604,043615,043618,043621, 043623,043625,043628,043630. 032 043677,KALIFORNIA,ALSO INSTALLED ON:042932,043174,043228,043251
20
REPAIR KIT
24
SCREW
24
SCREW , Replaced By: A0009905233
26
NUT BALL PIVOT TO LEVER
28
WASHER COMPRESSED AIR LINE TO BRACKET
28
WASHER , Replaced By: N009021006208
30
TOOTHED WASHER MASKED STOP LAMP
42
HEATER CASE
44
SPRING , Replaced By: A0008352134
46
MOTOR
52
RESISTOR
54
SCREW COVER PLATE TO COVER PLATE M 6 X 12
54
SCREW , Replaced By: N304017006018
56
TOOTHED WASHER MASKED STOP LAMP
58
SEAL
60
SCREW
60
SCREW , Replaced By: A0009905233
62
NUT BALL PIVOT TO LEVER
64
WASHER COMPRESSED AIR LINE TO BRACKET
64
WASHER , Replaced By: N009021006208
66
TOOTHED WASHER MASKED STOP LAMP
68
SCREW FUSE BOX TO SIDE MEMBER,5 097182
68
SCREW , Replaced By: N000000001933
70
SPRING WASHER ALTERNATOR CONNECTION D+
78
DUCT LEFT, FROM CHASSIS: 020 052847 024,025 052278 028,029 029868 032,033 043327 036 000085
82
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
84
DUCT LEFT
88
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
90
SHEET METAL SCREW BUZZER TO CAB,4 374617
92
WASHER COVERING TO CYCLONE AIR TRAP
92
WASHER , Replaced By: N009021004207
94
AIR DUCT CENTRAL
96
FRAME , 042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
98
SPRING AIR DUCT TO HEATER CASE
102
GROMMET , FROM CHASSIS: 020 006884 024 007355 028 007630 032,033 003472
103
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
316
PIPE SOCKET LEFT
320
PIPE SOCKET LEFT
324
CLIP , 042 008786 045 000319 046 000171 UP TO CHASSIS SEE SA 55830
338
HOSE
340
HOSE CONDENSED WATER DRAIN
342
GROMMET
999
REPAIR KIT WATER PUMP
999
SWITCH , Replaced By: A0008000573
999
SWITCH , Replaced By: A0008000673
999
SWITCH COLOR,YELLOW
999
SWITCH COLOR,GREEN
999
ELEMENT SUMMER VENTILATION FLAP, FROM CHASSIS:114.011 017604 114.015 131834 114.023 009936 115.010 112908 115.015 145989 115.110 299410
999
ELEMENT DEFROSTER NOZZLE
999
SWITCH , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 028,029 035398 032,033 053647, Replaced By: A0008202710
999
SWITCH LIQUID TANK, 023 060687 033 029142 123 043368 130 055526
999
SWITCH
999
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 017603, Replaced By: A1248205910
999
SWITCH REFRIGERANT COMPRESSOR
999
SWITCH
999
RELAY
999
RESISTOR
999
VALVE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 033 049203, Replaced By: A0008300384
999
REPAIR KIT
999
VALVE AUTOMATIC
999
CLIP
999
AMPLIFIER
999
AMPLIFIER , Replaced By: A0008350057
999
SEAL , Replaced By: A0008356598
999
SPRING , Replaced By: A0008351334
999
TEMPERATURE SENSOR INBOARD TEMPERATURE, UPPER PART, AT TOP OF INSTRUMENT PANEL
999
TEMPERATURE SENSOR OUTSIDE
999
HOUSING LOWER PART,AT TOP OF INSTRUMENT PANEL, 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985. FROM CHASSIS SEE STANDARD VERSION
999
PUMP , Replaced By: A0008356964
999
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
999
RECIRCULATING PUMP , FROM MODEL YEAR '81
999
MOTOR
999
PLASTIC PAD , Replaced By: A1086980497
999
GROMMET
999
CLIP CABLE HARNESS TO ROOF RAIL
999
ADHESIVE TAPE , Replaced By: A0019875646
999
LOCK INSTRUMENT PANEL TO PANELLING
999
LOCK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: N912003003000
999
LOCK , Replaced By: A0009940645
999
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
999
LOCK COVER AND BRACKET TO CAB CORNER PILLAR
999
LOCK. CLIP LICENSE PLATE FLAP
999
HOSE , Replaced By: A0009976552
999
HOSE FROM VACUUM SWITCH TO CIRCULATING-AIRFLAP-ELEMENT Y-SHAPE DISTRIBUTOR 600 MM
999
SWITCH , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS: 033 023528, Replaced By: A0018201810
999
SWITCH , Replaced By: A0008208010
999
CLIP ELECTRIC CABLE MOUNTING
999
CLIP
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
PLUG , Replaced By: A0095454028, +002A0015453826, +001A0095454128
999
SWITCH TEMPERATURE
999
SWITCH , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 028,029 047222 032,033 082491, Replaced By: A0008207910
999
CLIP PLUG TO REAR PILLAR
999
CLIP
999
HOSE CLAMP LINE MOUNTING
999
HOSE FROM Y-DISTRIBUTOR TO AIR CONDITIONER CASE VACUUM ELEMENT,RIGHT
999
HOSE FROM Y-DISTRIBUTOR TO AIR CONDITIONER CASE VACUUM ELEMENT,RIGHT
999
PLUG HOUSING
999
HOSE , Replaced By: A1168310488
999
HOSE , Replaced By: A0009970752
999
BRACKET
999
COVERING , Replaced By: A1168310541
999
SEAL , Replaced By: A1168350198
999
EVAPORATOR , Replaced By: A1168300058
999
CLAMP HOSE TO HOSE 20 MM
999
GROMMET
999
LOOM TIE , Replaced By: A1149970590
999
LOOM TIE , Replaced By: A1149970290
999
LOOM TIE
999
DISTRIBUTOR , Replaced By: A1170780145
999
GROMMET BRAKE CABLE TO REAR AXLE
999
CONTROL ROD
999
ELEMENT
999
ELEMENT , FROM CHASSIS:116.020 105376 116.024,025 119773 116.028,029 047586 116.032,033 083191 116.036 004590
999
CONNECTOR VACUUM LINE
999
NOZZLE , 042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 046 000987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985. 044 046860
999
KNOB VACUUM SWITCH, FROM CHASSIS:116.020 031765 024,025 035261 028,029 024136 032,033 030556
999
SWITCH TEMPERATURE
999
SWITCH
999
ELECTRIC CABLE
999
KNOB
999
BRACKET WATER PUMP
999
BLOWER
999
PIPE LINE FROM COMPRESSOR TO CONDENSER, UP TO CHASSIS: 116.028,029 029951, EXCEPT FOR: 029888,029890,029892,029895-029898,029900-029908,029910-029914,029916-029920,029922-029925,029927- 029929,029931-029934,029937-029940,029942-029947,029949,029950. 116.032,033 043630, EXCEPT FOR: 043487,043490,043502,043526,043546,043550,043555,043557,043559-043563,043567,043568,043572-043577, 043579-043628.
999
PIPE SOCKET
999
AIR DISTRIBUTOR , Replaced By: A1168301743
999
ESCUTCHEON LEFT
999
AIR DISTRIBUTOR , Replaced By: A1168301843
999
AIR DUCT RIGHT
999
TANK , Replaced By: A1168300483, +001A1248200810, +001A1409971145
999
ESCUTCHEON RIGHT
999
DEFROSTER NOZZLE RIGHT
999
AIR DISTRIBUTOR , Replaced By: A1168301543
999
OPERATING UNIT , Replaced By: A1168300785
999
VALVE MAKE MECANO-BUNDY
999
OPERATING UNIT , Replaced By: A1168300885
999
HEATER CASE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 090704 024,025 096730 028,029 042476 032,033 071706 036 003241, Replaced By: A1168303062
999
AIR DUCT UNDER HEATER CASE
999
AIR DISTRIBUTOR , Replaced By: A1168301743
999
AIR DISTRIBUTOR , Replaced By: A1168301843
999
OPERATING UNIT , Replaced By: A1168301385, +001A1166804039, +004N914032004300
999
OPERATING UNIT , 033 059129,FEDERAL,EXCEPT FOR 051189,054754,056670,056749,056882,056890,056967,057225,057241,057248,057269,057307,057312,057371, 057408,057433,057469,057482,057497,057503,057558,057561. 033 059126,CALIFORNIA,EXCEPT FOR 049204,051261,056395, Replaced By: A1168301485
999
AIR DISTRIBUTOR , Replaced By: A1168301843
999
HEATER CASE , 020 053228,FEDERAL,ALSO INSTALLED ON:044616,051531,051953,052007,052021 020 053235,KALIFORNIA,ALSO INSTALLED ON:051657 032 043640,FEDERAL,ALSO INSTALLED ON: 042896,043061,043071,043136,043171,043231,043293,043352,043356,043414,043433,043434. 032 043677,KALIFORNIA,ALSO INSTALLED ON:037501,042716,043185,043244 033 043634,FEDERAL,ALSO INSTALLED ON: 032510,032841,042763,042981,043138,043144,043177,043203,043225,043278,043289,043296,043300,043328, 043340,043347,043382,043387,043402,043411,043581,043591,043596,043600,043604,043615,043618,043621, 043623,043625,043628,043630. 032 043677,KALIFORNIA,ALSO INSTALLED ON:042932,043174,043228,043251 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 024 089845 033 067486 036 002884, Replaced By: A1168303362
999
AIR DISTRIBUTOR LEFT
999
HEATER CASE , 020 053228,FEDERAL,ALSO INSTALLED ON:044616,051531,051953,052007,052021 020 053235,KALIFORNIA,ALSO INSTALLED ON:051657 032 043640,FEDERAL,ALSO INSTALLED ON: 042896,043061,043071,043136,043171,043231,043293,043352,043356,043414,043433,043434. 032 043677,KALIFORNIA,ALSO INSTALLED ON:037501,042716,043185,043244 033 043634,FEDERAL,ALSO INSTALLED ON: 032510,032841,042763,042981,043138,043144,043177,043203,043225,043278,043289,043296,043300,043328, 043340,043347,043382,043387,043402,043411,043581,043591,043596,043600,043604,043615,043618,043621, 043623,043625,043628,043630. 032 043677,KALIFORNIA,ALSO INSTALLED ON:042932,043174,043228,043251 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 024 089845 033 067486 036 002884, Replaced By: A1168300108
999
HOSE BETWEEN TEMPERATURE SENSOR AND AIR NOZZLE
999
AIR DISTRIBUTOR RIGHT
999
PIPE LINE FROM COMPRESSOR TO CONDENSER
999
HEATER CASE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 028,029 047585 032,033 083190, Replaced By: A1168303762
999
HEATER CASE
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 032,033 030425, Replaced By: A1168310394
999
DUCT RIGHT
999
DUCT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 052846 024,025 052277 028,029 029867 032,033 043326 036 000084, Replaced By: A1168310946
999
COVERING , Replaced By: A1168310641
999
DUCT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 052846 024,025 052277 028,029 029867 032,033 043326 036 000084, Replaced By: A1168311046
999
HOSE BETWEEN AIR-BLAST NOZZLE AND FRONT PANEL PILLAR
999
SEAL OUTSIDE RIGHT
999
HOSE
999
HOSE BETWEEN ENGINE AND FEED LINE
999
HOSE BETWEEN CONTROL VALVE AND HEAT EXCHANGER
999
DUCT RIGHT, FROM CHASSIS: 020 052847 024,025 052278 028,029 029868 032,033 043327 036 000085 UP TO CHASSIS: 020 101296, EXCEPT FOR: 101210-101212,101218,101224,101225,101227,101228,101230,101232-101234,101236,101237,101241-101252, 101254-101269,101271-101295. 024,025 113296, EXCEPT FOR: 113229,113230,113238,113243,113247,113257,113261,113263,113265-113268,113275,113276,113278-113280, 113282-113285,113287,113289,113291-113293,113295. ALSO INSTALLED ON: 113418 028,029 045974, EXCEPT FOR: 045956,045963,045965-045967,045969,045970,045972,045973. 032,033 079947, EXCEPT FOR: 079838,079839,079841-079847,079849,079851-079875,079878-079885,079887-079897,079899,079900,079902- 079911,079913-079946, 036 004152
999
HOSE BETWEEN RETURN LINE AND CONTROL VALVE
999
HOSE BETWEEN CONTROL VALVE AND RETURN LINE TO ENGINE
999
HOSE BETWEEN RETURN LINE AND ENGINE RETURN PIPE
999
DUCT RIGHT, FROM CHASSIS: 020 101297, ALSO INSTALLED ON: 101210-101212,101218,101224,101225,101227,101228,101230,101232-101234,101236,101237,101241-101252, 101254-101269,101271-101295. 024,025 113297, ALSO INSTALLED ON: 113229,113230,113238,113243,113247,113257,113261,113263,113265-113268,113275,113276,113278-113280, 113282-113285,113287,113289,113291-113293,113295. EXCEPT FOR: 113418 028,029 045975, ALSO INSTALLED ON: 045956,045963,045965-045967,045969,045970,045972,045973. 032,033 079948, ALSO INSTALLED ON: 079838,079839,079841-079847,079849,079851-079875,079878-079885,079887-079897,079899,079900,079902- 079911,079913-079946, 036 004153
999
HOSE , FROM CHASSIS: 020:10/50,12/52 029848 020:20/60,22/62 027551 024,025:10/50,12/52 033601 024,025:20/60,22/62 031125 FROM CHASSIS: 028,029:10/50,12/52 023497 028,029:20/60,22/62 022710 032,033:10/50,12/52 029509 032,033:20/60,22/62 028297
999
HOSE , FROM CHASSIS: 032,033 045340, ALSO INSTALLED ON: 045060,045301,045331 FROM CHASSIS: 028,029 033059, EXCEPT FOR: 033098 ALSO INSTALLED ON: 032919,032929,032931-032950,
999
PLATE
999
FRAME
999
SPRING AT BLOWER HOUSING BRACKET
999
SPRING AT LEVER,FOR SPINDLE
999
OPERATING HANDLE
999
LEVER AT BLOWER HOUSING BRACKET
999
COVERING
999
TANK
999
HEAT EXCHANGER
999
PIPE SOCKET AT FRONT PANEL PILLAR,RIGHT
999
EVAPORATOR , Replaced By: A1168300058
999
RESISTOR BLOWER, 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
999
ESCUTCHEON RIGHT
999
CONDENSER , UP TO CHASSIS 028 006832 032,033 004317, Replaced By: A1168300870
999
PAD
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 033938 032,033 032022, Replaced By: A1168350597
999
HOSE DRAIN PIPE AT CENTRAL PART BELOW WINDSHIELD,INSIDE, FROM CHASSIS: 020 079851 024,025 078112 028,029 037927 032,033 061959 036 001983
999
CONDENSER , 032 043640,FEDERAL,ALSO INSTALLED ON 042896,043061,043071,043136,043171,043231,043293,043352,043356,043414,043433,043434. 032 043677,CALIFORNIA,EXCEPT FOR 037501,042716,043185,043244 033 043634,FEDERAL,ALSO INSTALLED ON 032510,032841,042763,042981,043138,043144,043177,043203,043225,043278,043289,043296,043300,043328, 043340,043347,043382,043387,043402,043411,043581,043591,043596,043600,043604,043615,043618,043621, 043623,043625,043628,043630. 033 043561,CALIFORNIA,EXCEPT FOR 042932,043174,043228,043251 UP TO CHASSIS 020 092431 024 100519,099547 033 073240,072844 036 003430, Replaced By: A1168301470, +001A1168302015, +001A1169950201
999
BRACKET AUXILIARY FAN, FROM CHASSIS:116.020 070004 116.024,025 066866 116.032,033 053036 116.036 001169
999
BRACKET FOR ELECTRIC CHANGE-OVER VALVE AND VACUUM SOLENOID SWITCH
999
RUBBER RING ELECTRIC CABLE TO CABLE DUCT
