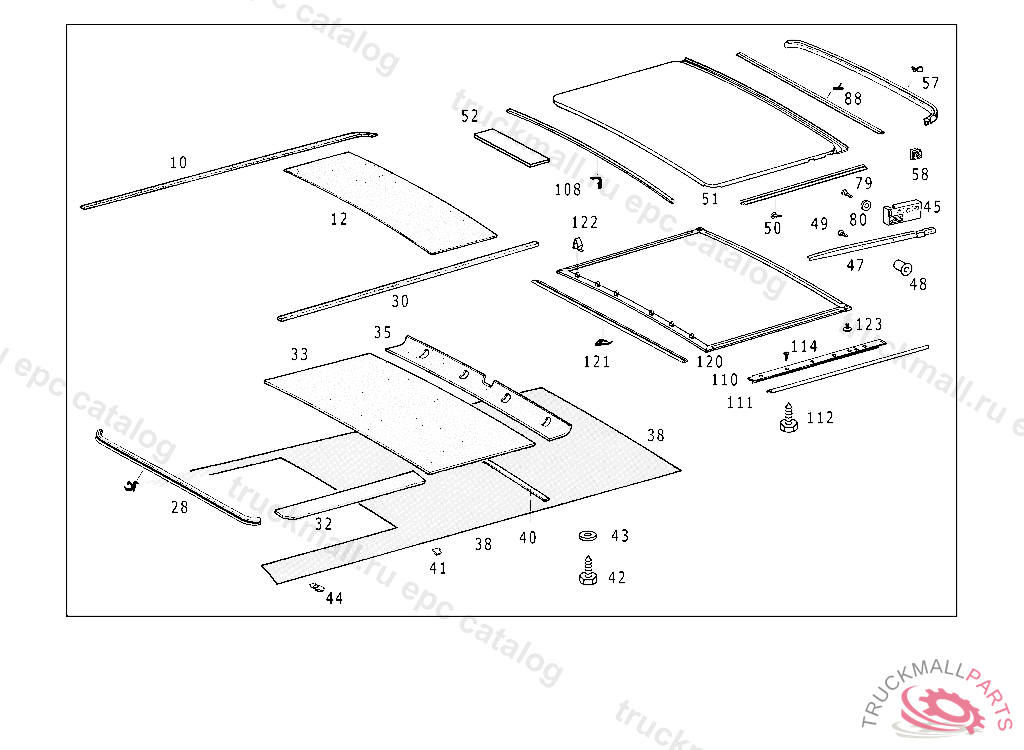

Поз.
Артикул
Описание
10
PAD (BETWEEN REINFCEMENT FRAME AND ROOF PANELLIN)
12
INSULATION ROOF PANELLING
28
SEAL BOTTOM FRAME,FRONT
30
PAD
32
PAD LATERAL INSULATION
33
PAD REAR
35
PAD
38
HEADLINER , LIGHT GREY NO 7020 CODE 061,062,161,162,261,262,361,362,461,462,961,962,BAMBO,LIGHT-COLORED NO.8038 CODE 003,004,063,103,104,163,167,203,204,263,267,303,304,363 AND FOOTN. 15
38
HEADLINER , LIGHT GREY NO 7020 CODE 061,062,161,162,261,262,361,362,461,462,961,962,BAMBO,LIGHT-COLORED NO.8038 CODE 003,004,063,103,104,163,167,203,204,263,267,303,304,363 AND FOOTN. 15
38
HEADLINER , LIGHT GREY NO 7020 CODE 061,062,161,162,261,262,361,362,461,462,961,962,BAMBO,LIGHT-COLORED NO.8038 CODE 003,004,063,103,104,163,167,203,204,263,267,303,304,363 AND FOOTN. 15
40
BOW WITH SLIDING ROOF, 023 194993 033 066865 123 235194 130 228992 223 024765
41
CLIP
42
SHEET METAL SCREW FENDER TO BODY
43
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
LOCK FRAME TO REINFORCEMENT FRAME
44
LOCK
45
STOP AT MOUNTING RAIL,LEFT
45
STOP AT MOUNTING RAIL,RIGHT
47
RAIL RIGHT
47
RAIL LEFT
48
RIVET
49
SCREW
50
SEAL480 MM
51
SLIDING ROOF PLATE
52
FOAM PLASTICS FRONT ROOF RAIL
57
SEAL
58
NUT RETAINER
79
SCREW
80
WASHER BOOT TO CAB FLOOR
88
PAD
108
SCREW COVER PLATE TO COVER PLATE M 6 X 12
108
COVER RAIL
110
SLIDING RAIL RIGHT
110
SLIDING RAIL LEFT
111
SLIDING RAIL LEFT
111
SLIDING RAIL RIGHT
112
SCREW
114
SCREW
120
FRAME , STATE COLOR NUMBER WHEN ORDERING
121
RUBBER SEAL LEATHER & IMITATION LEATHER 837 MM
122
CLIP
123
FASTENER BUTTON
999
SLIDING SHOE
