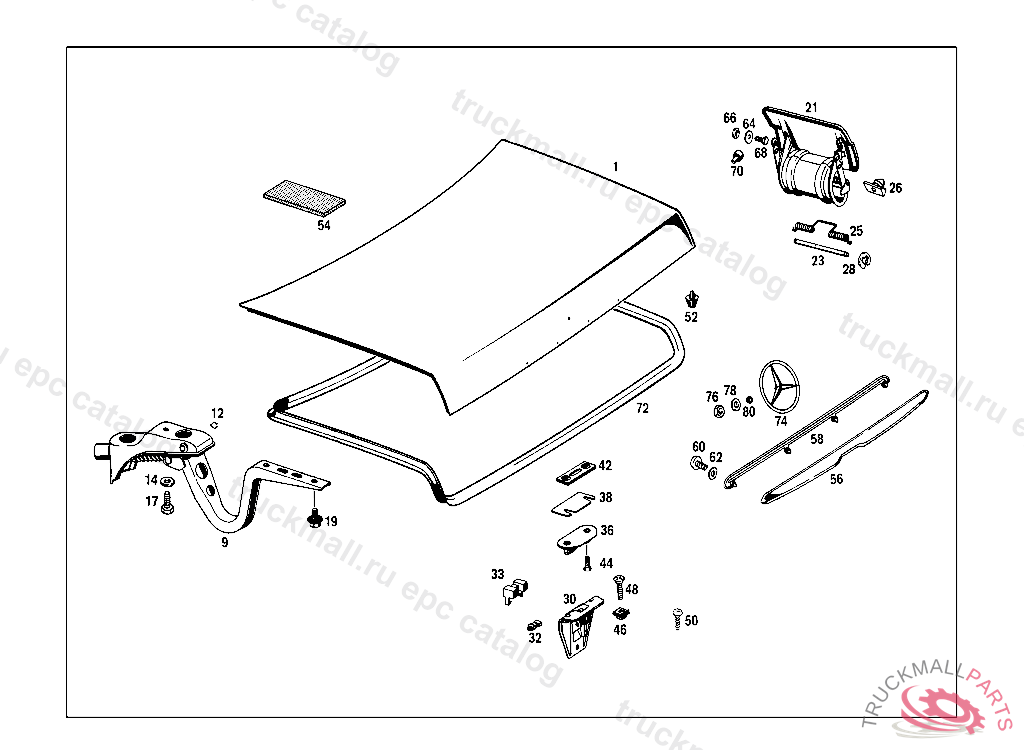

Поз.
Артикул
Описание
1
REAR LID , FROM CHASSIS: 020 069959 024,025 066837 028 029 035044 032,033 053003 036 001168
9
HINGE
12
LOCK PLATE ,5 0994165 387552
14
WASHER BRACKET TO LEFT SIDE MEMBER
17
SCREW , Replaced By: N304017008021
17
SCREW PIPE CLAMP
19
SCREW , Replaced By: N914114006006
19
SCREW
21
FLAP
23
PIN
25
SPRING
26
RUBBER BUFFER
28
LOCK PLATE , 000 000032 003 000013 007 000799 086 006409 093 007546 102,103 000031 105 000017 183 013075 190 019713 283 001214
30
LOCK
32
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
32
BUFFER , Replaced By: A1169870539
33
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
36
LOCK
38
BASE PLATE
42
PLATE
44
SCREW
46
NUT RETAINER ,123 415950
48
SCREW
50
SCREW , Replaced By: N000000001146
50
SCREW , Replaced By: N007985006193
50
SCREW CLAMP MOUNTING M 6X16
52
RUBBER BUFFER
54
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
54
INTERMEDIATE LAYER , Replaced By: A1237580397
56
HANDLE , FROM CHASSIS: 020 014417 024 016103 028 015521 032,033 013715
58
PAD
60
SCREW WIRE CABLE TO BRACKET OF BEARING BRACKET
62
SPRING WASHER ALTERNATOR CONNECTION D+
64
WASHER , NO LONGER USED
66
WASHER COMPRESSED AIR LINE TO BRACKET
66
WASHER , Replaced By: N009021006208
68
SCREW , Replaced By: N304017006018
68
SCREW COVER PLATE TO COVER PLATE M 6 X 12
70
RUBBER BUFFER
72
SEAL
74
MERCEDES STAR
76
NUT
76
NUT , Replaced By: N304032008006
78
WASHER , Replaced By: N000125008443
80
RUBBER RING
999
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009879040
999
PLATE , Replaced By: A1167500011
999
REAR LID , ORDER ADDITIONALLY UP TO CHASSIS: 020 069958 1 X 116 817 16 15 024 066836 1 X 116 817 10 15 025 066836 1 X 116 817 13 15 028 035043 1 X 116 817 11 15 029 035043 1 X 116 817 14 15 032 053002 1 X 116 817 12 15 033 053002 036 001167 1 X 116 817 11 15, Replaced By: A1167500575
999
HANDLE , UP TO CHASSIS: 020 014416 024 016102 028 015520 032,033 013714, Replaced By: A1167580102, +001A1167580105
999
PAD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 014416 024 016102 028 015520 032,033 013714, Replaced By: A1167580105
999
RUBBER BUFFER , Replaced By: A1119871540
