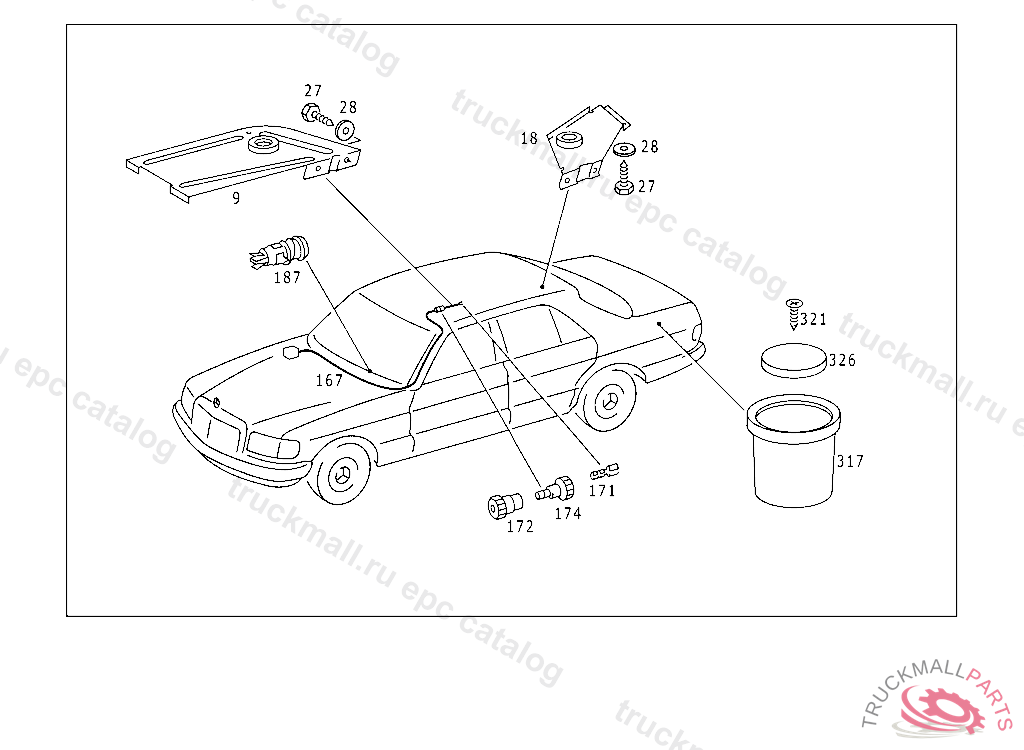

450 SE STANDARD - 116.032 - 82 ELECTRICAL SYSTEM
Поз.
Артикул
Описание
9
BRACKET FRONT RIGHT
9
BRACKET FRONT LEFT
18
BRACKET REAR LEFT
18
BRACKET REAR RIGHT
27
SHEET METAL SCREW BRACKET TO ROOF RAIL
28
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
167
ELECTRIC CABLE REVOLVING BEAM SIGNAL LAMP TO BODY
171
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
172
PLUG
172
PLUG
174
PLUG SOCKET UNIPOLAR
187
SIGNAL LAMP IN TRAY
317
CONTAINER REVOLVING BEAM SIGNAL
321
SHEET METAL SCREW BRACKET TO FIRE WALL
326
PAD
