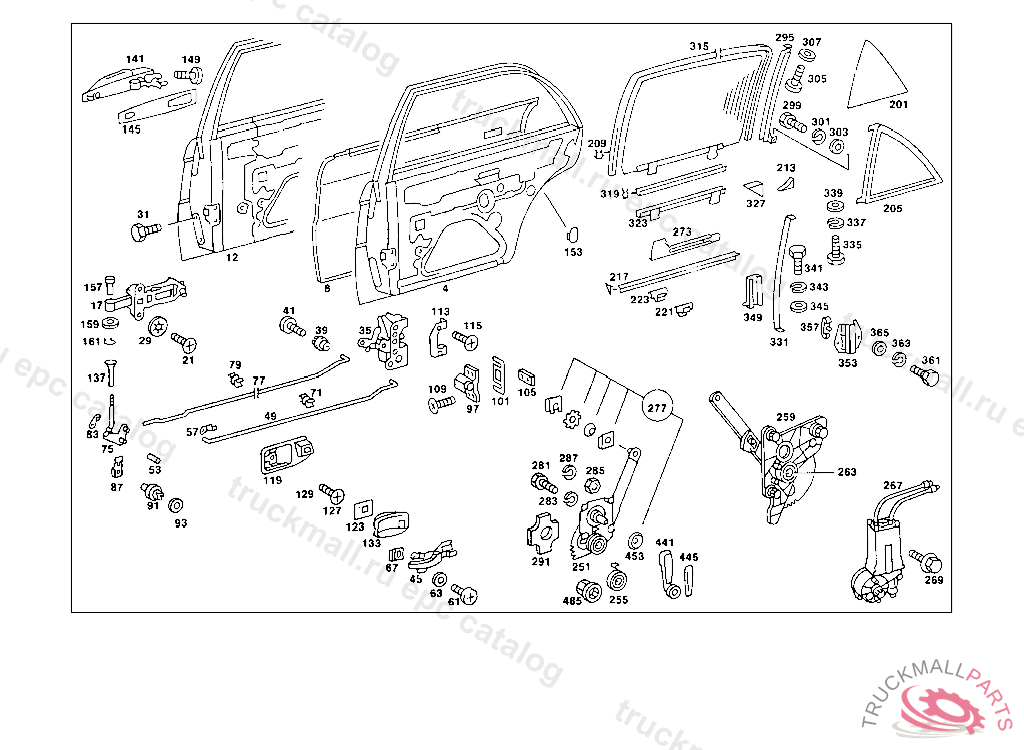

Поз.
Артикул
Описание
12
DOOR SHELL RIGHT
12
DOOR SHELL , Replaced By: A1167302405
17
DOOR CHECK
21
SCREW
29
TOOTHED WASHER MASKED STOP LAMP
31
SCREW
35
DOOR LOCK RIGHT
39
CLIP
41
SCREW
41
SCREW , Replaced By: A1409843029
45
INTERIOR HANDLE ASSEMBLY RIGHT, UP TO CHASSIS: 000,002,010 083018 EXCEPT FOR 055487-055613 015 096864 EXCEPT FOR 059434-059645 UP TO CHASSIS: 100,102,103,110,112 211690 EXCEPT FOR 137775-138117 115 104054 EXCEPT FOR 064365-064536
49
PULL ROD
53
SLEEVE , FROM CHASSIS: 010 083019 110 211691 017,117 000001
57
LOCK PULL ROD TO DOOR LOCK
61
SCREW
63
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
67
NUT RETAINER , Replaced By: A3229900091
71
CLIP
71
CLIP , Replaced By: A0069886378
75
DOOR LOCKING DEVICE , Replaced By: A1167301193
77
LINK RIGHT, FROM CHASSIS 020 103124 024,025 116354 028,029 046768 032,033 081591 036 004356 120 000684
79
CLIP
79
CLIP , Replaced By: A0069886378
83
LOCK PULL ROD TO DOOR LOCK
87
NUT RETAINER
91
RIVET UPPER PART
91
RIVET , Replaced By: A0009906092
93
RIVET , Replaced By: A0009905548
93
WASHER LOWER PART
97
LOCKING EYE RIGHT
101
PLATE0.5 MM
101
PLATE , Replaced By: A1167230111
105
PLATE
109
SCREW
113
EDGING RIGHT
115
SCREW
119
ESCUTCHEON RIGHT
123
SEAL
127
SCREW
129
TOOTHED WASHER CABLE TO FUSE BOX
133
INSERT RIGHT
137
LOCK (LOCKING KNOB),DOOR LOCKING MECHANISM, 023 116974 033 048511 123 097281 130 120564
141
DOOR HANDLE
145
PAD
149
COMBINATION BOLT STEERING SHAFT BEARING TO CAB, Replaced By: N000000001144, +001N000137006204
153
EXPANSION PLUG
157
PIN
159
WASHER DOOR CHECK TO FRONT PANEL PILLAR
161
LOCK
201
GLASS PANE RIGHT
205
SEAL RIGHT
209
WINDOW RUN1575 MM
213
SEAL , FROM CHASSIS: 010 076074 110 193042 017,117 000001
213
SEAL , Replaced By: A1167250198
217
SEALING RAIL , Replaced By: A1167250065
217
SEALING RAIL OUTSIDE, FROM CHASSIS 011,060,062 100001
221
CLIP
223
CLIP
259
WINDOW REGULATOR RIGHT REAR DOOR
263
SPRING , 123.043 011674 123.050 002995 123.053 014261 FROM CHASSIS SEE STANDARD VERSION
263
SPRING
267
ELECTRIC MOTOR RIGHT REAR DOOR
267
ELECTRIC MOTOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0018207842
269
SCREW
273
WINDOW REGULATOR RAIL RIGHT
277
REPAIR KIT
277
REPAIR KIT , Replaced By: A1237200114
285
NUT BALL PIVOT TO LEVER
287
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
295
WINDOW STAYBAR RIGHT
299
SCREW COVER PLATE TO COVER PLATE M 6 X 10
299
SCREW , Replaced By: N304017006034
301
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
303
WASHER COMPRESSED AIR LINE TO BRACKET
303
WASHER , Replaced By: N009021006208
305
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
307
WASHER BRACKET TO SUPPORT
307
WASHER , Replaced By: N000125004319
319
RUBBER MOULDING 290 MM, 100001
323
RETAINING RAIL RIGHT, NO LONGER AVAILABLE
327
SEAL , FROM CHASSIS: 010 076074 110 193042 017,117 000001
331
WINDOW GUIDE
335
SCREW PUMP TO BRACKET
335
SCREW COVER PLATE TO BRACKET
337
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
339
WASHER COMPRESSED AIR LINE TO BRACKET
339
WASHER , Replaced By: N009021006208
341
SCREW COVER PLATE TO BRACKET
341
SCREW PUMP TO BRACKET
343
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
345
WASHER COMPRESSED AIR LINE TO BRACKET
345
WASHER , Replaced By: N009021006208
349
SLIDING JAW , Replaced By: A1167200142
349
SLIDING JAW LEFT
353
SHACKLE
357
SLIDING JAW
361
SCREW PUMP TO BRACKET
361
SCREW COVER PLATE TO BRACKET
363
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
365
WASHER COMPRESSED AIR LINE TO BRACKET
365
WASHER , Replaced By: N009021006208
999
ELECTRIC MOTOR , Replaced By: A0008207242, +002A0009970181, +002N046236004100
999
ELECTRIC MOTOR , Replaced By: A0008207342, +002A0009970181, +002N046236004100
999
ELECTRIC MOTOR , Replaced By: A0018204542
999
ELECTRIC MOTOR , Replaced By: A0018204442
999
SCREW
999
NUT RETAINER , Replaced By: A0009907191
999
ELECTRIC MOTOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0018207742
999
ELECTRIC MOTOR LEFT REAR DOOR
999
SEAL , Replaced By: A1157251298
999
INSERT LEFT
999
WASHER
999
KNOB , 023 116973 033 048510 123 097280 130 120563
999
INTERIOR HANDLE ASSEMBLY LEFT, UP TO CHASSIS: 000,002,010 083018 EXCEPT FOR 055487-055613 015 096864 EXCEPT FOR 059434-059645 UP TO CHASSIS: 100,102,103,110,112 211690 EXCEPT FOR 137775-138117 115 104054 EXCEPT FOR 064365-064536
999
REPAIR KIT , Replaced By: A1267300114
999
REPAIR KIT , Replaced By: A1165860073
999
LOCKING EYE LEFT
999
WINDOW REGULATOR RAIL LEFT
999
RETAINING RAIL LEFT, NO LONGER AVAILABLE
999
SLIDING JAW RIGHT
999
EDGING LEFT
999
REPAIR KIT CONVERSION OF REAR DOOR
999
DOOR LOCK LEFT
999
SLIDING JAW , Replaced By: A1167200242
999
EDGE GUARD SECTION , UP TO CHASSIS 020 014619 024 016680 028 015721 032,033 014416, Replaced By: A1167300397, +001A1167300497
999
EDGE GUARD SECTION , UP TO CHASSIS 020 014619 024 016680 028 015721 032,033 014416, Replaced By: A1167300497, +001A1167300397
999
DOOR SHELL , Replaced By: A1167301705
999
CRANK OPERATED WINDOW LEFT
999
WINDOW STAYBAR LEFT
999
WINDOW REGULATOR , Replaced By: A1167302146
999
PANELLING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 028 011076 032,033 007946, Replaced By: A1167301751
999
WEATHERSTRIP LEFT
999
GARNISH MOULDING LEFT
999
EDGE GUARD SECTION LEFT
999
DOOR SHELL , Replaced By: A1167301805
999
CRANK OPERATED WINDOW RIGHT
999
WINDOW REGULATOR , Replaced By: A1167302246
999
PANELLING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 028 011076 032,033 007946, Replaced By: A1167301851
999
PANELLING FRONT LEFT
999
DOOR LOCKING DEVICE , UP TO CHASSIS 020 103123 024,025 116353 028,029 046767 032,033 081591 036 004355 120 000683, Replaced By: A1167301193, +001A1167330570
999
DOOR LOCKING DEVICE , UP TO CHASSIS 020 103123 024,025 116353 028,029 046767 032,033 081591 036 004355 120 000683, Replaced By: A1167301293, +001A1167330670
999
PANELLING LEFT
999
PANELLING LEFT
999
PANELLING RIGHT
999
PANELLING LEFT,REAR DOOR, WHEN ORDERING STATE VERSION OF DOOR INSIDE VELOURS LINING,PLAIN OR CORDED ANTHRACITE GREY NO.7066 CODE 961,ANTHRACITE NO.7081 CODE 901,BLUE NO.5032 CODE 962, BLUE NO.5050 CODE 902, MAHOGANY NO.8150 CO DE 963,BEIGE NO.8149 CODE 964 AND FOOTN.25
999
DOOR LOCKING DEVICE LEFT, FROM CHASSIS 020 103124 024,025 116354 028,029 046768 032,033 081591 036 004356 120 000684
999
DOOR SHELL , Replaced By: A1167302305
999
PANELLING REAR LEFT
999
WINDOW REGULATOR LEFT REAR DOOR
999
DOOR SHELL LEFT
999
PANELLING INSIDE LEFT REAR DOORS, WHEN ORDERING STATE VERSION OF DOOR INSIDE VELOURS LINING,PLAIN OR CORDED ANTHRACITE GREY NO.7066 CODE 961,ANTHRACITE NO.7081 CODE 901,BLUE NO.5032 CODE 962, BLUE NO.5050 CODE 902, MAHOGANY NO.8150 CO DE 963,BEIGE NO.8149 CODE 964 AND FOOTN.25
999
LINK LEFT, FROM CHASSIS 020 103124 024,025 116354 028,029 046768 032,033 081591 036 004356 120 000684
999
GLASS PANE LEFT
999
SEAL LEFT
999
WINDOW RUN , Replaced By: A1167350325
999
SLIDE , Replaced By: A1167300142
999
BINDING RAIL WINDOW INNER MOULDING,LEFT REAR DOOR, STATE COLOR NUMBER WHEN ORDERING
999
SLIDE , Replaced By: A1167300242
999
GLASS PANE , NO LONGER AVAILABLE, Replaced By: A1167300318
999
GLASS PANE , NO LONGER AVAILABLE, Replaced By: A1167300418
999
LEDGE , UP TO CHASSIS 020 006275 024 006572 028 006896 032,033 002790, Replaced By: A1167270951
999
LEDGE , UP TO CHASSIS 020 006275 024 006572 028 006896 032,033 002790, Replaced By: A1167270951
999
GARNISH MOULDING LEFT
999
GARNISH MOULDING FRONT LEFT
999
GARNISH MOULDING LEFT
999
GARNISH MOULDING TOP LEFT
999
KNOB , Replaced By: A1107600565
999
ESCUTCHEON LEFT
999
REPAIR KIT , Replaced By: A1167300014
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW COVER PLATE TO BRACKET
999
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
999
SCREW
999
WASHER , Replaced By: N009021006208
