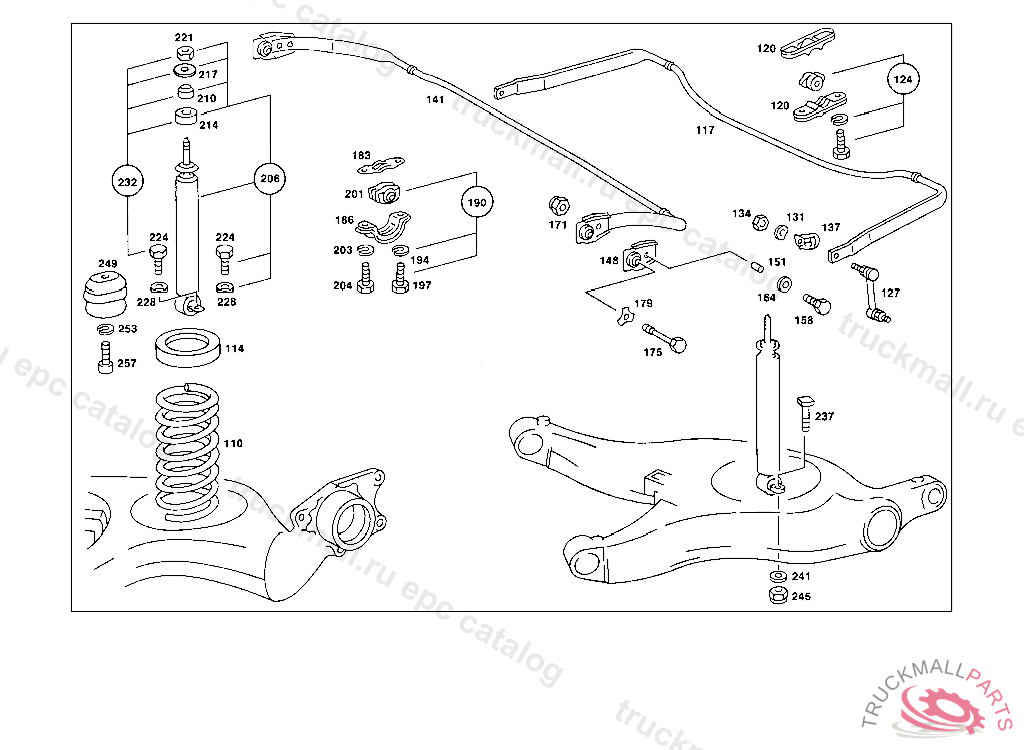

Поз.
Артикул
Описание
110
REAR SPRING
114
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 3(19 MM)
114
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 1(9,5 MM)
114
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 2(14 MM)
141
TORSION BAR REAR
148
SHACKLE
151
SCREW
151
CLAMPING SLEEVE , Replaced By: N000000000999
151
CLAMPING SLEEVE SHACKLE TO TORSION BAR
158
SCREW , Replaced By: N304017008034
158
SCREW BRACKET TO CROSS CONNECTION STRUT
158
SCREW OIL LINE TO CRANKCASE
164
WASHER , Replaced By: N000125008443
164
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
164
WASHER EXHAUST MUFFLER TO STRAP
171
NUT OIL TANK TO BRACKET
171
NUT SWITCH TO FLOOR PLATE
171
NUT , Replaced By: N913002006009
175
SCREW , Replaced By: A1079900119
175
SCREW
179
WASHER TORSION BAR TO REAR AXLE
183
CLAMP TOP
186
CLAMP
190
REPAIR KIT TORSION BAR,REAR
194
LOCK WASHER FITTING TO BRACKET
197
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
206
SHOCK ABSORBER REAR
206
SHOCK ABSORBER RANGE OF DELIVERY, ONLY REPLACEABLE BY PAIRS
210
RUBBER BUFFER
214
RUBBER BUFFER SHOCK ABSORBER TO FRAME
217
WASHER , Replaced By: A2023260076
217
WASHER REAR SHOCK ABSORBERS
221
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
221
NUT , Replaced By: N308673010000
232
REPAIR KIT , Replaced By: A1159900099
232
ATTACHMENT SHOCK ABSORBER MOUNTING,REAR
237
SCREW
241
WASHER
245
NUT AIR CLEANER ELEMENT
249
RUBBER BUFFER
253
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
257
SCREW SPRING STOP
257
SCREW , Replaced By: N000912008219
257
SCREW , Replaced By: N000912008200
999
RUBBER MOUNTING TORSION BAR TO FRAME
999
SHOCK ABSORBER , UP TO CHASSIS 020 045477 024,025 045746 028,029 027873 032,033 039762, Replaced By: A1163200030, +001A1153230767
999
SHACKLE , 024 006057 044 017726, Replaced By: A1163200437, +004N000125008417, +002N000933008115, +001N007346011005, +002N913002008001
