Mercedes N304017006016 - Винт M 6 X 16 8.8

450 SEL 6,9 USA 116.036

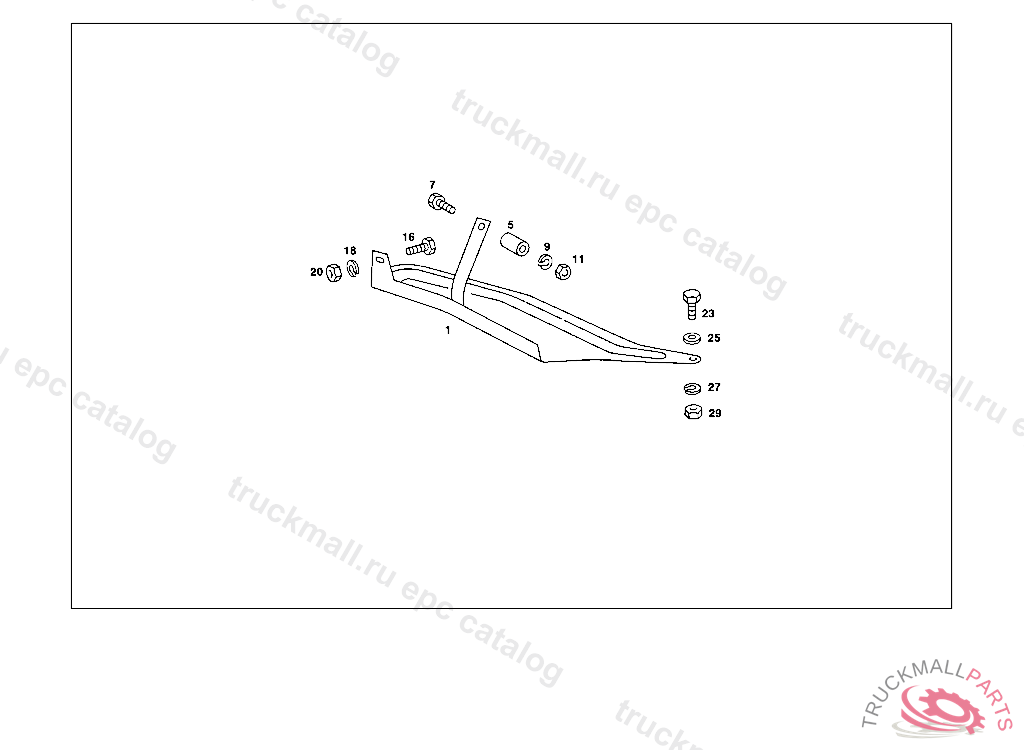

32 SPRINGS AND SUSPENSION - 001 SPRINGS AND SUSPENSION IL. 6

Поз.
Артикул
Описание
1
A1165200342
PROTECTIVE PLATE
5
A1165240053
SPACER TUBE
7
N304014008001
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
7
N304014008004
SCREW , Replaced By: N304014008001
9
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
11
N000934008013
NUT
16
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
18
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
N000934008013
NUT
23
N000933006102
SCREW COVER PLATE TO BRACKET
23
N304017006016
SCREW PUMP TO BRACKET
25
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
27
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
29
N304032006008
NUT BATTERY MOUNTING
