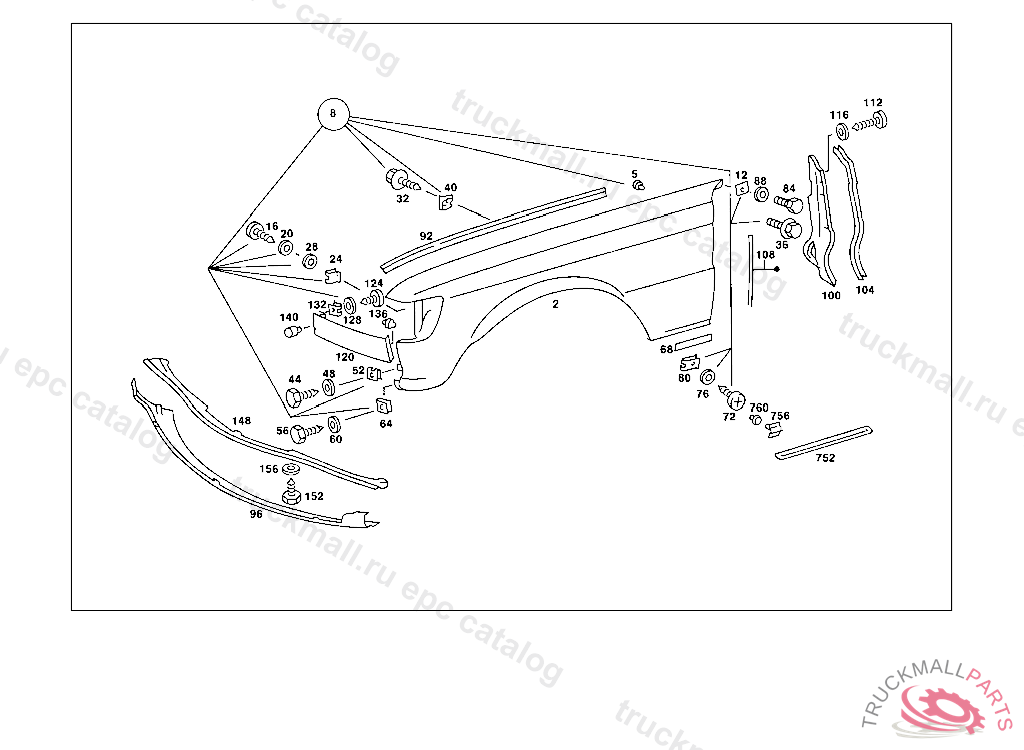

Поз.
Артикул
Описание
2
FRONT FENDER LEFT
5
RUBBER BUFFER
5
RUBBER BUFFER , Replaced By: A1269870139
8
REPAIR KIT , Replaced By: A1268800697
8
REPAIR KIT , Replaced By: A1168800197
8
SEAL FRONT FENDER, FROM CHASSIS: 020 061498 024,025 058878 028,029 032405 032,033 047009 036 000511
12
PAD TOP LEFT
16
SHEET METAL SCREW MODULE TO HOUSING
16
SHEET METAL SCREW , Replaced By: N000000000453
20
WASHER , Replaced By: N009021005205
20
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
24
LOCK FUEL LINE
24
LOCK , Replaced By: A1409941045
28
RUBBER RING SIGNAL LAMP TO ROOF
32
SCREW FRONT FENDER TO FRONT PANEL PILLAR
36
SCREW FRONT FENDER TO FRONT PANEL PILLAR
40
LOCK , FROM CHASSIS: 020 061498 024,025 058878 028,029 032405 032,033 047009 036 000511
44
SHEET METAL SCREW
48
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
48
WASHER , Replaced By: N009021005205
52
LOCK , Replaced By: A1269941345
52
LOCK INSTRUMENT PANEL TO COWL
56
SHEET METAL SCREW
60
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
60
WASHER , Replaced By: N009021005205
64
LOCK , Replaced By: A1269941345
64
LOCK INSTRUMENT PANEL TO COWL
68
PAD 2 MM
72
SHEET METAL SCREW CONTROL UNIT TO CAB B 5.5X19
76
WASHER BRACKET TO HEAT SHIELD
80
LOCK
84
SCREW PUMP TO BRACKET
84
SCREW COVER PLATE TO BRACKET
88
WASHER
92
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
96
LOWER PART
100
PARTITION PANEL LEFT
104
SEAL 770 MM ORDER BY THE METER
108
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
112
SHEET METAL SCREW BRACKET TO WINDOW SILL
116
WASHER COMPRESSED AIR LINE TO BRACKET
116
WASHER , Replaced By: N009021006208
120
PANELLING LEFT, BELOW LIGHTING UNIT, TO BE ADAPTED DURING ASSEMBLY
124
SHEET METAL SCREW BRACKET TO CAB FLOOR
128
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
128
WASHER , Replaced By: N009021005205
132
LOCK INSTRUMENT PANEL TO PANELLING
136
CLIP
148
PANELLING
152
SHEET METAL SCREW
156
WASHER BRACKET TO SUPPORT
156
WASHER , Replaced By: N000125004319
752
GARNISH MOULDING LEFT
756
FASTENER BUTTON
760
FASTENER BUTTON
760
FASTENER BUTTON. GROMMET , Replaced By: A0019882081
760
FASTENER BUTTON , Replaced By: A0089970381
760
GROMMET , Replaced By: A0019882081
999
ADHESIVE TAPE , Replaced By: A0019875646
999
LOCK
999
LOCK GRILLE TO RADIATOR GRILLE SHELL,TOP LATERAL
999
CLIP , Replaced By: A0019942745
999
CLIP , Replaced By: A0019942745
999
REPAIR KIT , Replaced By: A1155860288
999
STOP SCREW , Replaced By: A2019880211
999
ENGINE HOOD CATCH , Replaced By: A1158800160
999
REPAIR KIT , Replaced By: A1158800160
999
GARNISH MOULDING , 100001
999
REPAIR KIT , Replaced By: A1268800597
999
REPAIR KIT , Replaced By: A1165860788
999
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 060174 024,025 057819 028,029 032088 032,033 046525 036 000442, Replaced By: A1165860888
999
REPAIR KIT , Replaced By: A1165860888
999
SEAL FRONT FENDER, UP TO CHASSIS: 020 061497 024,025 058877 028,029 032404 032,033 047008 036 000510
999
FRONT FENDER RIGHT
999
FRONT BUMPER FACE BAR RIGHT
999
SUPPORT RIGHT
999
GARNISH MOULDING RIGHT
999
ENGINE HOOD STEEL
999
SAFETY HOOK RIGHT
999
REAR BUMPER FACE BAR REAR RIGHT
999
FRONT BUMPER FACE BAR RIGHT
999
REAR BUMPER FACE BAR REAR RIGHT
999
GARNISH MOULDING RIGHT FRONT
999
PAD TOP RIGHT
999
GARNISH MOULDING RIGHT LATERAL
999
PARTITION PANEL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 049530 024,025 049669 028,029 028836 032,033 041548 036 000011, Replaced By: A1168840535
999
PARTITION PANEL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 049530 024,025 049669 028,029 028836 032,033 041548 036 000011, Replaced By: A1168840635
999
PARTITION PANEL RIGHT
999
PANELLING RIGHT, BELOW LIGHTING UNIT, TO BE ADAPTED DURING ASSEMBLY
999
BUMPER JOINT COVER LATERAL RIGHT
999
BRACKET INSIDE RIGHT
999
BRACKET OUTSIDE RIGHT
999
BRACKET OUTSIDE LATERAL RIGHT
999
LEVER , Replaced By: A1168870474
999
LEVER RIGHT
999
GRILLE RIGHT
999
RADIATOR GRILLE SHELL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 020 011953-043454 024,025 013314-043534 028,029 013181-027251 032,033 010271-038844 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 036 000008, Replaced By: A1168880515
999
REPAIR KIT , Replaced By: A1168800097
