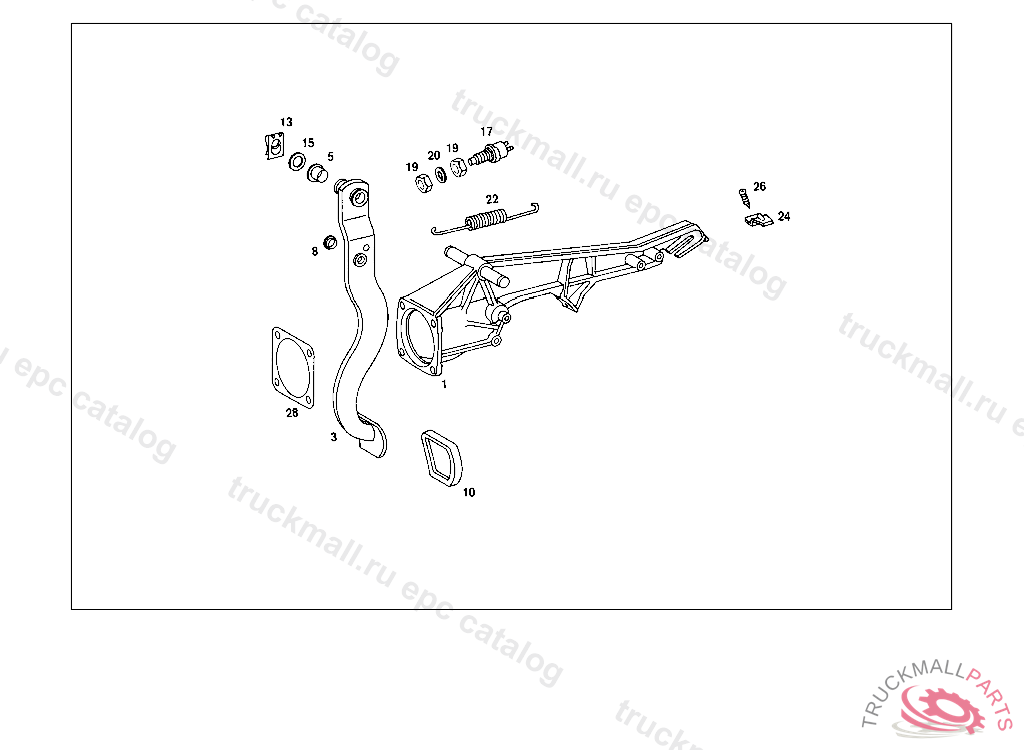

Поз.
Артикул
Описание
1
BEARING BRACKET , FROM CHASSIS: 024 136352 033 090506 036 005863 120 007854
3
PEDAL
3
PEDAL , Replaced By: A1072902218, +001A1262920174
5
BUSHING , Replaced By: A1242920050
5
BUSHING BRAKE PEDAL
8
BUSHING
10
PAD BRAKE PEDAL
13
LOCK AT WATER EXPANSION TANK
15
WASHER PEDALS TO PIVOT PINS
17
SWITCH STOP LIGHT
19
NUT SWITCH
20
TOOTHED WASHER , 027703
22
SPRING
24
BRACKET
26
SHEET METAL SCREW BRACKET TO CAB FLOOR
28
GASKET
999
PAD , Replaced By: A1232910082
999
BEARING , UP TO CHASSIS: 020 114551 024,025 136351 028,029 051400 032,033 090505 036 005862, Replaced By: A1072901631, +002N000471016001
999
BEARING , Replaced By: A1072900119, +001A1232910186, +001A1249931310
999
BUSHING
999
SPRING , Replaced By: A1079930410
999
LOCK RING , Replaced By: A0079942041
