Mercedes A1165200342 - Деталь PROTECTION P

450 SEL 6,9 USA 116.036

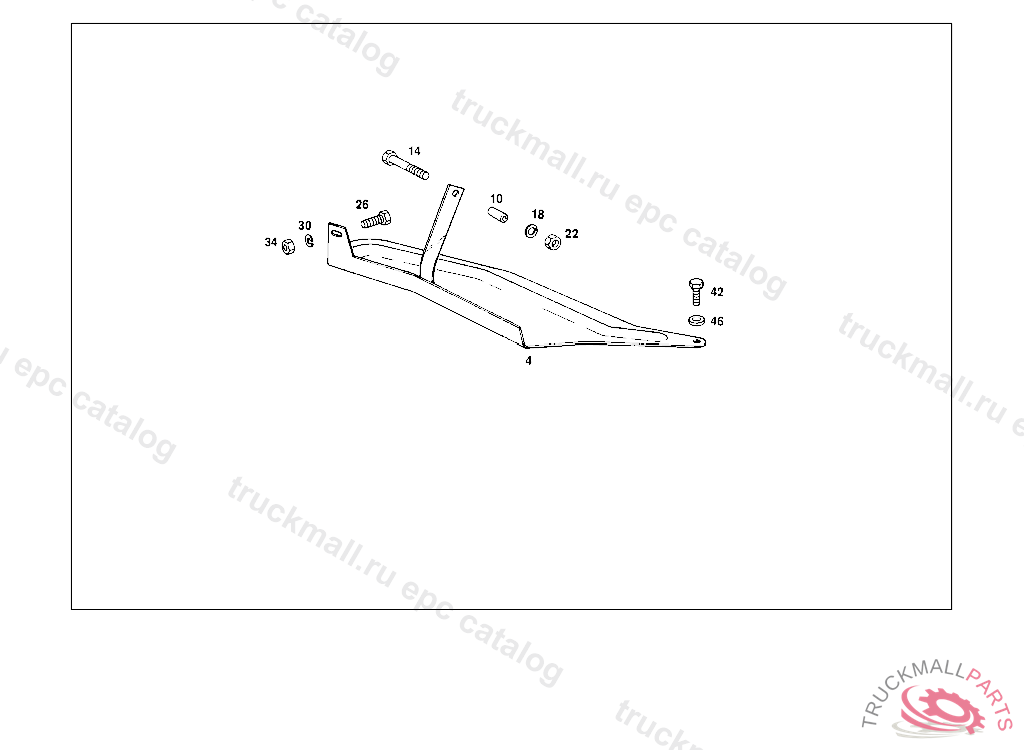

52 UNDERSHIELDS - 001 SHEET METAL,AIR INTAKE

Поз.
Артикул
Описание
4
A1165200342
PROTECTIVE PLATE
10
A1165240053
SPACER TUBE
14
N000931008190
SCREW
18
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
22
N000934008013
NUT
26
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
30
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
34
N000934008013
NUT
42
N304017006016
SCREW PUMP TO BRACKET
42
N000933006175
SCREW BRACKET TO BEARING BRACKET M 6X16
46
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
46
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
999
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
999
N304032006008
NUT BATTERY MOUNTING
999
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
