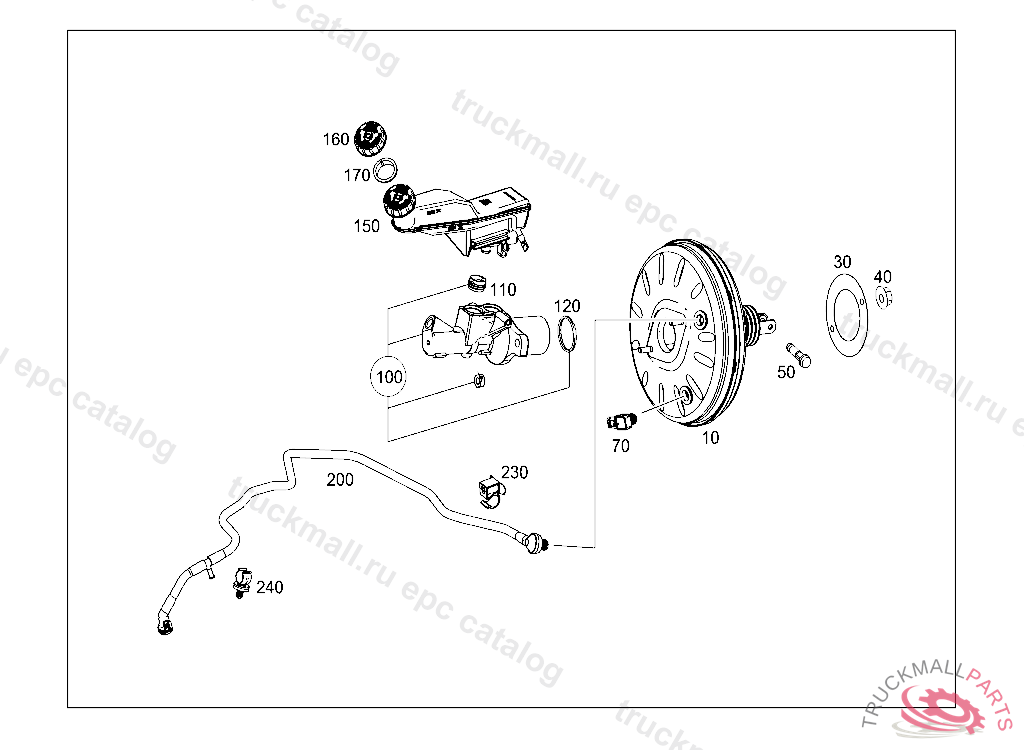

Поз.
Артикул
Описание
10
TS BRAKE BOOSTER
30
CIRCUMFERENTIAL GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
40
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
50
PIN BRAKE UNIT TO PEDAL ASSEMBLY
70
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
100
TS MASTER BRAKE CYLINDER PARTS KIT
100
TS MASTER BRAKE CYLINDER PARTS KIT
110
FEED-THROUGH GROMMET EXPANSION RESERVOIR TO MASTER CYLINDER
120
SEAL RING
150
EXPANSION RESERVOIR
150
EXPANSION RESERVOIR
160
COVER
170
STRAINER BRAKE FLUID RESERVOIR
200
VACUUM LINE BRAKE BOOSTER TO VACUUM PUMP OR TO INTAKE MANIFOLD
200
VACUUM LINE BRAKE BOOSTER TO VACUUM PUMP OR TO INTAKE MANIFOLD
200
VACUUM LINE BRAKE BOOSTER TO VACUUM PUMP OR TO INTAKE MANIFOLD
200
VACUUM LINE BRAKE BOOSTER TO VACUUM PUMP OR TO INTAKE MANIFOLD
230
LINE HOLDER VACUUM LINE
240
LINE HOLDER VACUUM LINE
