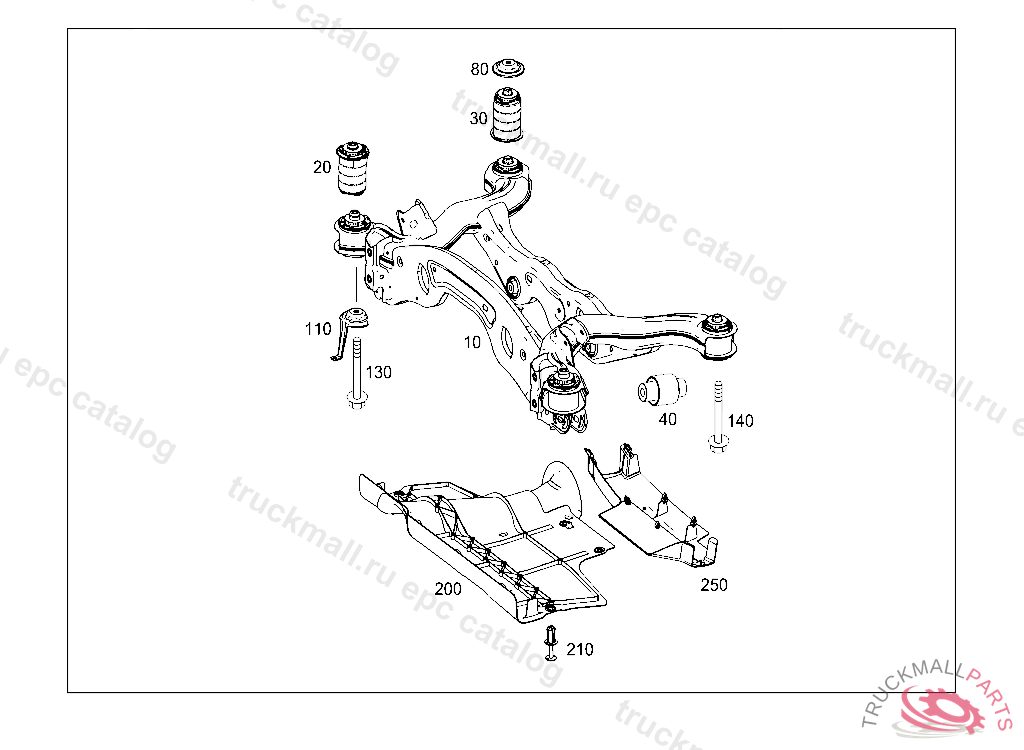

Mercedes A2463510300 - ОПОРА ПОДРАМНИКА
CLA 220 CDI 117.303
35 REAR AXLE - 045 REAR SUBFRAME
Поз.
Артикул
Описание
10
A2463501408
AXLE SUBFRAME
20
A2463510300
SSP. SUBFRAME CARRIER FRONT
30
A2463510400
SSP. SUBFRAME CARRIER REAR
40
A2463520100
SPRING CONTROL ARM SSP. LEFT AND RIGHT
80
A2463520146
STOP PLATE
110
A2463520039
STOP PLATE LEFT AND RIGHT FRONT
130
A0019901103
COMBINATION BOLT REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT
140
A0019901103
COMBINATION BOLT REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT
200
A2463520491
COVER REAR SUBFRAME
200
A2463520391
COVER REAR SUBFRAME
210
A0009919440
EXPANSION RIVET FASTENING FOR LINING
250
A2463520291
COVER RIGHT SPRING CONTROL ARM
250
A2463520191
COVER LEFT SPRING CONTROL ARM
