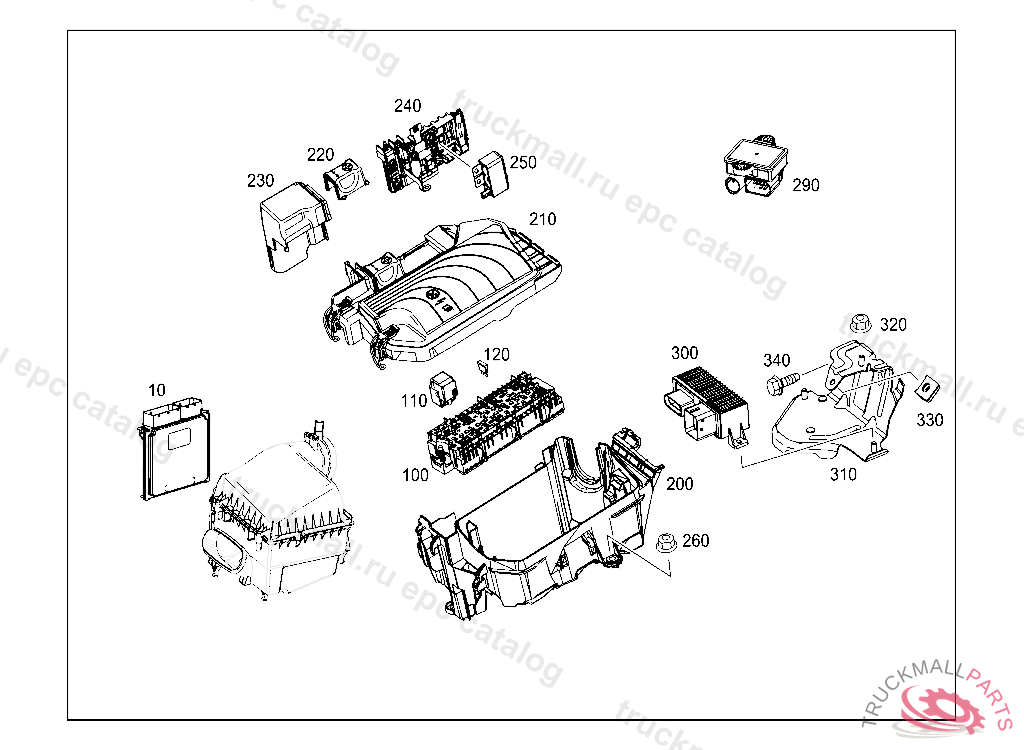

Поз.
Артикул
Описание
10
CONTROL UNIT ENGINE CONTROL MODULE, N 20140305 THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
10
CONTROL UNIT ENGINE CONTROL MODULE, THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
10
CONTROL UNIT ENGINE CONTROL MODULE, THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
100
RELAY UNIT
110
RELAY SLOT O
110
RELAY SLOT Q
110
RELAY SLOT R
110
CONTACTOR FUEL PUMP
110
RELAY SLOT D
110
RELAY SLOT R
110
RELAY HEADLAMP WIPER/WASHER
110
RELAY SLOT L
110
RELAY SLOT L
110
RELAY SLOT Q
110
RELAY SLOT J
110
RELAY SLOT K
110
RELAY PLUG POSITION C
110
RELAY SLOT O
110
RELAY PLUG POSITION C
110
RELAY SLOT J
120
FUSE LINKC-15A-S
120
FUSE LINKC-25A-S
120
FUSE LINKC-5A-S
120
FUSE LINKC-7,5A-S
120
FUSE LINK30 A
120
FUSE LINK YELLOW 20A
120
FUSE LINKE-40A-S
120
FUSE LINKC-10A-S
200
EQUIPMENT BOX ENGINE COMPARTMENT
210
COVER EQUIPMENT BOX APPARATUS CASE
220
COVER JUMP-STARTING POINT
230
COVER PREFUSE BOX
240
FUSE BOX PREFUSE BOX
250
RELAY BATTERY DECOUPLING
260
NUT MOUNTING, EQUIPMENT BOX
