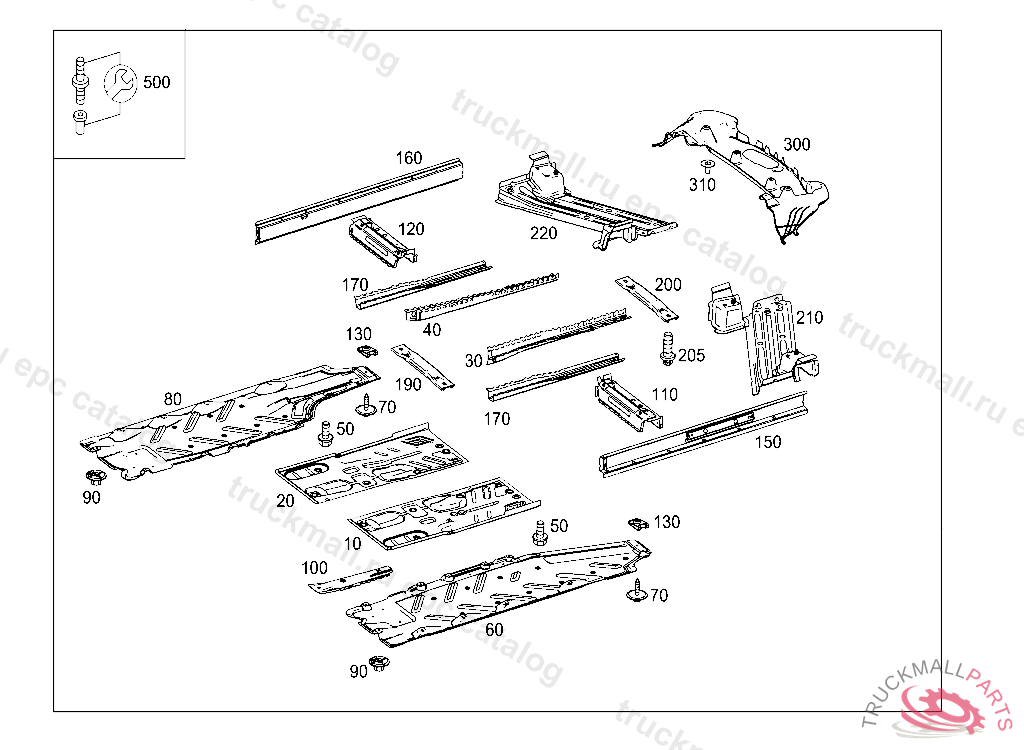

Поз.
Артикул
Описание
10
MAIN FLOOR LEFT
10
MAIN FLOOR LEFT, Replaced By: A2466100700
20
MAIN FLOOR RIGHT, Replaced By: A2466100800
20
MAIN FLOOR RIGHT
30
REINFORCEMENT BOTTOM LEFT
40
REINFORCEMENT BOTTOM RIGHT
50
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
60
COVER FLOOR,LEFT
70
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
80
COVER MAIN FLOOR,ON THE RIGHT
90
PLASTIC NUT. NUT
100
CONNECTING CARRIER INSIDE
110
CROSSMEMBER REAR SEAT FRONT LEFT
120
CROSSMEMBER REAR SEAT FRONT RIGHT
130
LOCK NUT. LOCK
150
LONGITUDINAL MEMBER INSIDE LEFT
160
LONGITUDINAL MEMBER INSIDE RIGHT
170
LONGITUDINAL MEMBER MAIN FLOOR
190
STIFFENING TUNNEL,RIGHT
190
STIFFENING TUNNEL,RIGHT
200
STIFFENING TUNNEL,RIGHT
200
STIFFENING TUNNEL,LEFT
200
STIFFENING TUNNEL,LEFT
205
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
210
CROSSMEMBER REAR SEAT REAR LEFT
220
CROSSMEMBER REAR SEAT REAR RIGHT
300
COVER SUBSTRUCTURE REAR
310
HEXAGON NUT W COLLAR BRACKET MOUNTING
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
