Mercedes
›
CAR
›
CLA 180 CDI
›
117.312
›
47 FUEL SYSTEM
›

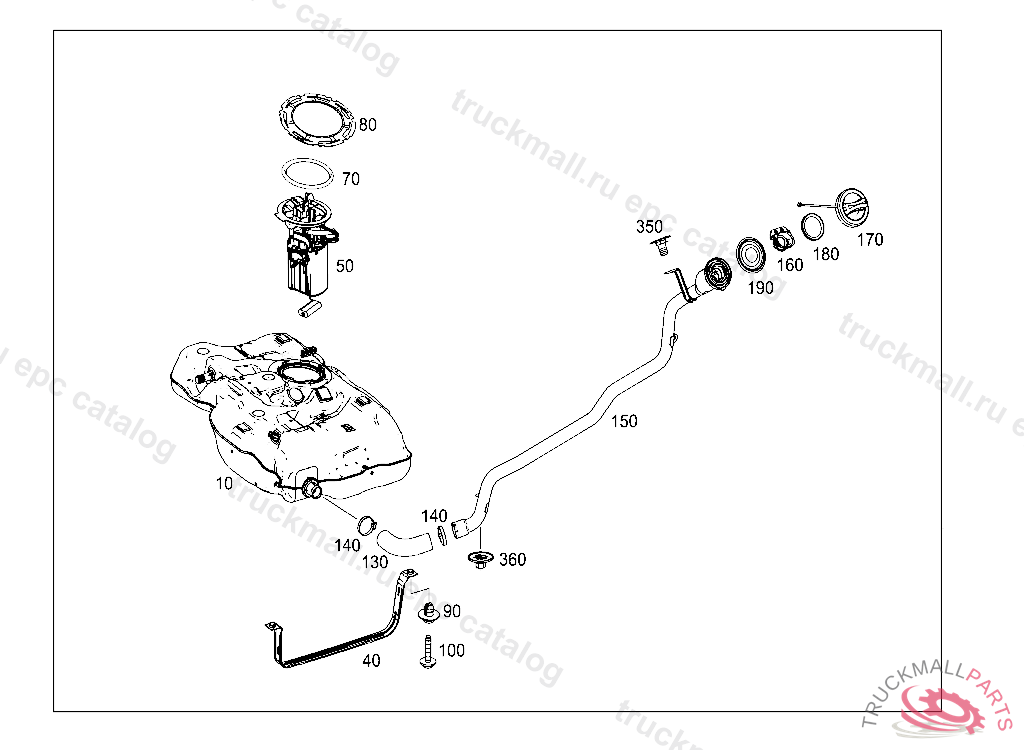

015 FUEL TANK WITH ATTACHMENT PARTS
Mercedes A2464701620 - ЗАЛИВНАЯ ГОРЛОВИНА
CLA 180 CDI 117.312
47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS
Поз.
Артикул
Описание
10
A2464702201
FUEL TANK
10
A2464703301
FUEL TANK
40
A2464700440
RETAINING STRAP TANK TO BODY AT RIGHT
40
A2464700340
RETAINING STRAP TANK AT BODY AT LEFT
50
A2464701494
FUEL DELIVERY MODULE
70
A0259971845
O-RING PUMP TO RESERVOIR 135.5X6
80
A2464710030
BAYONET TYPE CAP PUMP TO RESERVOIR
90
A2464710041
BRACKET SHIELD TO FUEL TANK
100
N304017008018
SCREW SUPPORT TO FENDER
130
A2464760075
FUEL HOSE FILLER NECK TO FUEL TANK
140
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
150
A2464701620
FILLER NECK
160
A2464700129
GUIDE FUNNEL F NECK TO FILLER NECK
170
A2224700105
FILLER CAP
180
A1684710679
SEAL RING FILLER CAP TO FILLER NECK
180
A1684710479
SEAL RING FILLER CAP
190
A2464710181
SEALING SLEEVE FILLER NECK TO BODY
350
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
360
A0009903162
NUT FILLER PIPE TO FRAME
