Mercedes
CAR
CLA 200
117.343
92 REAR SEAT BENCH
022 REAR FOLDING BACKREST

Mercedes A0099907604 - Болт

CLA 200 117.343

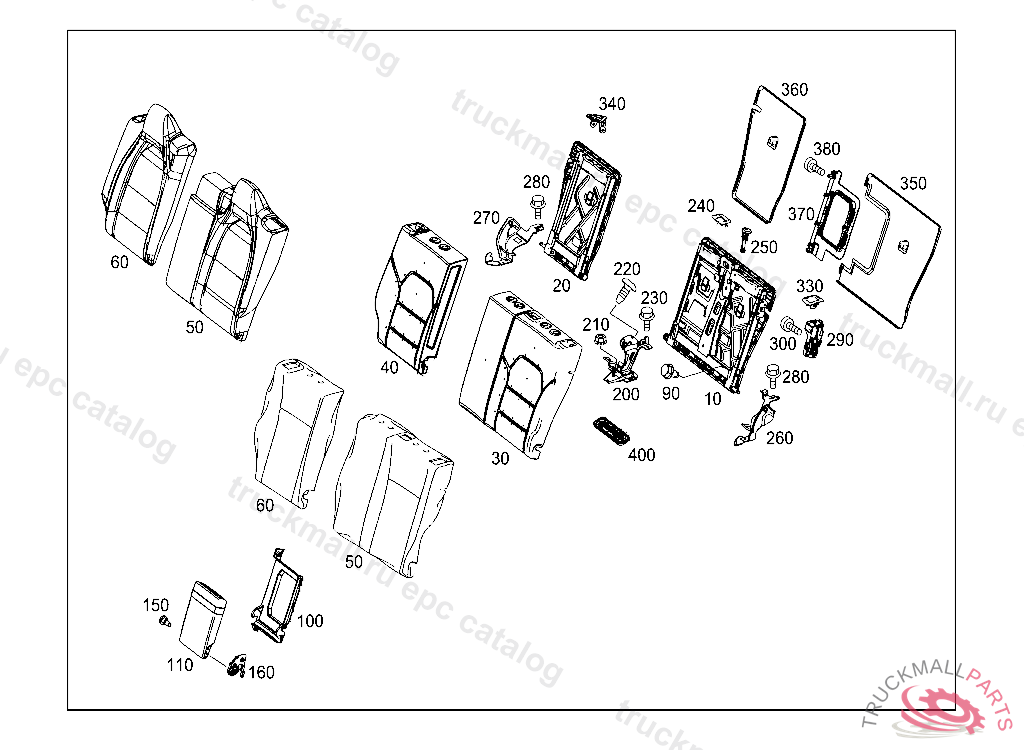

92 REAR SEAT BENCH - 022 REAR FOLDING BACKREST

Поз.
Артикул
Описание
10
A1769200132
BACKREST FRAME LEFT
10
A2469200334
BACKREST FRAME LEFT
10
A1769200032
BACKREST FRAME LEFT
10
A2469200500
BACKREST FRAME LEFT
10
A2469200032
BACKREST FRAME LEFT
10
A1769200332
BACKREST FRAME LEFT
20
A2469200434
BACKREST FRAME RIGHT
30
A1769200901
PAD REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404
30
A1769201101
PAD REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404
30
A1769201301
PAD REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404
30
A1769201501
PAD REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404
40
A1769207200
PAD REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404
40
A1769207400
PAD REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404
50
A1179202700
COVER REAR SEAT BACKREST LEFT
50
A1769203101
COVER REAR SEAT BACKREST LEFT
50
A1769204501
COVER REAR SEAT BACKREST LEFT
50
A1179202900
COVER REAR SEAT BACKREST LEFT
50
A1769205901
COVER REAR SEAT BACKREST LEFT
50
A1769204301
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
50
A1179202500
COVER REAR SEAT BACKREST LEFT
50
A1769206301
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
50
A1179202300
COVER REAR SEAT BACKREST LEFT
50
A1179202100
COVER REAR SEAT BACKREST LEFT
50
A1769202301
COVER REAR SEAT BACKREST LEFT
50
A1179203500
COVER REAR SEAT BACKREST LEFT
50
A1769203901
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
50
A1769202501
COVER REAR SEAT BACKREST LEFT
50
A1179203300
COVER REAR SEAT BACKREST LEFT
50
A1769203301
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
50
A1179201300
COVER REAR SEAT BACKREST LEFT
50
A1769206101
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
50
A1769204701
COVER REAR SEAT BACKREST LEFT
50
A1769203501
COVER REAR SEAT BACKREST LEFT
50
A1179201900
COVER REAR SEAT BACKREST LEFT
50
A1769202101
COVER REAR SEAT BACKREST LEFT
50
A1769205701
COVER REAR SEAT BACKREST LEFT
50
A1769205501
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
50
A1769204100
COVER REAR SEAT BACKREST LEFT
50
A1179201500
COVER REAR SEAT BACKREST LEFT
50
A1179201700
COVER REAR SEAT BACKREST LEFT
50
A1769202901
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
50
A1769205301
COVER REAR SEAT BACKREST LEFT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
50
A1179203100
COVER REAR SEAT BACKREST LEFT
60
A1179200800
COVER REAR SEAT BACKREST RIGHT
60
A1769209000
COVER REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
60
A1769208600
COVER REAR SEAT BACKREST RIGHT
60
A1179200200
COVER REAR SEAT BACKREST RIGHT
60
A1179200400
COVER REAR SEAT BACKREST RIGHT
60
A1769209200
COVER REAR SEAT BACKREST RIGHT
60
A1179200000
COVER REAR SEAT BACKREST RIGHT
60
A1769208200
COVER REAR SEAT BACKREST RIGHT
60
A1769208400
COVER REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
60
A1769208000
COVER REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404 9G60 651A QFT246A2110 BLACK
60
A1769209600
COVER REAR SEAT BACKREST RIGHT, J 20130122 V 00000120130404 9J43 811A QFT246A2120 BLACK/RED
60
A1769200401
COVER REAR SEAT BACKREST RIGHT
60
A1179200600
COVER REAR SEAT BACKREST RIGHT
60
A1179201000
COVER REAR SEAT BACKREST RIGHT
60
A1769207600
COVER REAR SEAT BACKREST RIGHT
90
N000000000300
HEXALOBULAR BOLT BRACKET TO REAR AXLE M10X16
100
A2469230400
COVER CUT-OUT FOR ARMREST, 9051QFT246A2300 BLACK
110
A2469700430
FOLDING ARMREST REAR SEAT BENCH
110
A2469700330
FOLDING ARMREST REAR SEAT BENCH
150
A0009917716
BEARING BOLT ARMREST ATTACHMENT
160
A2469730246
NOTCHED ELEMENT RIGHT
160
A2469730146
NOTCHED ELEMENT LEFT
200
A1769200324
PIVOT BEARING REAR BACKREST MIDDLE
210
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
220
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
230
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
240
A2469230300
COVER BELT OUTLET
240
A1769230021
COVER BELT OUTLET
250
A2469700441
GUIDE FOR HEADREST LEFT REAR SEAT HEAD RESTRAINT, INSIDE
250
A2469700241
GUIDE FOR HEADREST RIGHT REAR SEAT HEAD RESTR., OUTSIDE
260
A1769200124
PIVOT BEARING OUTSIDE LEFT
270
A1769200224
PIVOT BEARING OUTSIDE RIGHT
280
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
290
A1769209400
LOCK FOR SEAT BACKREST REAR RIGHT, J 20130122 V 00000120130404
290
A1769209300
LOCK FOR SEAT BACKREST LEFT BRACKET, J 20130122 V 00000120130404
300
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
300
A0099907604
BOLT UNLOCKING MECHANISM TO FRAME M8X50
330
A1769230500
COVER REAR LEFT
330
A1769230600
COVER REAR RIGHT
330
A1769230700
COVER REAR LEFT
330
A1769230800
COVER REAR RIGHT
340
A1769200100
RETAINING CLIP LOCK RIGHT
340
A1769200000
RETAINING CLIP LOCK LEFT
350
A2469240300
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
350
A2469240100
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
350
A1179240300
COVER REAR BACKREST LEFT, 9E83QFT117A2400 BLACK
350
A1179240100
COVER REAR BACKREST LEFT, 9E83QFT117A2400 BLACK
360
A1179240000
COVER REAR BACKREST RIGHT, 9E83QFT117A2400 BLACK
370
A2469700029
FLAP ARMREST , 9051QFT246A2300 BLACK
380
N000000004778
SCREW PLATE AT HANDLE, J 47509420000815
380
N000000001527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
400
A1769230200
COVER, BACKREST FRAME RIGHT BACKREST, OUTER
