Главная
›
Mercedes
›
CAR
›
CLA 250 4-MATIC
›
117.346
›
47 FUEL SYSTEM
›
015 FUEL TANK WITH ATTACHMENT PARTS
Mercedes A2464700240 - Натяжной ремень

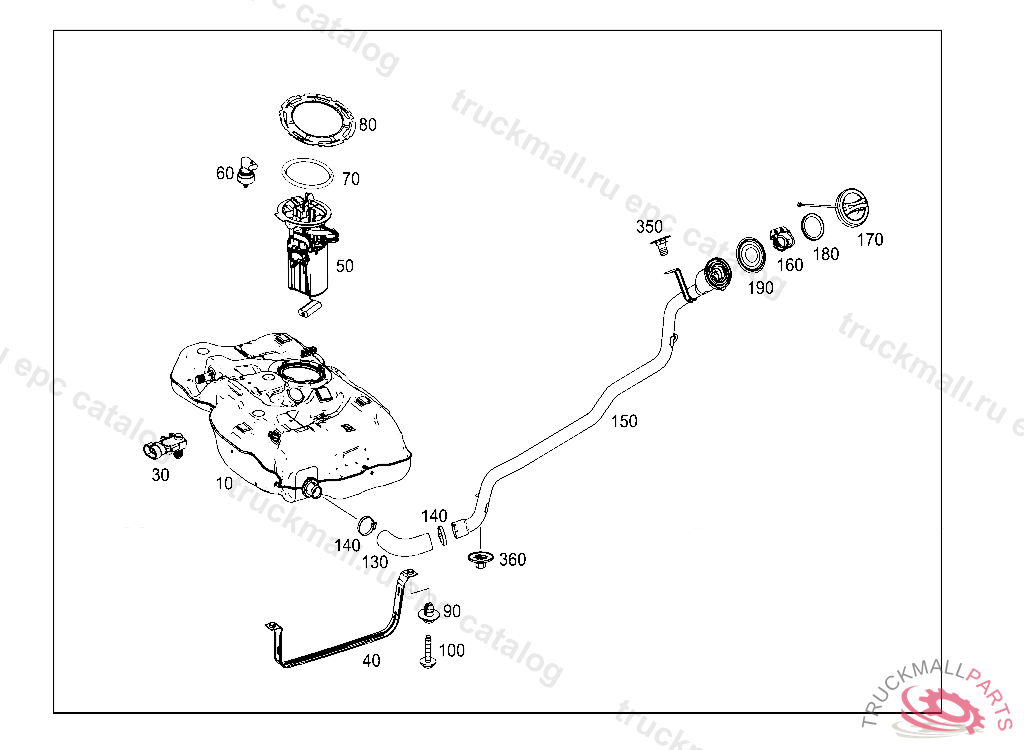

CLA 250 4-MATIC 117.346
47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS
Поз.
Артикул
Описание
10
A2464704801
FUEL TANK
10
A2464702101
FUEL TANK
10
A2464701500
FUEL TANK
10
A2464704701
FUEL TANK
30
A1635422818
PRESSURE SENSOR
40
A2464700240
RETAINING STRAP TANK AT BODY AT LEFT
50
A2464701294
FUEL DELIVERY MODULE
50
A2464701194
FUEL DELIVERY MODULE
50
A2464700994
FUEL DELIVERY MODULE
50
A2464701694
FUEL DELIVERY MODULE
60
A0009051100
PRESSURE SENSOR
70
A0259971845
O-RING PUMP TO RESERVOIR 135.5X6
80
A2464710030
BAYONET TYPE CAP PUMP TO RESERVOIR
90
A2464710041
BRACKET SHIELD TO FUEL TANK
100
N304017008018
SCREW SUPPORT TO FENDER
130
A2464760075
FUEL HOSE FILLER NECK TO FUEL TANK
140
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
150
A2464700420
FILLER NECK
160
A2464700029
GUIDE FUNNEL F NECK TO FILLER NECK
160
A2464700229
GUIDE FUNNEL F NECK TO FILLER NECK
170
A2224700005
FILLER CAP
170
A1174700005
FILLER CAP
170
A2224700205
FILLER CAP
180
A1684710679
SEAL RING FILLER CAP TO FILLER NECK
180
A1684710479
SEAL RING FILLER CAP
190
A2464710181
SEALING SLEEVE FILLER NECK TO BODY
350
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
360
A0009903162
NUT FILLER PIPE TO FRAME
